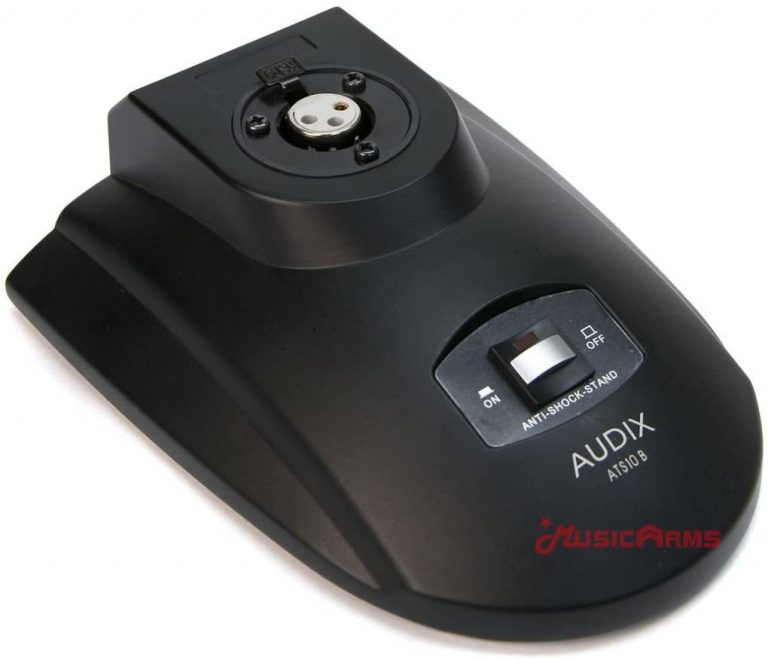

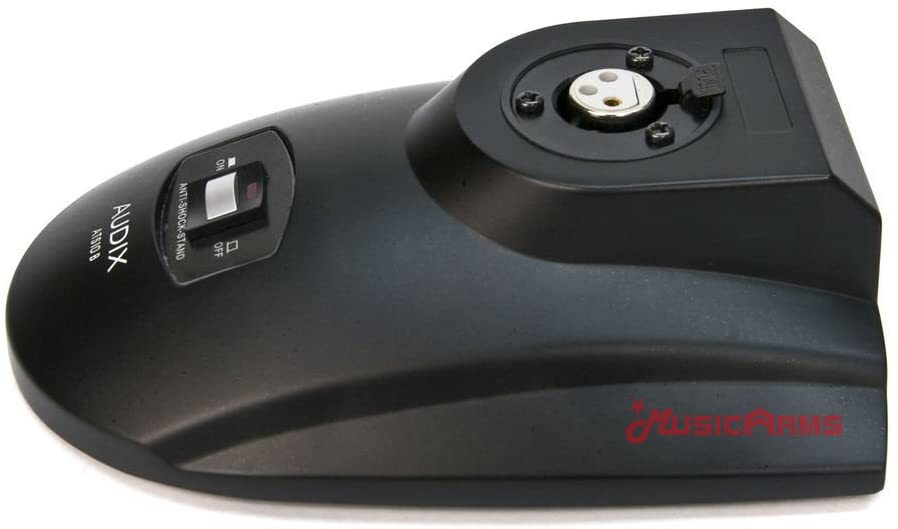

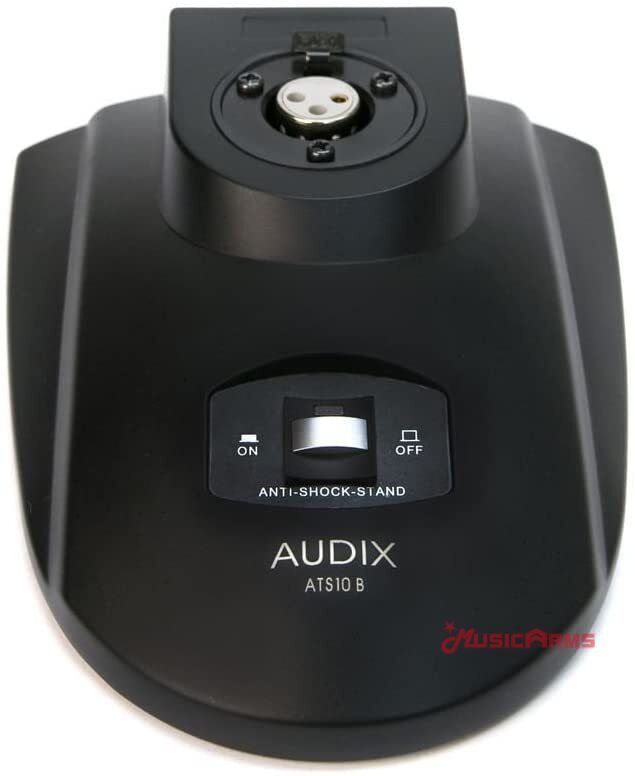

AUDIX ATS10

About Audix ATS-10

The ATS 10 is designed for use with dynamic gooseneck microphones or phantom powered gooseneck condenser microphones such as the Audix ADX series, MG series and MGN series. The ATS 10 table stand features a heavy duty die cast base, noise free on-off switch, LED indicator and standard XLR connectors for input and output. Designed for durability, stability and high performance, the ATS 10 will bring an element of professionalism to any audio or A/V installation. Applications for the ATS 10 include conferencing, podium, lectern, classroom, courtroom, boardroom and House of Worship.

Audix ATS-10 Features

• Simple to operate
• Heavy Duty die cast metal base for gooseneck style
• Noise free on-off switch with LED indicator
• Operates on 11 – 52 volts phantom power for condenser
• Standard 3-pin XLR-type connector for microphone
• Non reflective black matte finish

• ConstructionSteel
• On-Off SwitchNoise free mechanical
• push-on/push-off
• CompatibilityADX Series/MG Series/MGN Series Microphones
• Input connector3-pin XLRF-type
• Output connector3-pin XLRM-type
• Off (mute) attenuation45 dB minimum
• Phantom power requirements11-52V DC, 2 mA
• Dimensions6.9 x 5.9 x 1.8″ / 17.52 x 14.98 x 4.57cm
• Weight3lbs / 1.36kg

รายละเอียด AUDIX ATS10

• ทำจากโลหะสตีล
• สวิตช์เปิด – ปิด
• ใช้งานกับไมโครโฟน ADX Series / MG Series / MGN Series
• ขั้วต่ออินพุตชนิด XLRF 3 ขา
• ขั้วต่อเอาต์พุตชนิด XLRM 3 ขา
• การลดทอนขั้นต่ำ 45 dB
• ความต้องการพลังงาน Phantom 11-52V DC, 2 mA
• ขนาด 6.9 x 5.9 x 1.8 “/ 17.52 x 14.98 x 4.57 ซม
• น้ำหนัก 3lbs / 1.36kg
