Audiocenter MA-118

Audiocenter MA118

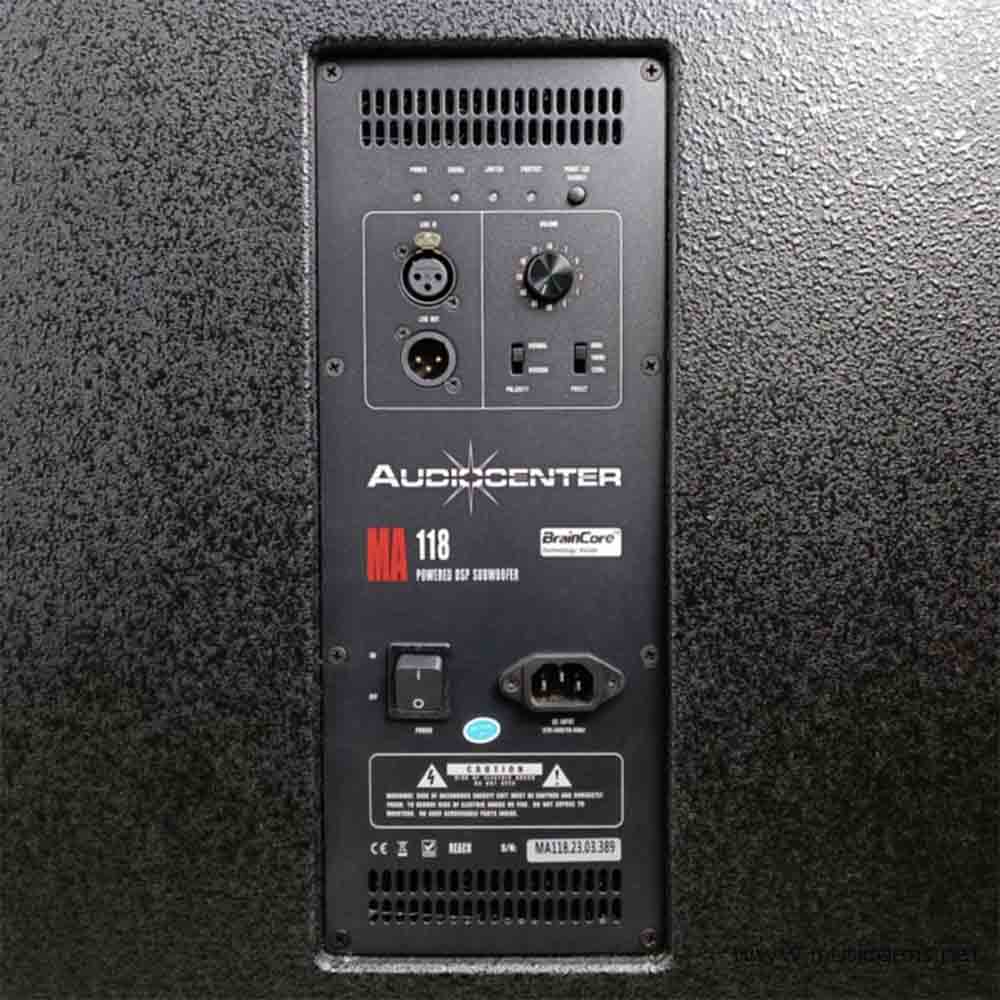

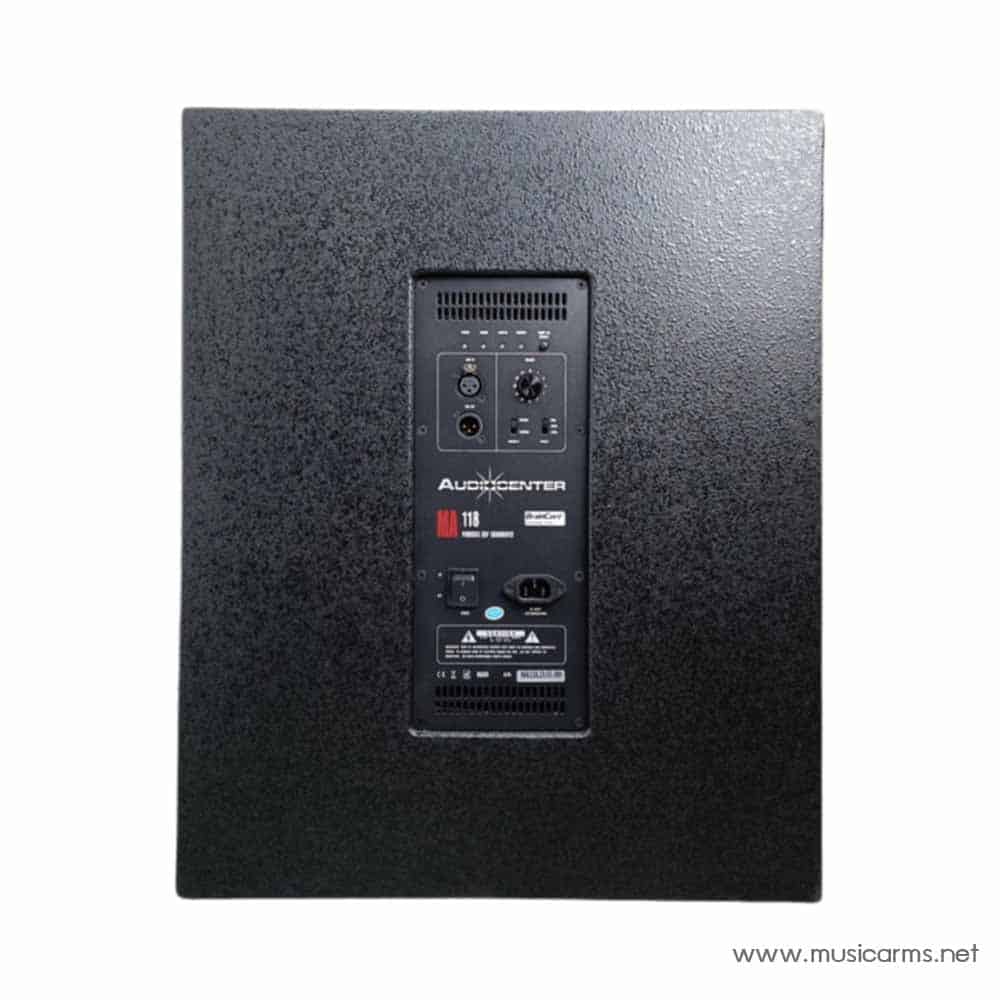

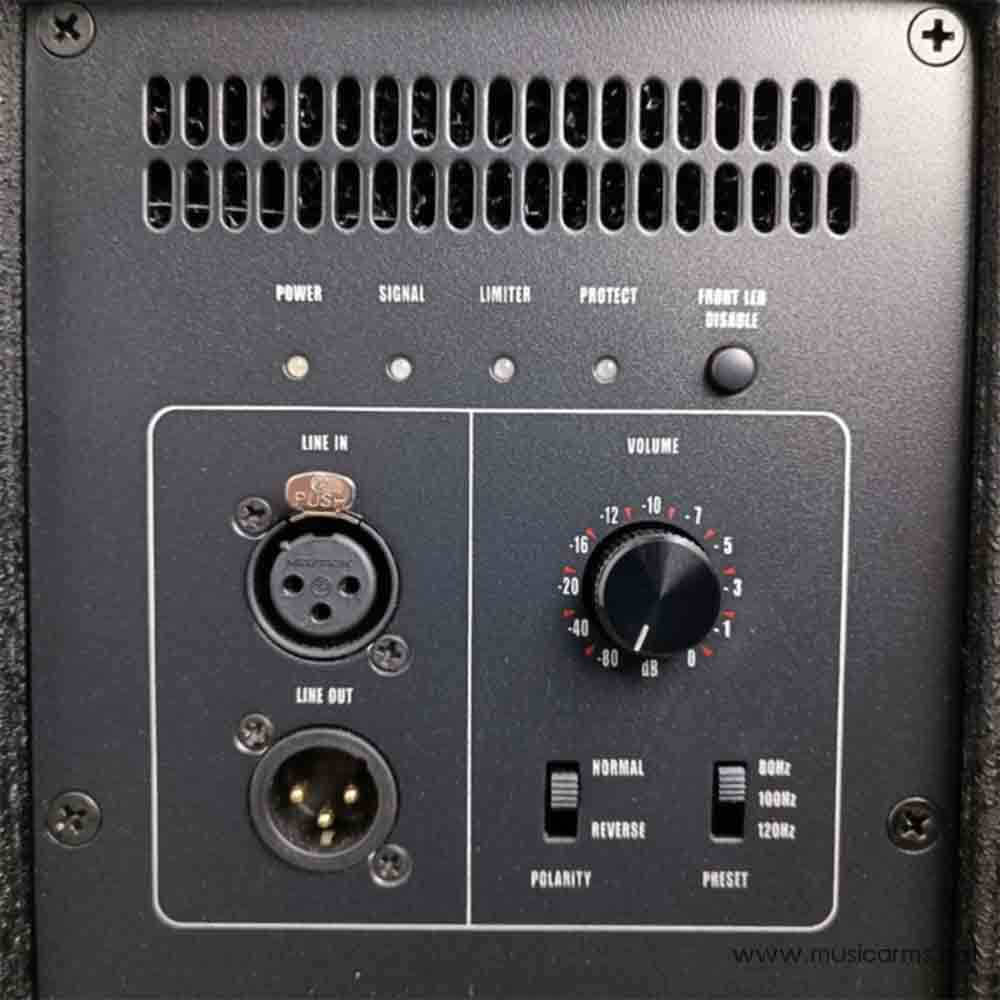

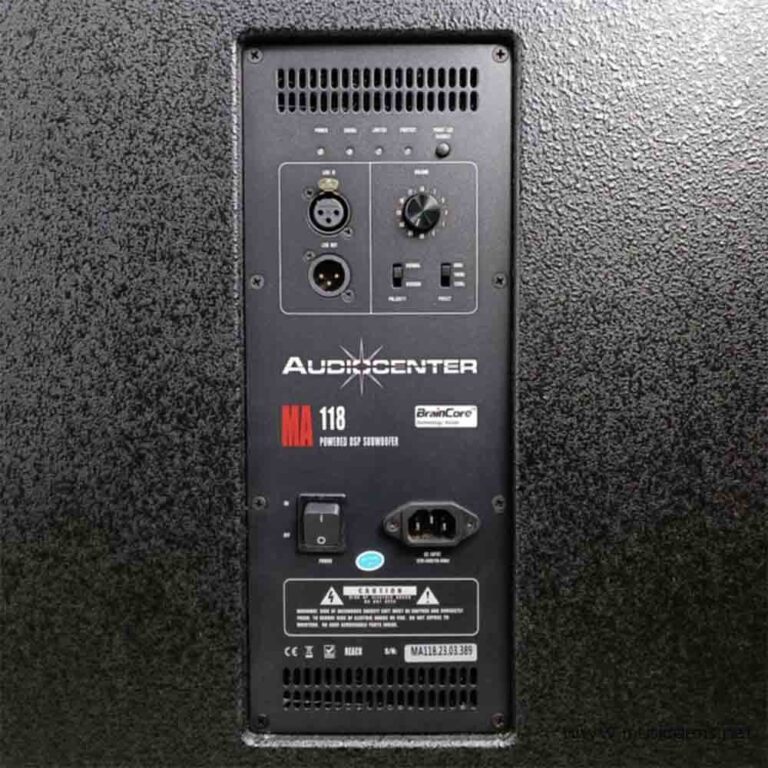

Audiocenter MA118 3 low-pass filters (80Hz, 100Hz, 120Hz) in MA118 are available to choose according to different venues and music styles. There is also phase switch. All connectors and function buttons are on the back panel.

MA118 subwoofer is with 1-way XLR for input and output. Signals can be sent to different speakers for sound distribution.

Specifications

• Type: Active DSP-controlled Compact Sub-woofer
• Frequency Response (-6dB anechoic chamber): 32Hz-150Hz
• Maximum Calculated: SPL/1M(Continuous/Peak) 128dB/134dB
• LF Driver: Customized driver, 4”voice coil

Amplifier

• Amplifier Circuitry: Class D
• Power (Peak): 2000W
• Frequency Response(1W 8Ω 2 ch): 20Hz-20KHz(±1dB)
• Intermodulation Distortion: <0.05%
• Total Harmonic Distortion: <0.05%
• Protection: DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
• Cooling System: Cooling with fans, air convection DSP
• Processor 96KHz signal sampling frequency, 24bit precision
• Presets 80Hz, 100Hz, 120Hz
• Crossover Controlled by DSP

Output/Input

• Signal Input: 1× female XLR
• Signal Output: 1× male XLR
• Power Input: 3 pin plug
• AC Power Operating Range: 100V~130V or 220V~240V (±10%，50/60Hz）

Cabinet

• Cabinet Material: CNC made of excellent wood
• Cabinet Colour: Black is standard and default colour.
• Consult with Audiocenter sales team for other customized colours

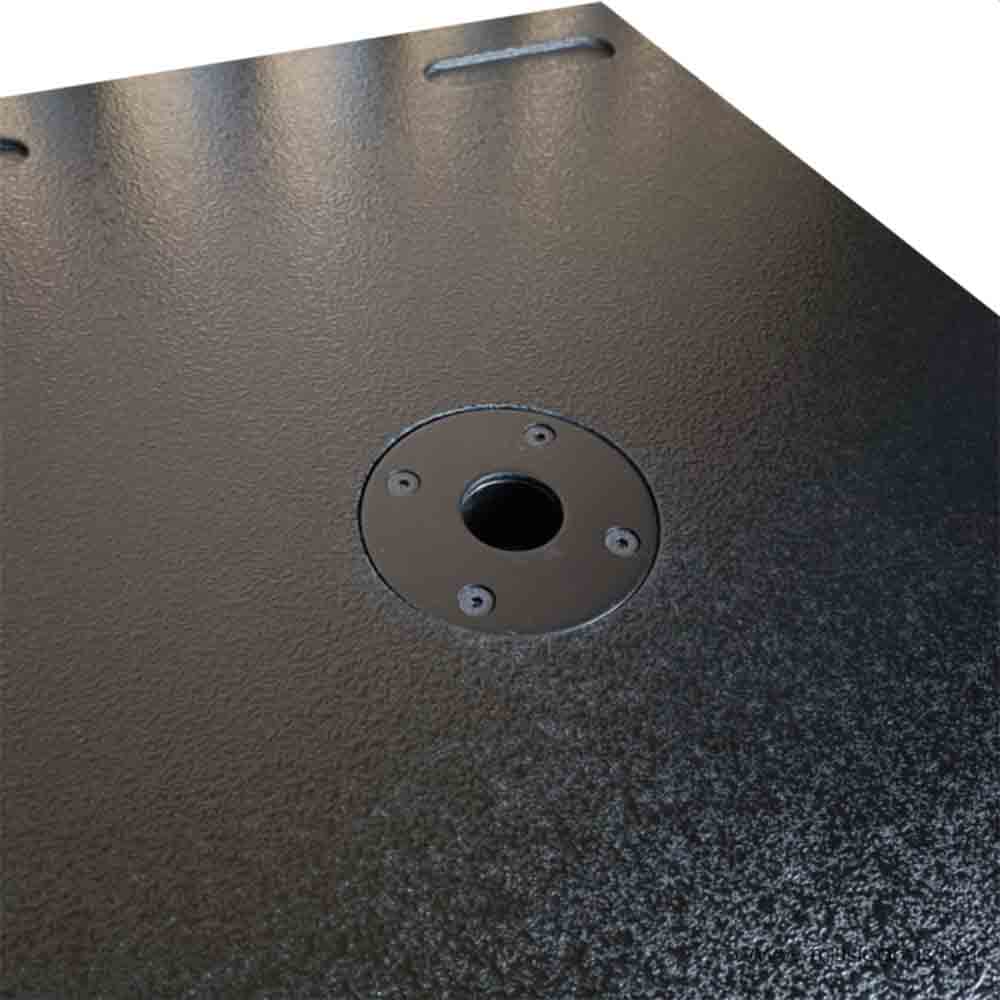

• Pole Mount: M20 base Φ35mm
• Dimensions (W×H×D): 510x632x695mm
• Net Weight: 45.0Kg

Pairs perfectly with MA12 and MA15
