Apogee Symphony I/O MKII Thunderbolt Chassis SYM2-32X32S2 with 2x 16 Analog I/O

Apogee Symphony I/O MKII Thunderbolt Chassis SYM2-32X32S2 with 2x 16 Analog I/O

Symphony I/O Mk II Thunderbolt is the most powerful multi-channel audio interface for Thunderbolt-based Mac workstations. Designed for the home or professional studio running Logic Pro X or any other native based DAW, this system offers your choice of 4 different base I/O configurations with the option to expand up to 32×32 simultaneous channels per unit while still maintaining incredibly low latency.

True Thunderbolt

Performance Symphony I/O Mk II Thunderbolt delivers the full potential of Thunderbolt 2 performance with the lowest latency, unmatched CPU efficiency and 2 ports for connecting additional peripherals.

Low Latency

Symphony I/O Mk II Thunderbolt relies on Apogee’s proprietary Thunderbolt driver, written from the ground up to offer unmatched performance and efficiency. When using Logic Pro X, latency has been reduced to an astounding 1.35ms round-trip, allowing you to monitor through your DAW, plug-ins included, simplifying your workflow and leveraging the power of your Mac. Even when your session’s DSP demands require a higher buffer setting, Symphony I/O’s ultra-low latency means no longer having to choose between power and speed. To accommodate different workflow preferences, Symphony I/O Mk II Thunderbolt features optional direct hardware monitoring through Apogee’s Maestro 2 App with 0.6ms of latency.

Devours Bits, Sips CPU

Symphony I/O Mk II Thunderbold’s custom driver includes a revolutionary Direct Memory Access (DMA) engine to more efficiently read and write data directly to Mac memory independent of the Mac CPU. The DMA engine, running on Symphony I/O Mk II Thunderbolt’s hardware logic chip, increases the driver’s efficiency and provides the highest resolution signal possible to the DAC stage. This implementation allows the driver to crunch an enormous amount of data at an amazing speed, while making a very light demand on your Mac. You benefit with lower latency, more plug-in power and a transparent and encompassing listening experience.

Specifications

Highlights:

• Best AD/DA conversion of any Thunderbolt audio interface
• Up to 32 channels of modular analog I/O with optional 8 mic preamps
• Best per-channel value of any interface in its category
• Choice of Thunderbolt, Pro Tools HD (Mac/PC) or Waves SoundGrid connectivity
• Ultra-low latency performance
• Intuitive touchscreen display and front panel control
• Designed in California, Built in the U.S.A.

Modules:

• Symphony I/O Mk II 16×16
• Expansion Module: 16×16 Analog I/O

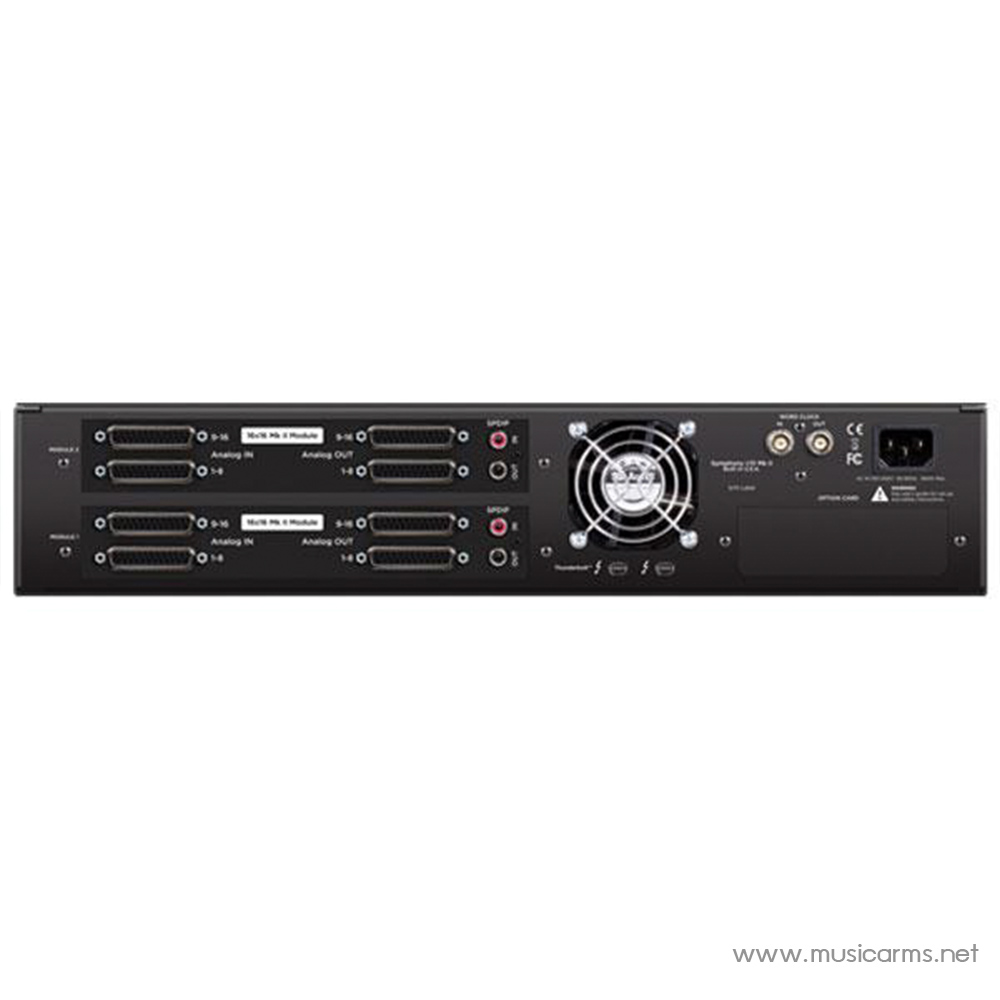

INPUTS

• Analog IN: 16 balanced inputs on 2 DSUB 25-pin connectors
• Coax IN: S/PDIF on 1 RCA connector

OUTPUTS

• Analog OUT: 16 balanced outputs on 2 DSUB 25-pin connectors
• Coax OUT: Supports SPDIF on 1 RCA connector

Connection:

• Thunderbolt cable (Sold separately)

Performance:

• 44.1kHz – 192kHz
• Latency: 1.35 ms with Logic Pro X (96 kHz / 32 buffer)

Computer:

• Thunderbolt-enabled Mac computer, including Mac Pro, MacBook Pro, Mac mini, iMac & MacBook Air
• Operating System: Mac OS 10.9.5 or greater

Control:

• Maestro app (included in software installer) and front panel touchscreen

Compatible Software:

• Logic Pro X
• Any Core Audio application on Mac

Symphony I/O Mk II Dimensions:

• Inches: 17.75 (19 with Rack Ears) x 11.5 x 3.5
• Centimeters: 45 (48.26 with Rack Ears) x 29.2 x 8.9

Packaging Dimensions:

• Symphony I/O Chassis Box
• Inches: 22.875 x 17.75 x 9.25
• Centimeters: 58.1 x 45.1 x 23.5

I/O Module Box

• Inches: 13.75 x 12.25 x 3.25
• Centimeters: 34.9 x 31.1 x 8.3
