Apogee SYM2-32X32S2-PTHD

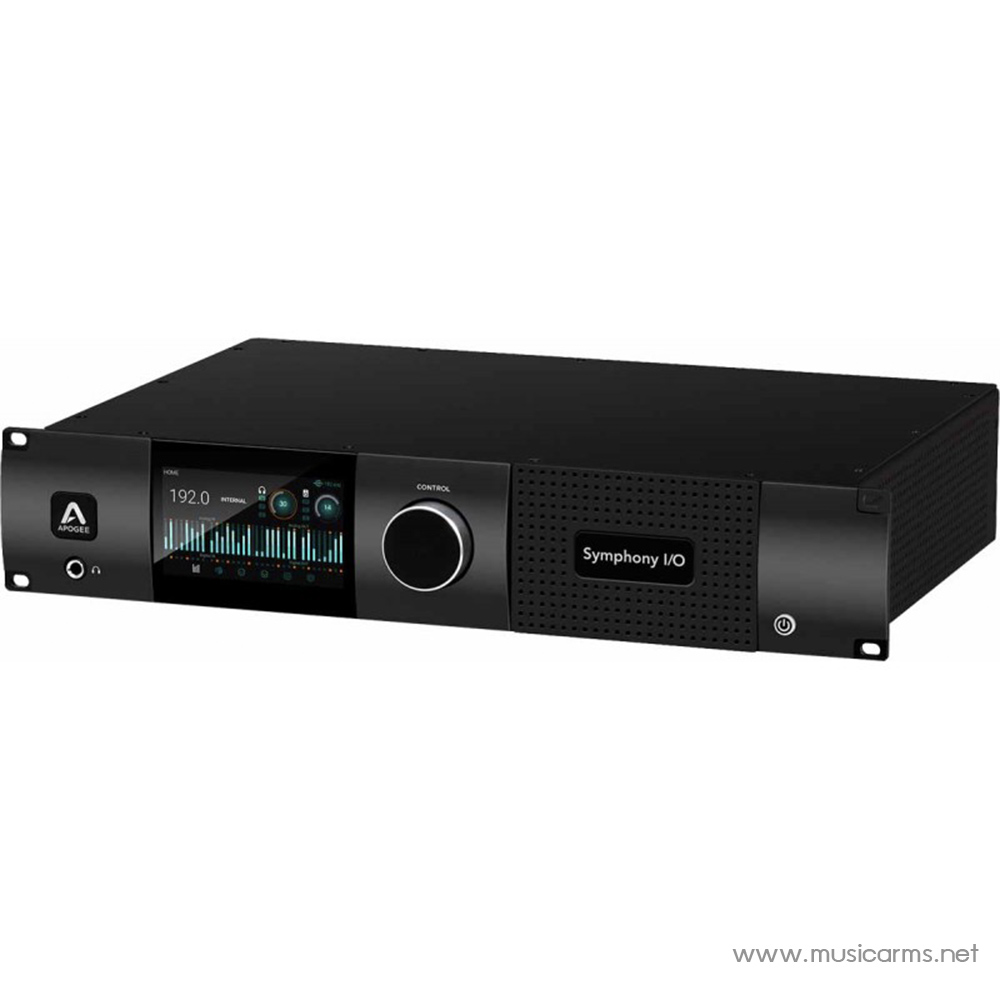

Apogee Symphony I/O MKII SYM2-32X32S2-PTHD 32X32 Analog I/O Pro-Tools HD Audio Interface

Symphony Control Software
Symphony Control software for Mac, is designed specifically for Symphony I/O Mk II audio interfaces. Symphony Control has been built from the ground up and replaces Apogee’s Maestro software for Symphony I/O Mk II users. Symphony Control delivers all the functionality of Maestro in a new, highly customizable user interface along with innovative new features like Talkback functionality, the simplified “Essentials” control window and an FX Send mixer feature, recently introduced as part of the Element Control software.

Apogee Control Hardware Remote Accessory
Symphony Control also provides compatibility between Symphony I/O Mk II audio interfaces and the Apogee Control hardware remote accessory. Apogee Control gives you instant access to input and output levels using the large Symphony-inspired Control knob and 3 control knob focus buttons, plus direct access to a wide range of software functions using the 8 user-configurable hardware buttons. Apogee Control hardware remote connects directly to your Mac using the included USB cable.

Multi-unit support for up to 64 channels of I/O
With the introduction of Symphony Control, customers can now use 2 Symphony I/O Mk IIs  simultaneously for up to 64 channels of I/O over a Thunderbolt connection to their Mac. Symphony I/O Mk II combined with Logic Pro on a Mac delivers the most advanced native workstation available with superior quality high-channel count recording at incredibly low latency.

Standalone mode
Standalone Routing lets you setup and use Symphony I/O Mk II without a computer. From the front panel touch screen you can set up Symphony I/O Mk II for use in these situations and more:

Hi-Fi Systems
Connect Symphony I/O MkII to a Blu/Ray, CD Player or Power Amp for high end speakers. Symphony I/O Mk II is also an ideal high-end headphone amp.

Windows Workstations
May use a third party ADAT or AES PCI interfacing card to use Symphony I/O MkII converters on a Windows Machine.

Standalone Converter
Standalone AD/DA converters can be used alongside other digital gear: To expand other interfaces, to connect to live or studio digital consoles, to connect to broadcast equipment. With Standalone mode you can also bypass the converters of your existing gear

Specification

• Best AD/DA conversion of any Thunderbolt audio interface
• Up to 32 channels of modular analog I/O with optional 8 mic preamps
• Best per-channel value of any interface in its category
• Choice of Thunderbolt, Pro Tools HD (Mac/PC) or Waves SoundGrid connectivity
• Ultra-low latency performance

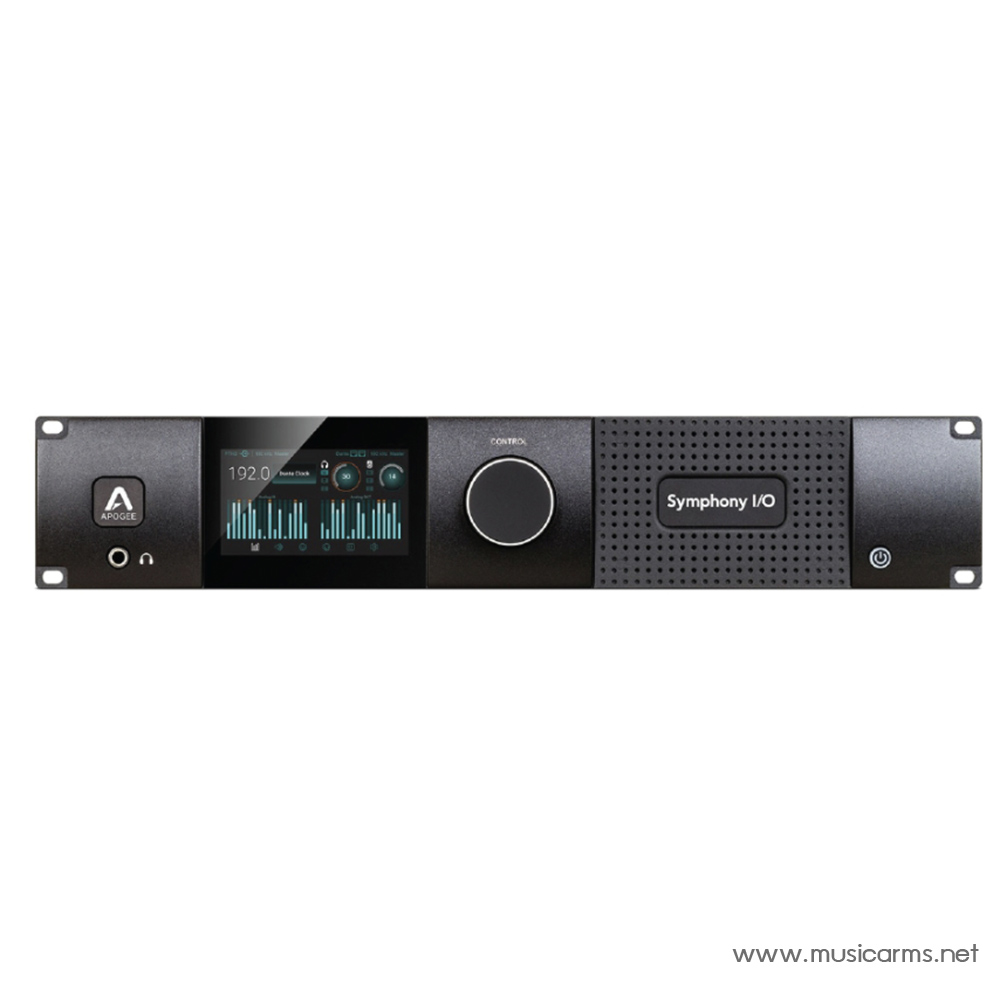

• Intuitive touchscreen display and front panel control
• Designed in California, Built in the U.S.A.

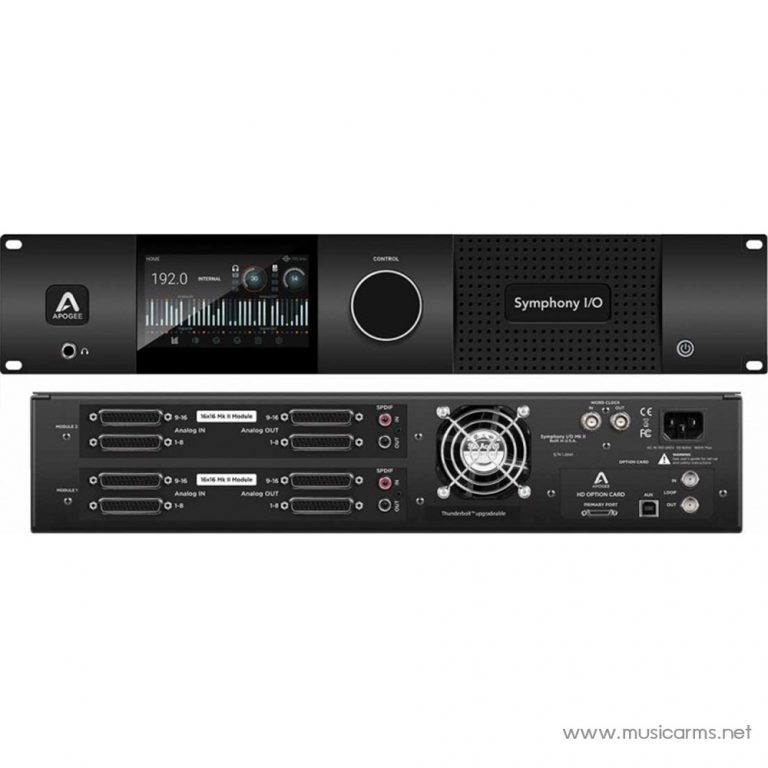

• Module: Symphony I/O Mk II 16×16
• Expansion Module: 16×16 Analog I/O

INPUTS

• Analog IN: 16 balanced inputs on 2 DSUB 25-pin connectors
• Coax IN: S/PDIF on 1 RCA connector

OUTPUTS

• Analog OUT: 16 balanced outputs on 2 DSUB 25-pin connectors
• Coax OUT: Supports SPDIF on 1 RCA connector

Connection:

• Pro Tools HD Core card
• Pro Tools Accel PCI card
• Pro Tools HD Native PCI card
• Pro Tools HD Native Thunderbolt
• Pro Tools HDX PCI card

Performance:

• 44.1kHz – 192kHz
• Sample accurate compatibility with Pro Tools Delay Compensation
• Computer: Mac or PC
• Control: Front panel touchscreen
• Compatible Software: Pro Tools HD 9 or greater
• Symphony I/O Mk II Dimensions:
• Inches: 17.75 (19 with Rack Ears) x 11.5 x 3.5
• Centimeters: 45 (48.26 with Rack Ears) x 29.2 x 8.9

Packaging Dimensions:

• Symphony I/O Chassis Box
• Inches: 22.875 x 17.75 x 9.25
• Centimeters: 58.1 x 45.1 x 23.5

I/O Module Box

• Inches: 13.75 x 12.25 x 3.25
• Centimeters: 34.9 x 31.1 x 8.3
