Apogee SYM2-2X6SE-PTHD

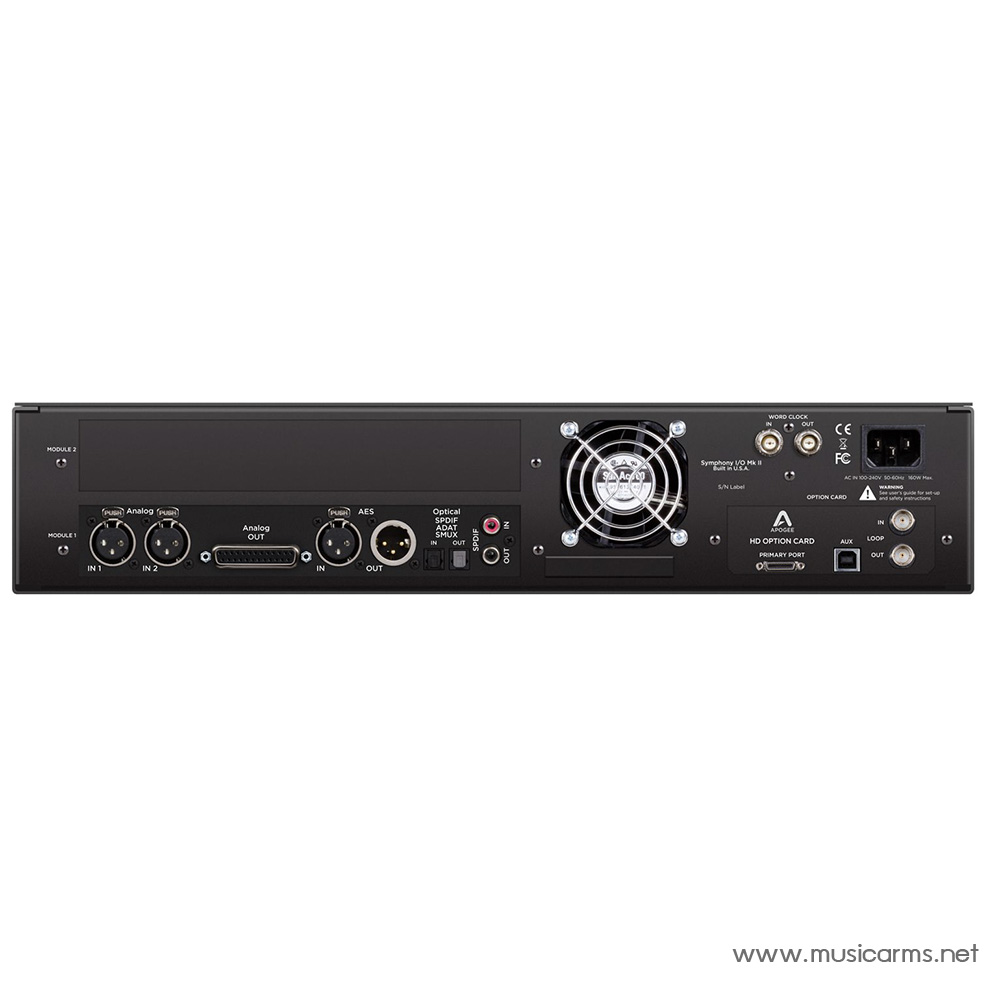

Analog and Digital Inputs:

• Analog In 2 balanced inputs on 2 XLRF connectors
• AES In stereo input on 1 XLRF connector
• Optical In supports ADAT, SMUX, and S/PDIF:
• ADAT 8 channels; 44.1kHz–48kHz on 1 TOSlink connector
• SMUX 4 channels; 88.2kHz–96kHz on 1 TOSlink connector
• S/PDIF 2 channels; up to 96kHz on 1 TOSlink connector
• S/PDIF Coaxial In 2 channels; up to 192kHz on 1 RCA connector

Analog and Digital Outputs:

• Analog Out 6 balanced outputs on 1 x 25-pin D-Sub connector
• AES Out stereo output on 1 XLRM connector
• Optical Out supports ADAT, SMUX, and S/PDIF:
• ADAT 8 channels; 44.1kHz–48kHz on 1 TOSlink connector
• SMUX 4 channels; 88.2kHz–96kHz on 1 TOSlink connector
• S/PDIF 2 channels; up to 96kHz on 1 TOSlink connector
• S/PDIF Coaxial Out 2 channels; up to 192kHz on 1 RCA connector

Apogee Symphony I/O MkII 2×6 SE Features:

• Apogee’s most advanced conversion ever
• Class-leading AD/DA conversion for Pro Tools HD
• Analog inputs deliver 124dB of dynamic range and THD+N of -116dB
• Analog outputs offer 131dB of dynamic range and THD+N of -118dB
• Connects directly to Pro Tools HD Native, HDX, or Core/Accel systems
• Ultra-low 1.35mS latency
• Flexible modular I/O

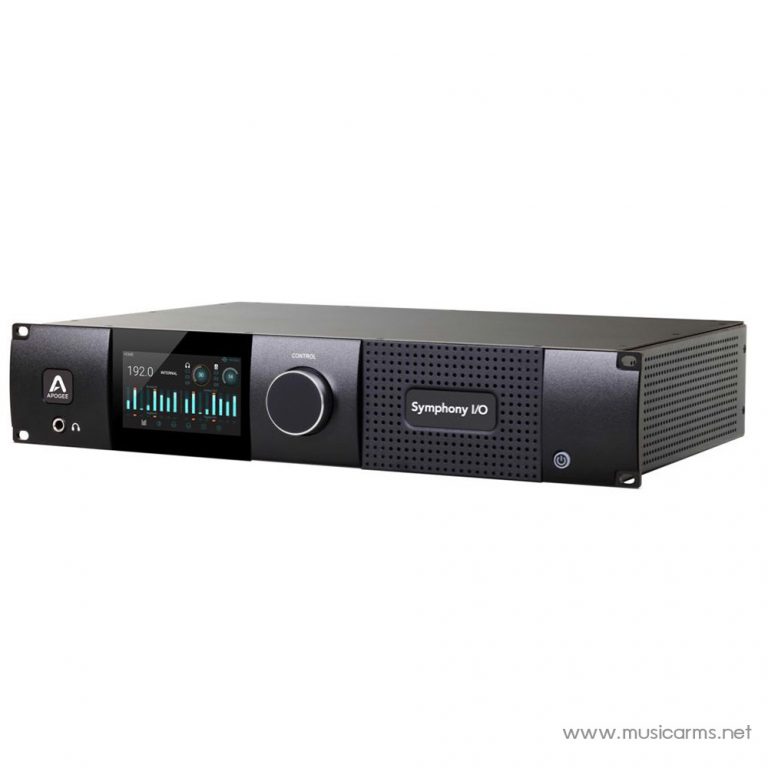

• User-friendly 4.3″ TFT touchscreen display and front-panel controls
• Easy to expand your setup as your needs grow
• Outstanding per-channel value
