Apogee SYM2-16X16S2-PTHD

Apogee SYM2-16X16S2-PTHD | Symphony I/O MKII PTHD Chassis with 16 Analog In + 16 Analog Out

Symphony I/O Mk II HD is designed for the Pro Tools HD user who needs a multi-channel audio interface with the best sound quality at an incredible cost per channel value. Whether using a Mac or PC based studio, Symphony I/O Mk II HD can connect directly to your Pro Tools HDX, Pro Tools HD Native or Pro Tools Core/Accel systems. Symphony I/O Mk II HD can be utilized alongside or in place of Avid® or Digidesign® interfaces for Pro Tools HD. In fact, each I/O module installed in Symphony I/O Mk II HD appears and functions in Pro Tools HD the same if it were a separate Avid HD I/O interface, so set up is easy and you can take advantage of important Pro Tools features such as sample-accurate delay compensation. A single Symphony I/O Mk II HD unit can have up to 32 simultaneous analog I/O, so you can have more channels with less rack gear. Need even more channels? You can utilize multiple units simultaneously, with one Symphony I/O Mk II HD per every Pro Tools HD port in your system. Calibrating your I/O is easy with Symphony I/O Mk II HD’s front panel touchscreen.

Main Features:

• Best performance of any multi-channel Pro Tools HD interface
• Best cost per channel value of any Pro Tools HD interface solution
• Connects directly to any Pro Tools HD system (Mac or PC)
• Emulates Avid HD I/O interface, including sample-accurate delay compensation
• Connect multiple units in a single system (1 unit per HD port)

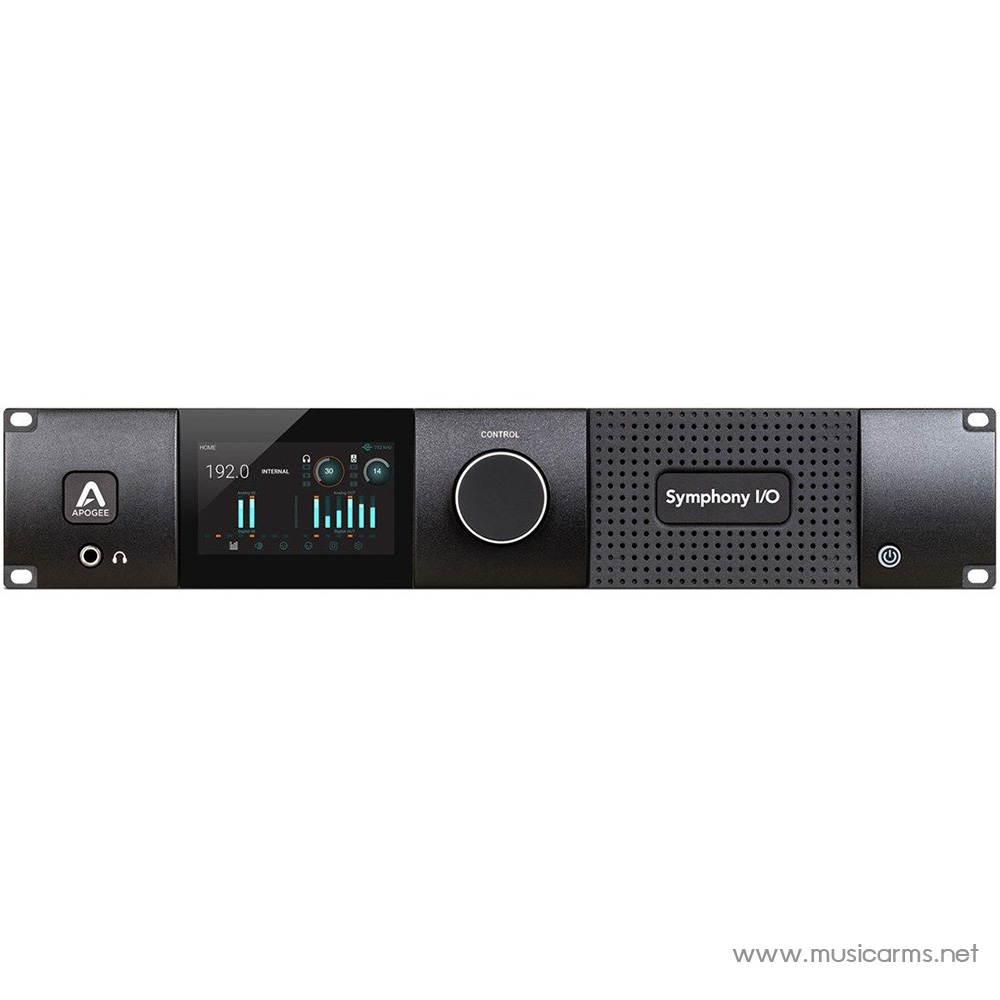

• Easy I/O calibration with front panel touchscreen

Specification

INPUTS:

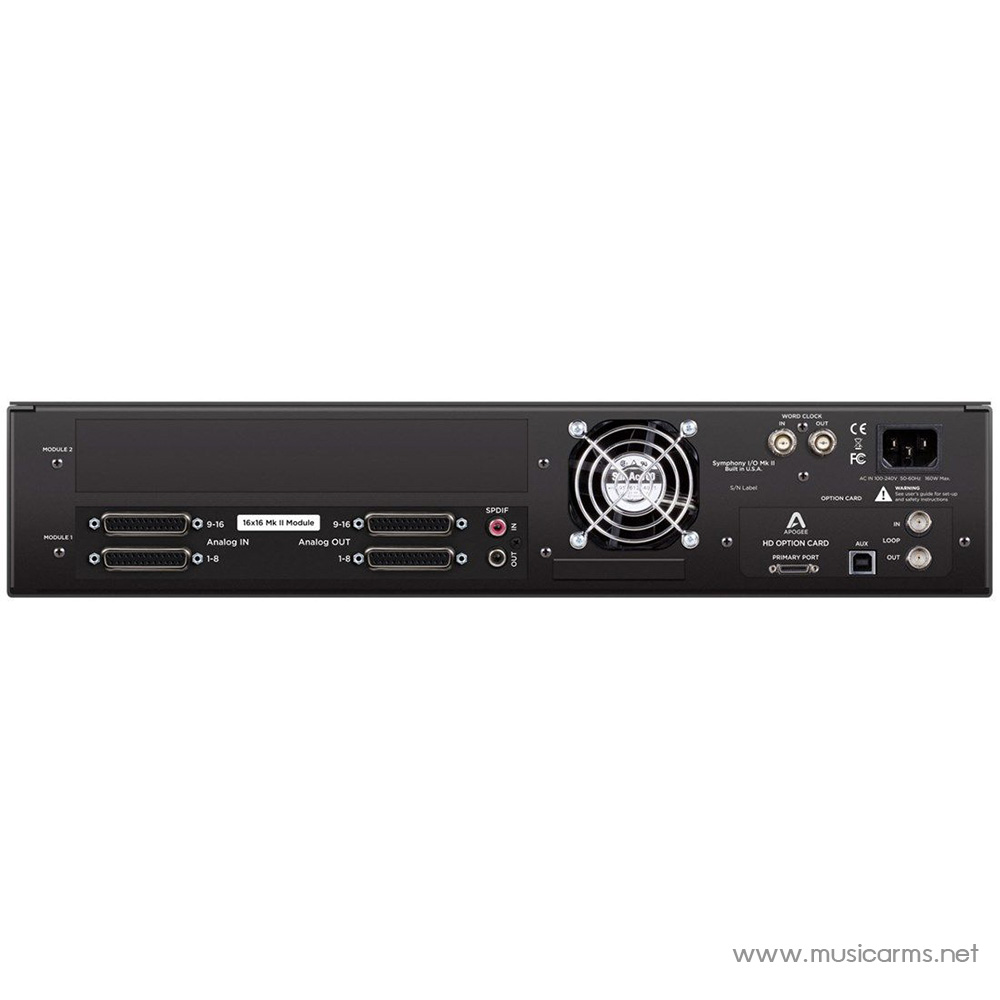

• Analog IN: 16 balanced inputs on 2 DSUB 25-pin connectors
• Coax IN: S/PDIF on 1 RCA connector

OUTPUTS:

• Analog OUT: 16 balanced outputs on 2 DSUB 25-pin connectors
• Coax OUT: Supports SPDIF on 1 RCA connector

Analog to Digital:

• THD+N: -115dB @ 22dBu (0.00020%) unweighted
• Dynamic range: 122dB A weighted
• Maximum input levels: +4dB setting: +24dBu, -10dB setting: +6dBV
• Frequency response at 44.1kHz: 1-20,000 Hz (+/- 0.05dB)
• Input impedance: 10K

Digital to Analog:

• THD+N: -119dB @ 21dBu (0.00014%) unweighted
• Dynamic Range: 126dB A weighted
• Max output levels – ∞ to +24dBu
• Frequency response at 44.1 kHz: dc to 20kHz (+/- 0.05dB)
• Output impedance: 25 Ohm
• Outputs are balanced through Apogee’s proprietary Perfect Symmetry Circuitry (PSC)

Headphone Output:

• 1 stereo 1/4″ headphone output on front panel
• THD+N: -110dB @19dBu into 600 Ohm (=80mW), -101dB @14dBu into 32 Ohm (=470mW)
• Dynamic Range: 121db A weighted
• Output: Apogee’s proprietary Constant Current Drive™ provides smooth frequency response with any headphones
• Power: 90-240VAC, 50-60Hz, 150W

Operating System:

• Thunderbolt: Mac OS only 10.9.5 and above
• HD: Any Mac or PC running Pro Tools HD 9 or greater

Software Compatibility:

• Thunderbolt: Logic Pro or any Core Audio compatible application on Mac OS X
• HD: Pro Tools HD 9 or greater

Package Contents:

• Symphony I/O Mk II Interface
• Power Cable
• Quick Start Guide
• Warranty Booklet

Symphony I/O Mk II Dimensions:

• Inches: 17.75 (19 with Rack Ears) x 11.5 x 3.5
• Centimeters: 45 (48.26 with Rack Ears) x 29.2 x 8.9

Packaging Dimensions:

Symphony I/O Chassis Box:

• Inches: 22.875 x 17.75 x 9.25
• Centimeters: 58.1 x 45.1 x 23.5

I/O Module Box:

• Inches: 13.75 x 12.25 x 3.25
• Centimeters: 34.9 x 31.1 x 8.3
