Description

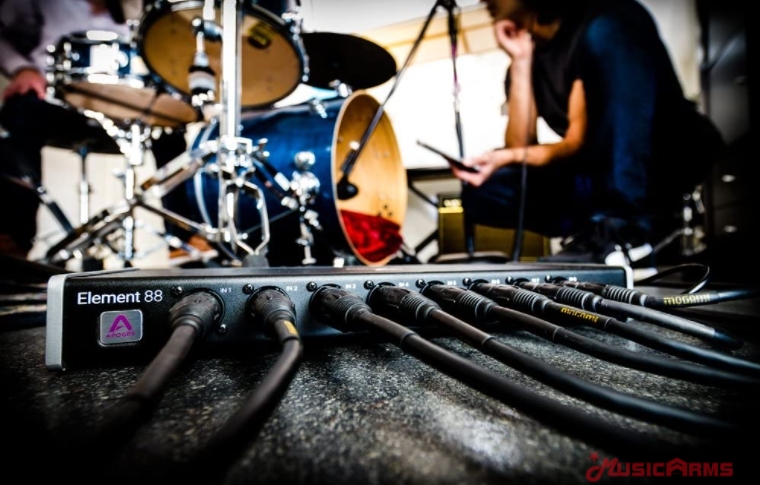

Apogee’s Element 46 and 88 are Thunderbolt audio I/O boxes for Mac. The Element Series takes the best of cutting-edge Apogee gear like Symphony I/O Mk II, Ensemble Thunderbolt and Groove and puts it into simple form factors. With streamlined hardware features and advanced software control, the Element series delivers ultimate recording quality and performance at unprecedented prices.

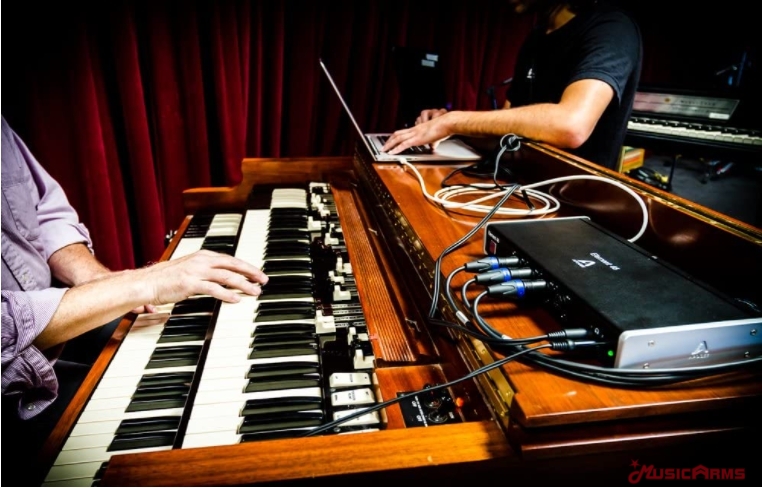

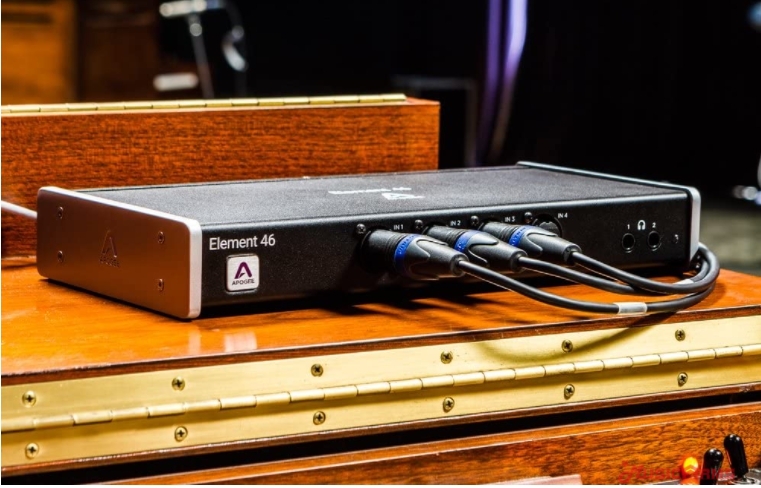

The Element 46 is a 12-in/14-out audio interface that takes the best of cutting-edge Apogee technology and packs it into a streamlined, cost-effective unit. The Element 46 gives you four front-panel mic/line/instrument inputs on combi connectors, two rear-panel balanced XLR outputs, two stereo headphone outs, and word clock I/O. Four of Apogee’s world-class mic preamps are onboard, with selectable phantom power.
For expansion flexibility, optical I/O is also provided with ADAT (8 x 8), SMUX (4 x 4), and S/PDIF (2 x 2) compatibility. Apogee’s Element Control software gives you remote control of your hardware on your Mac and wireless control via iPhone, iPad, or iPod touch.
Specification
Element 46 Highlights
- 12 IN x 14 OUT Thunderbolt Audio I/O box
- AD/DA conversion for recording up to 192kHz/24-bit
- 4 analog inputs with world-class mic preamps and selectable 48v phantom power for connecting microphones, instruments or line-level devices
- 4 combination inputs
- 6 analog outputs
- 2 balanced L/R XLR outputs
- 2 1/4” stereo headphone output
- Single port Thunderbolt connectivity to Mac for ultra-low latency performance
- 1.41ms round-trip at 96kHz with a 32 buffer setting
- Optical IN: Supports ADAT, SMUX & S/PDIF
- ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
- SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
- S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
- Optical OUT: Supports ADAT, SMUX & S/PDIF
- ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
- SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
- S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
- Word Clock IN/OUT via BNC connections for syncing with other digital audio gear
- Apogee Control Software for Mac provides all control of hardware parameters including input gain, output level and low latency monitoring
- Apogee Control Mobile App provides wireless remote control of hardware via iPhone, iPad or iPod touch
- Works with Apogee Control desktop hardware remote control (Sold separately)
- Multi-Unit Thunderbolt support – Connect any two Element audio I/O boxes directly to Thunderbolt ports on your computer
- Apogee Ensemble Thunderbolt expander – Connect any Element to the second port on an Ensemble
Weights and Dimensions
- 11.5” x 5.5” x 1.75″
- 29.5cm x 14cm x 4.5cm
- 2.95lbs
- 1.34kg
System Requirements
Mac OS:
- Computer: Thunderbolt-equipped Mac (iMac, Macbook Pro, Macbook Air, Mac Pro)
- Memory: 4 GB RAM minimum, 8 GB recommended
- OS: 10.10 or greater
- Connection: Any available Thunderbolt port*
- Power: DC Power supply included
*Thunderbolt cable not included
Compatible Software:
- Any Mac Core Audio compatible application
- Recommended apps: Logic Pro, Pro Tools, Ableton Live, GarageBand, MainStage, Final Cut, Digital Performer, Studio One, Cubase, and Nuendo
In the box:
- Element 46
- Universal Power Supply with standard 3 pin-IEC cable
- Quick Start Guide
- Warranty Booklet
Mic Preamps:
- 4 Mic preamps
- Gain: Up to 75 dB and advanced stepped gain circuit design
- Selectable 48v phantom power, Soft Limit and polarity invert
- EIN: 129dB (un-weighted) @ 60dB, 150Ohm input
- Max input level: +20dBu
- Input impedance: 3K Ohm
A/D conversion:
- Max input level (+4dBu ref/Mic): +20dBu
- Max input level (-10dBV ref): +6dBV
- Input impedance: 5KOhm
- Freq resp 10 Hz -20Khz: > +/-0.2dB (@44.1Khz)
- Rel. THD + N: -110dB
- Dyn. Range: 119dB (A-weighted)
D/A conversion:
- Max output level (+4dBu ref): +20dBu
- Max output level (-10dBV ref): +6dBV
- Line output impedance: 90 Ohm
- Freq resp 10Hz -20 Khz: > +/- 0.05dB (@44.1Khz)
- Rel. THD+N : -114dB
- Dyn Range: 123dB (A-weighted)
- Headphone Max output level:
- 560mW into 30 Ohm
- 90mW into 600 Ohm
- Headphone THD+N: -107 dB with 600 Ohm load @ 19 dBu
- Headphone Dyn Range: 117dB a-weighted
