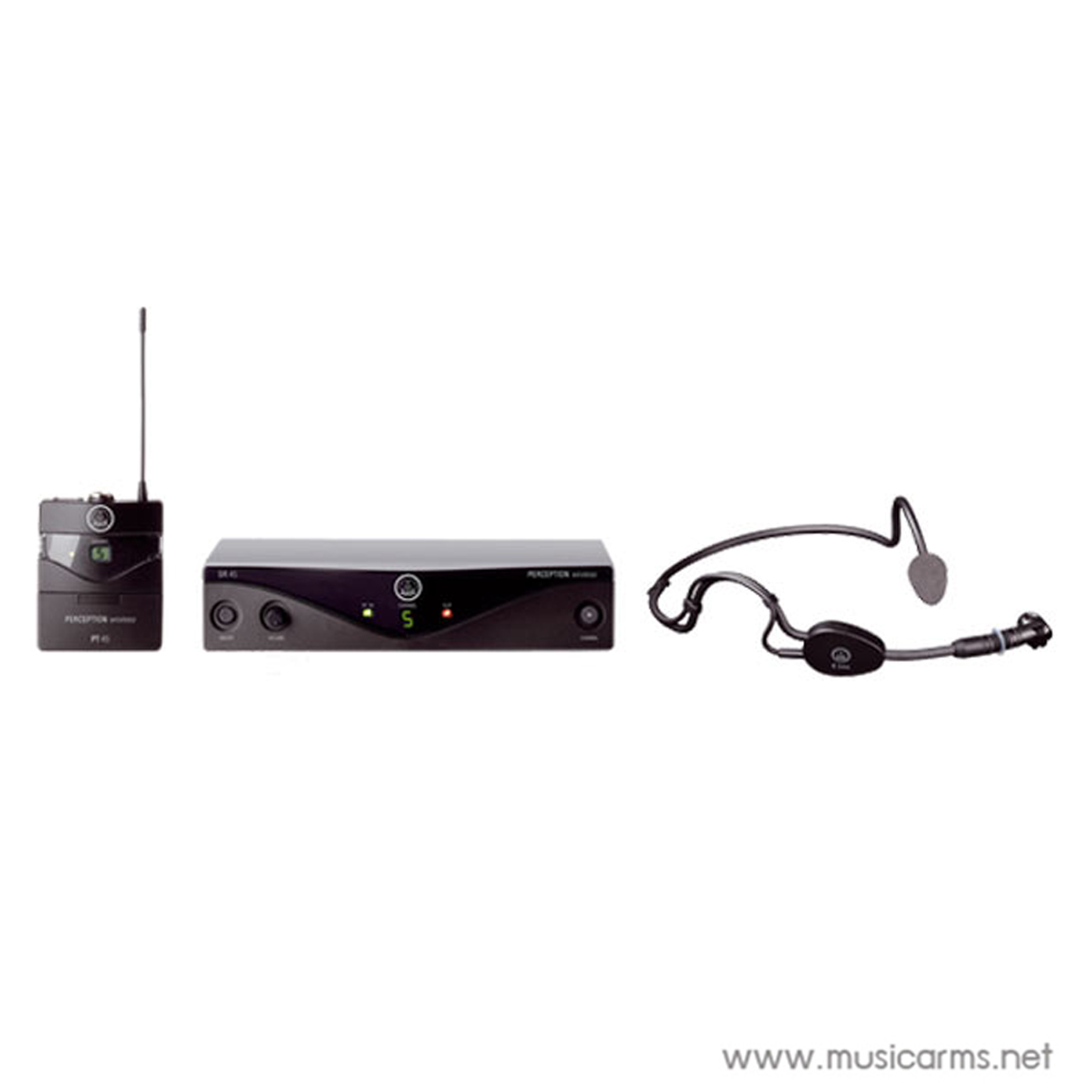

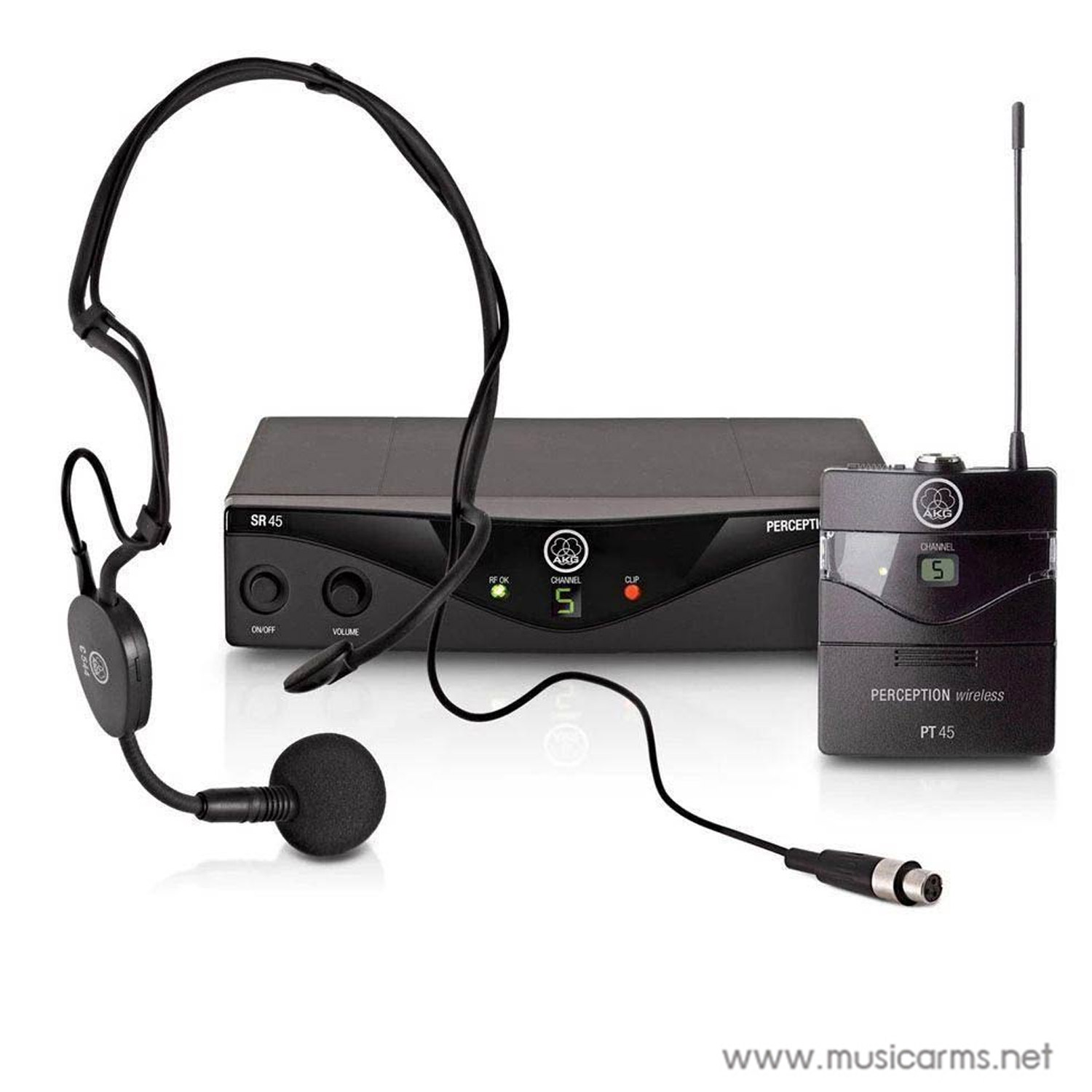

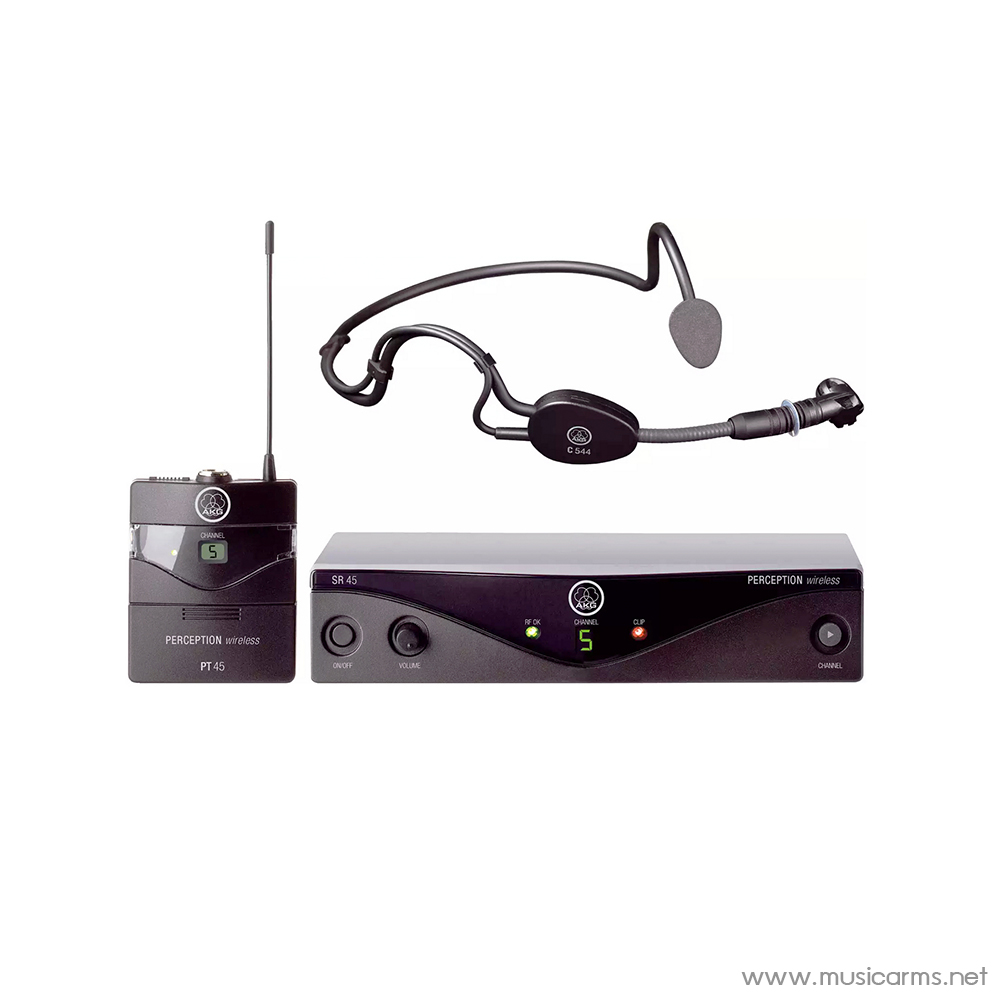

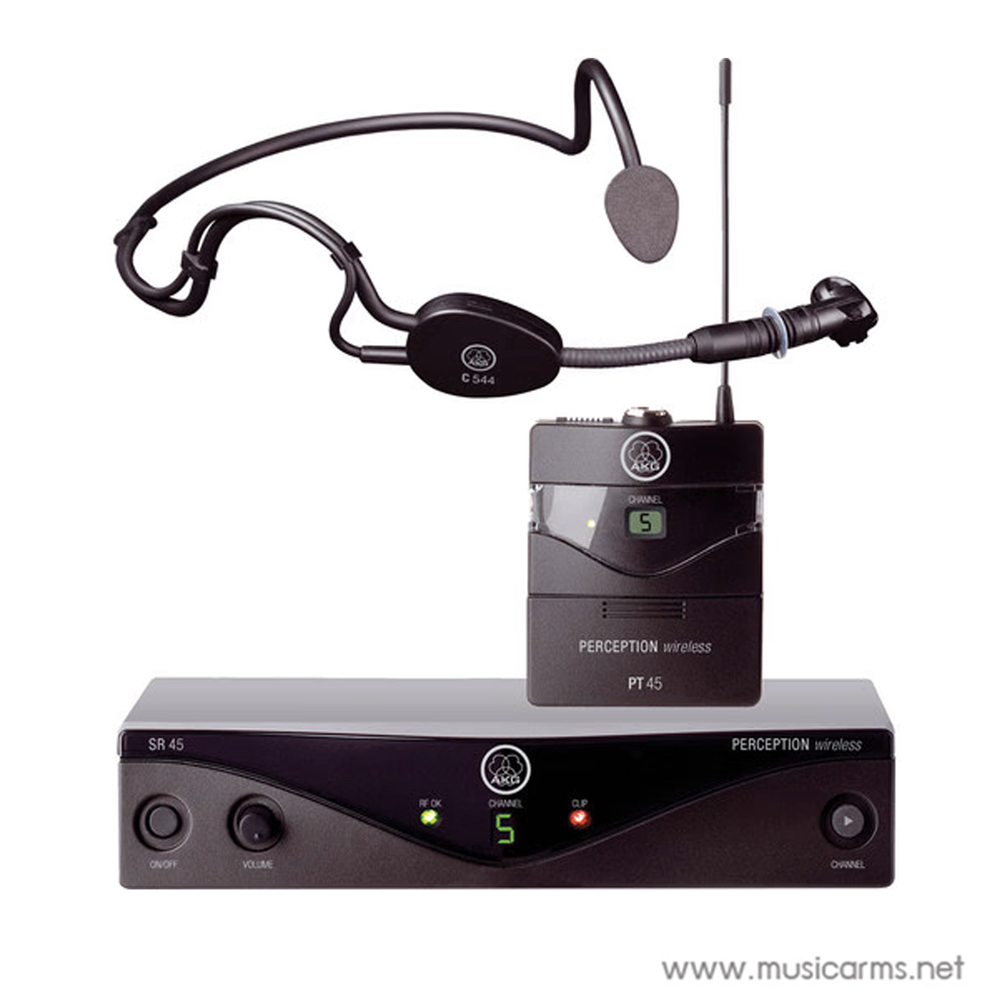

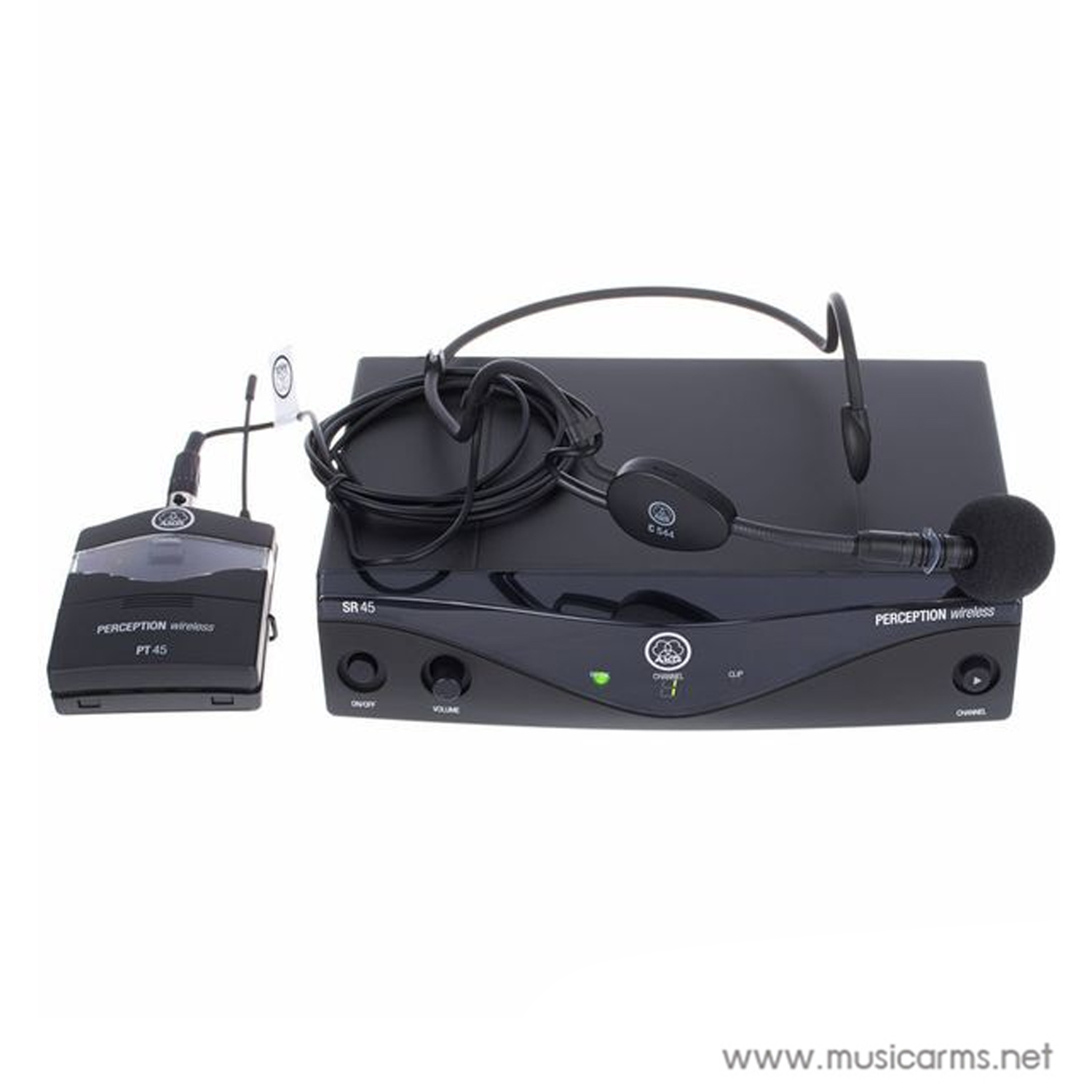

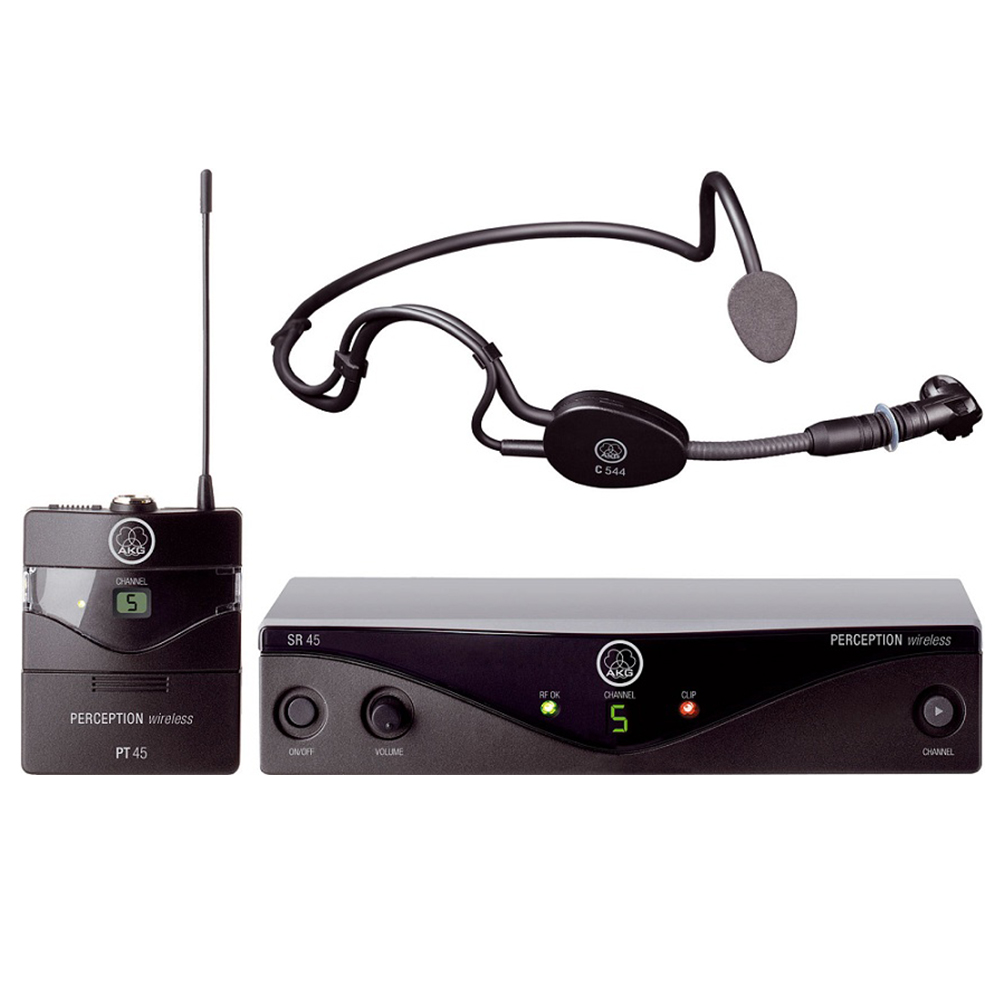

AKG Perception Wireless 45 Sport Set

A rugged wireless mic system that allow user maximum hands free mobility.

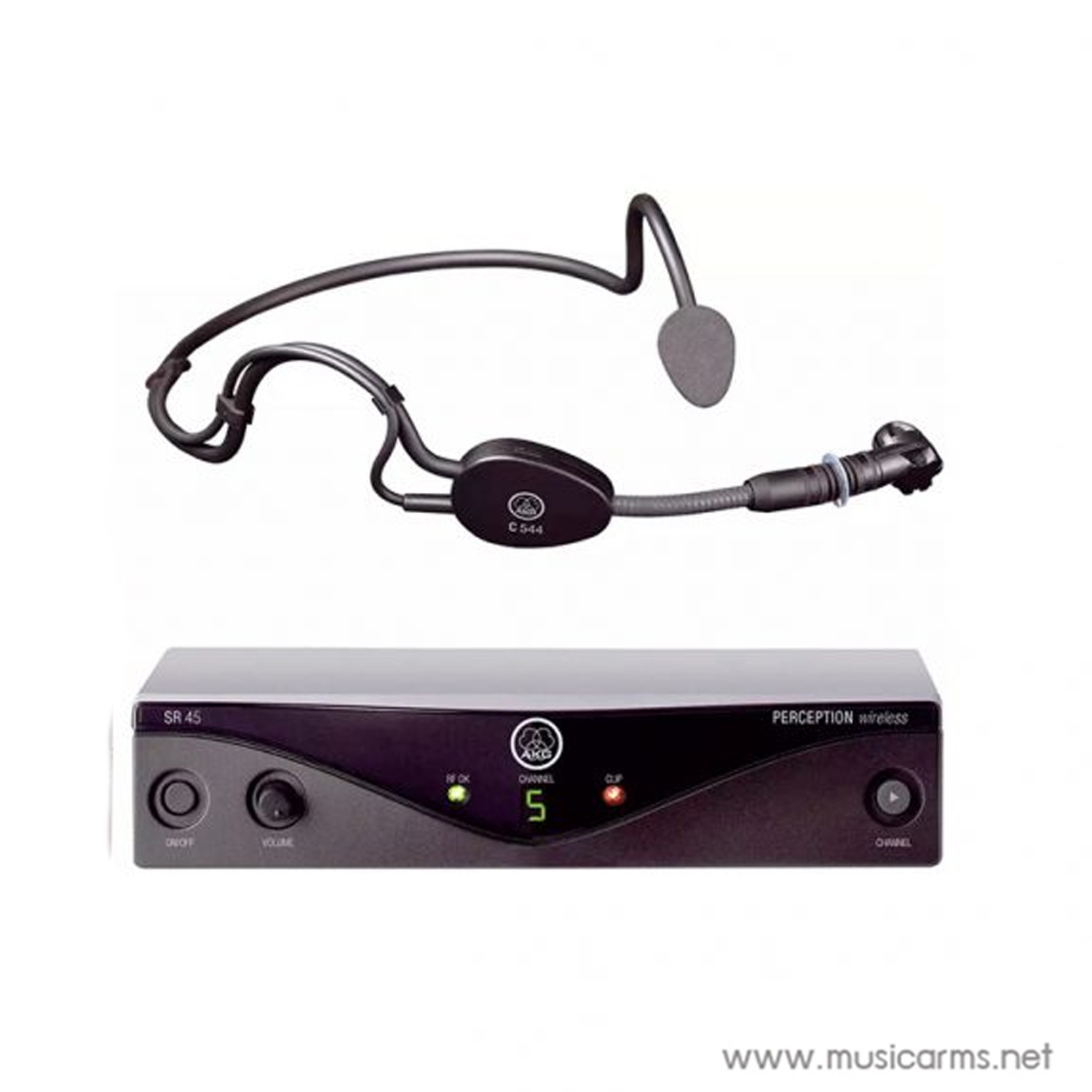

The AKG Perception Wireless Sports system with its comfortable C 544 L and ultra lightweight PT 45 bodypack transmitter ensures maximum user mobility for all hands free applications. The C 544 L headworn microphone comes with four moisture shields protecting the transducer from perspiration while you practice your favorite sport. The C 544 L uses the proven transducer of the C 555 L and is quick and easy to put on and replace.

SR 45 Stationary Receiver

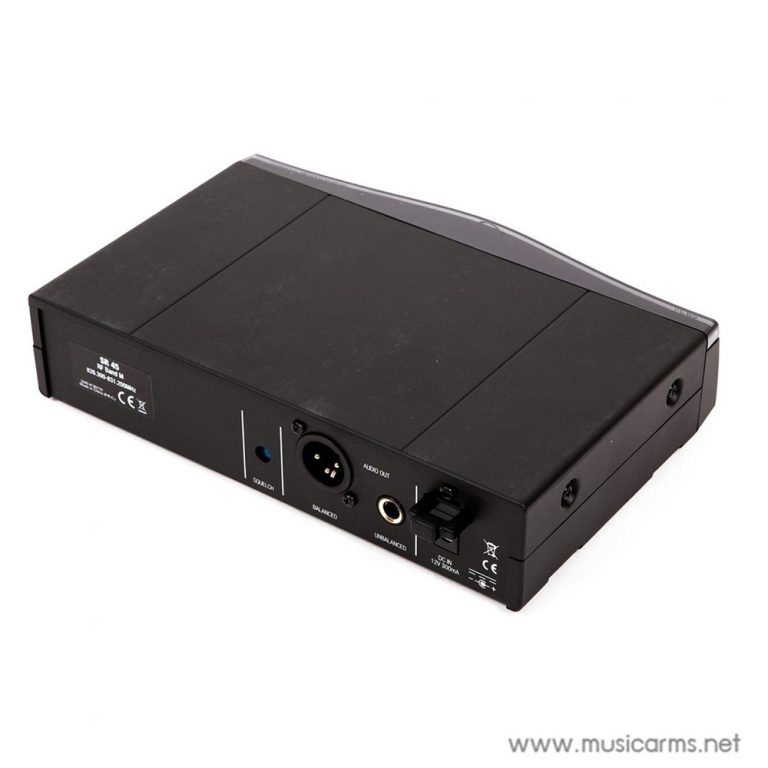

The SR 45 Stationary Receiver delivers a diversity system, professional XLR and jack outputs, and the SMPS solution. The audio level and squelch threshold are adjustable on the receiver. It is a stationary receiver for use with all transmitters of the Perception wireless system.

The SR 45 operates within a switching bandwidth of up to 30 MHz in the 500 to 560 MHz UHF carrier frequency range and offers up to 8 selectable carrier frequencies.

PT 45 bodypack transmitter

The PT 45 bodypack transmitter lets you use both dynamic microphones and condenser microphones operating on a supply voltage of approx. 4 V. Naturally you may also connect an electric guitar, electric bass or keytar.

The PT 45 operates within a switching bandwidth of up to 30 MHz in the 500 to 560 MHz UHF carrier frequency range and offers up to 8 selectable carrier frequencies.

• 30 MHz selection bandwidth (depending on local frequency plans)
• 8 hours of operation with a single AA size battery
• Rugged, “one-size-fits-all” C 544 L headworn microphone
• Ergonomically optimized behind-the-neck headband
• External shock mount for high mechanical-noise rejection
• Compatible with all AKG MicroMics
• Low battery indicator
• Smallest and lightest bodypack transmitter in its class

• Included

  PT 45 bodypack transmitter

  AA battery

  C 544 L headset microphone

  4 moisture shields

  W 444 windshield

  SR 45 receiver

  SMPS switched mode power supply

  Guarantee card

  Frequency table

  Manual supplement sheet
