AKG P170

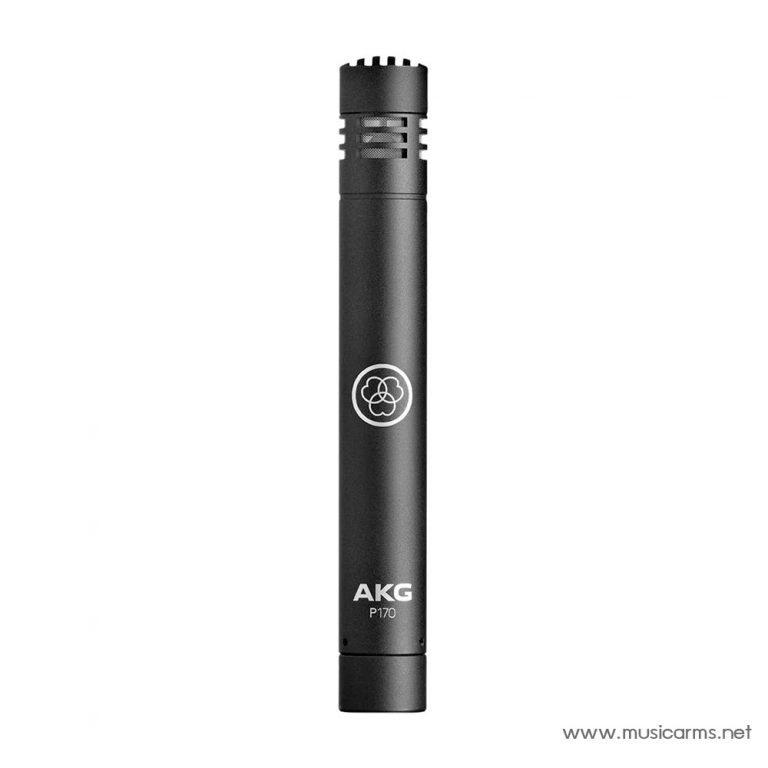

AKG P170 High-performance instrument microphone

The P170 is a small-diaphragm condenser microphone for recording of overheads, percussion, acoustic guitars and other strings. Its lightweight 1/2-inch true condenser transducer diaphragm delivers outstanding clarity and transient response. The P170 utilizes the experience of sound engineers from around the world and is considered an affordable alternative to the legendary AKG C451 B.

Specification

General Specifications

• Audio frequency bandwidth : 20 – 20000 Hz
• Equivalent noise level : 19 dB-A
• Sensitivity : 15 mV/Pa
• Signal to Noise : 75 dB-A
• Preattenuation Pad : -20 dB
• Electrical impedance : <= 200 Ohms
• Recommended load impedance : >=1000 Ohms
• Polar Pattern : Cardioid

Dimensions

• Height : 160 mm
• Diameter : 22 mm
• Net Weight : 130 g

Audio Output

• Type : Balanced XLR
• Gender : Male
• Contacts : 3-pin

Powering Interface

• Voltage : 44 to 52 V
• Current : <= 3 mA

Application

• Project Studio : Yes
• Live Instrument : Yes

Instrument

• Drums / Percussion : Yes
• Horns / Woodwinds : Yes
• Piano / Strings : Yes

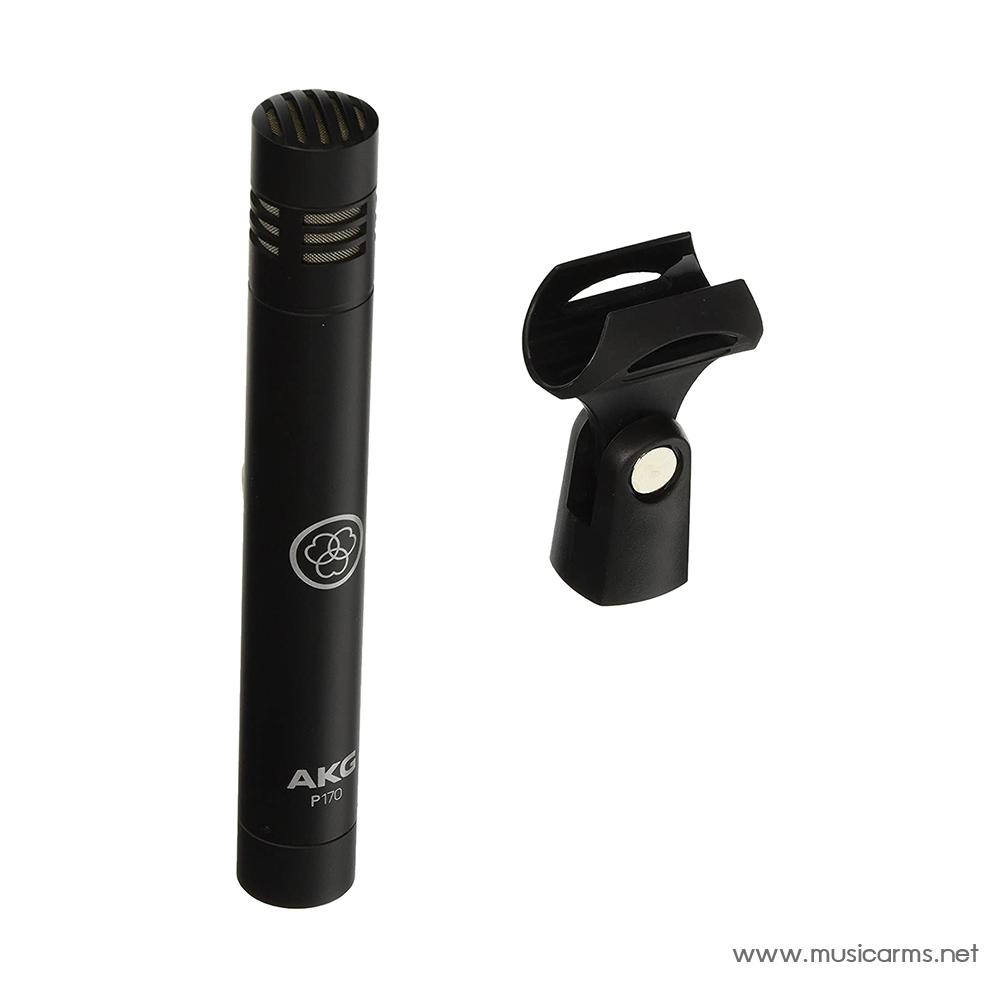

In The Box

• 1 x P170 Microphone
• 1 x Stand Adapter
