Adam Audio D3V ลำโพงมอนิเตอร์

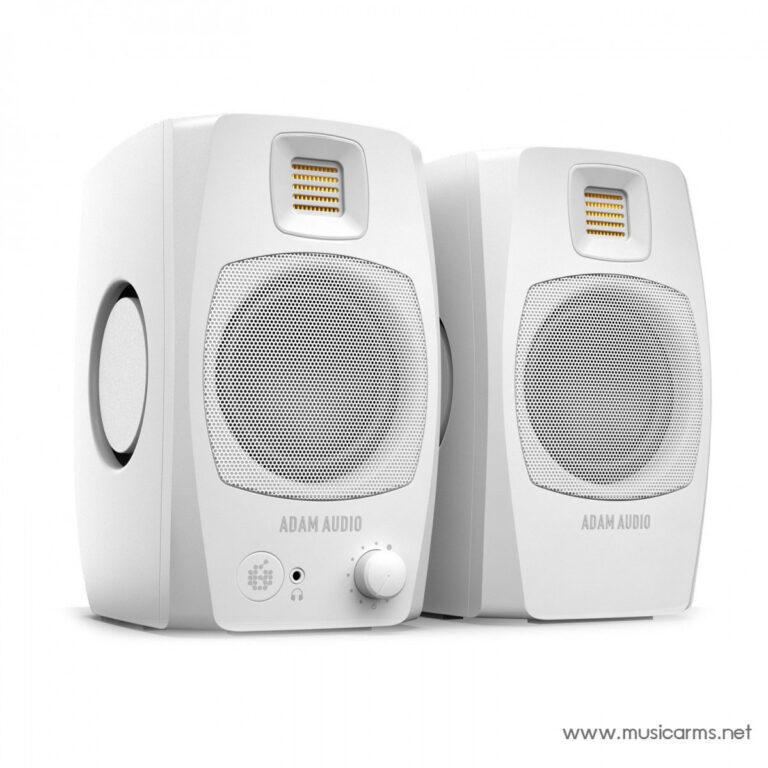

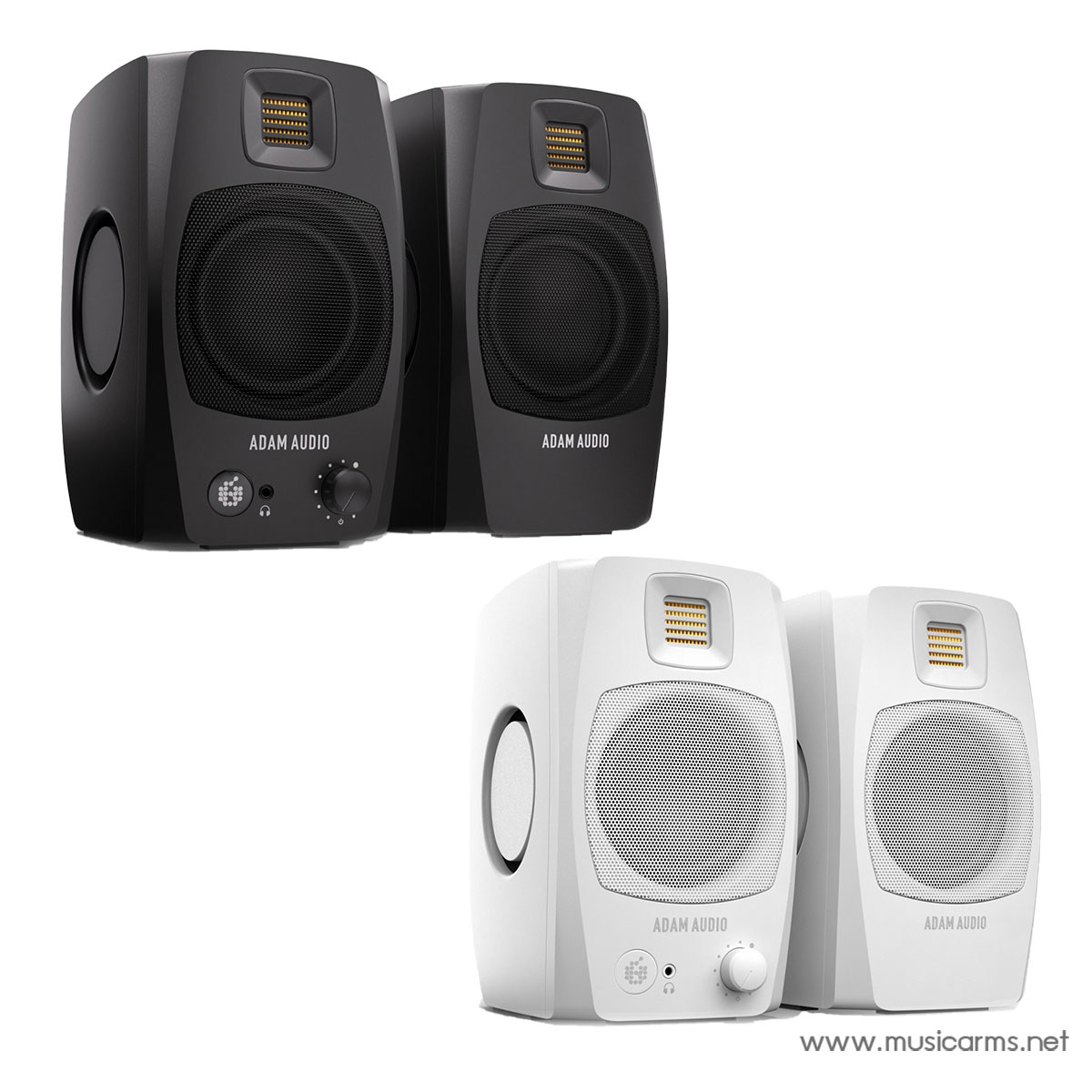

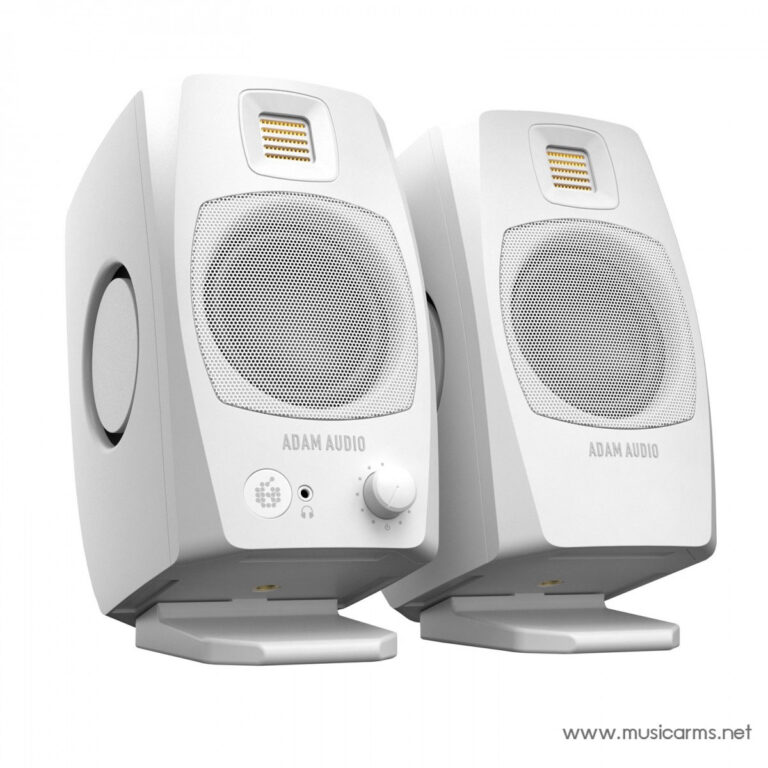

The ADAM Audio D3V is a fully active desktop monitoring system crafted for songwriters, producers, and music enthusiasts seeking studio-grade sound in a compact format. These monitors feature 3.5” aluminium woofers, 3.5” passive radiators, and the D-ART ribbon tweeter for precise, distortion-free sound across all frequencies. With a USB-C input for seamless digital connectivity, 80W amplifiers, DSP room acoustics tuning, and built-in headphone output, the D3V is a convenient, high-performance solution for both digital and analogue audio playback.

D-ART Ribbon Tweeter:

The D3V’s 1.5” Desktop Accelerated Ribbon Tweeter (D-ART) delivers clear, fatigue-free high frequencies. Hand-folded and driven by 40W amplifiers, this tweeter ensures precise high-frequency reproduction and features crossover fine-tuning via DSP technology, which improves accuracy across various listening environments. ADAM Audio’s quarter-century experience with ribbon tweeters ensures the highest quality.

Dual Passive Radiators:

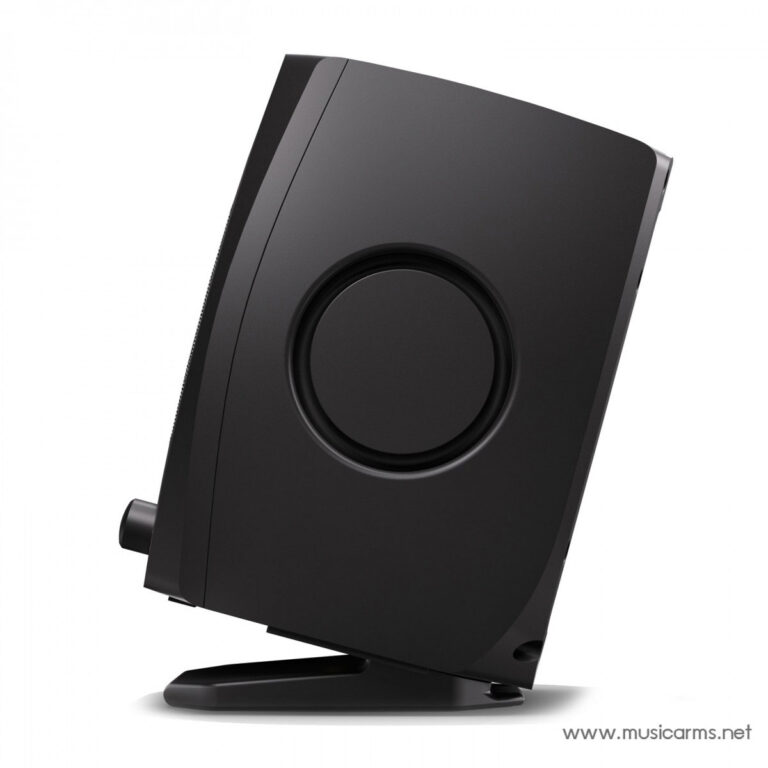

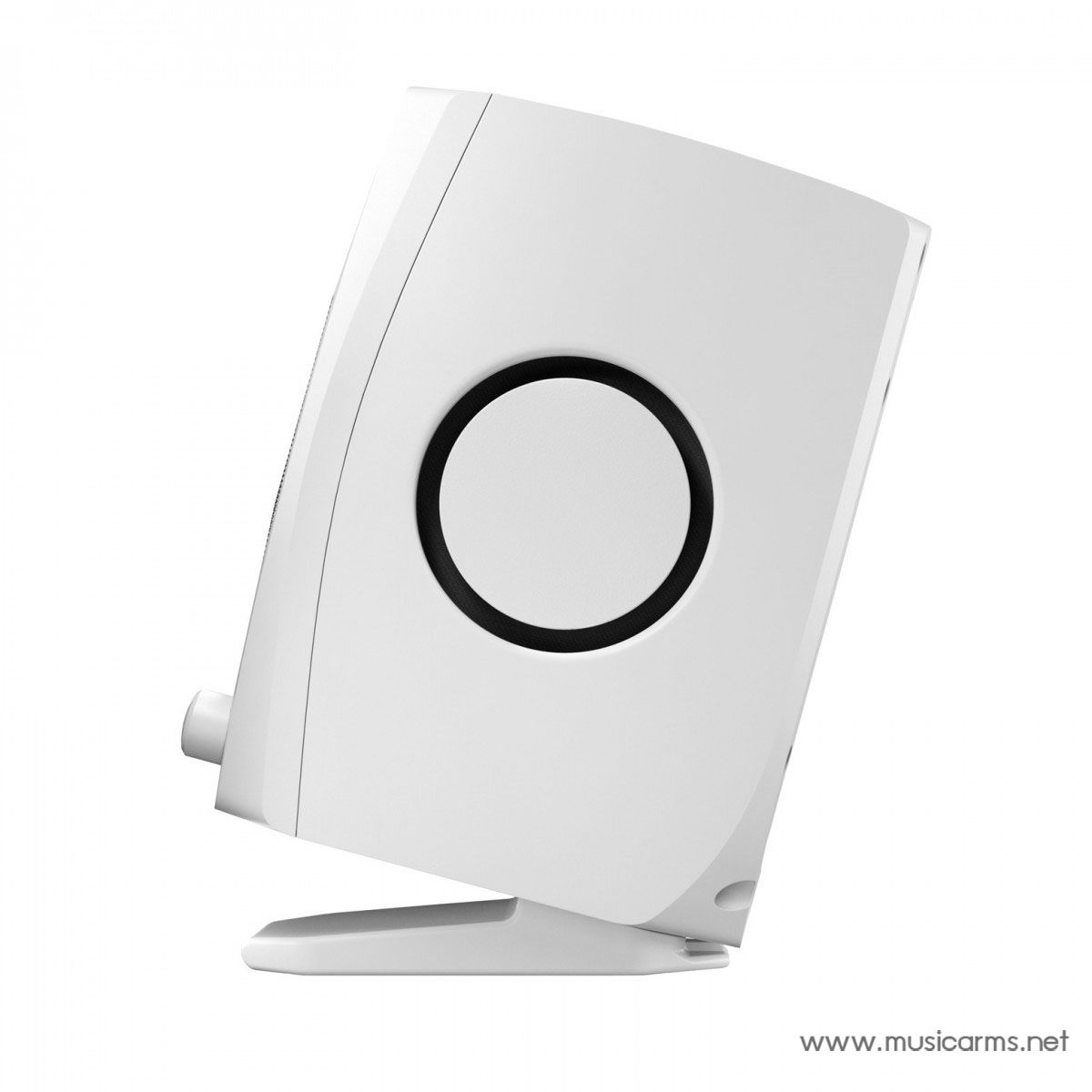

The D3V employs dual-sided passive radiators on each speaker to enhance the system’s bass response. Four stainless steel passive radiators, combined with the aluminium woofers, reinforce low frequencies down to 45 Hz. These radiators provide extra power for the lower end, producing clear, uncoloured sound even at high output levels.

USB-C Connectivity & Analog Inputs:

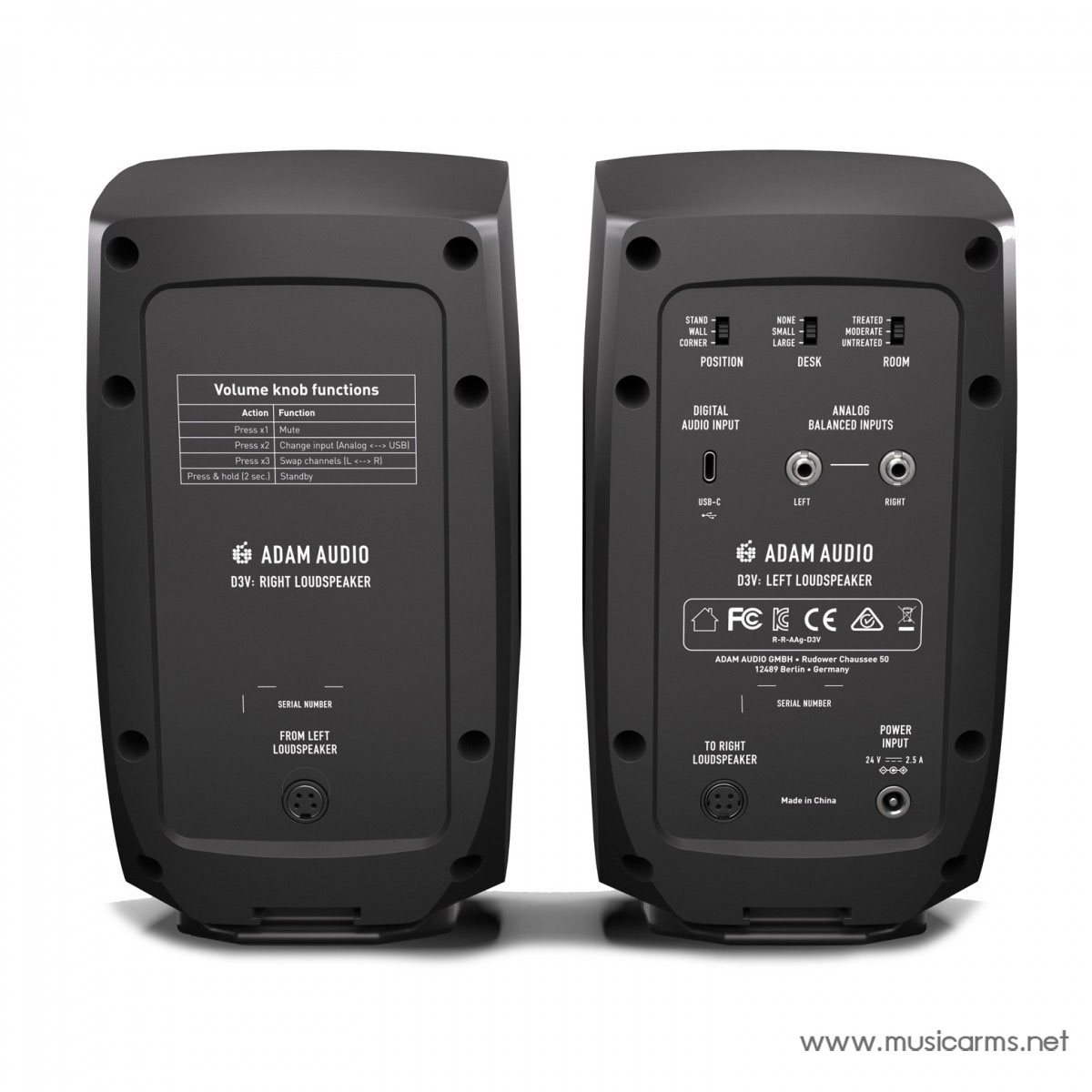

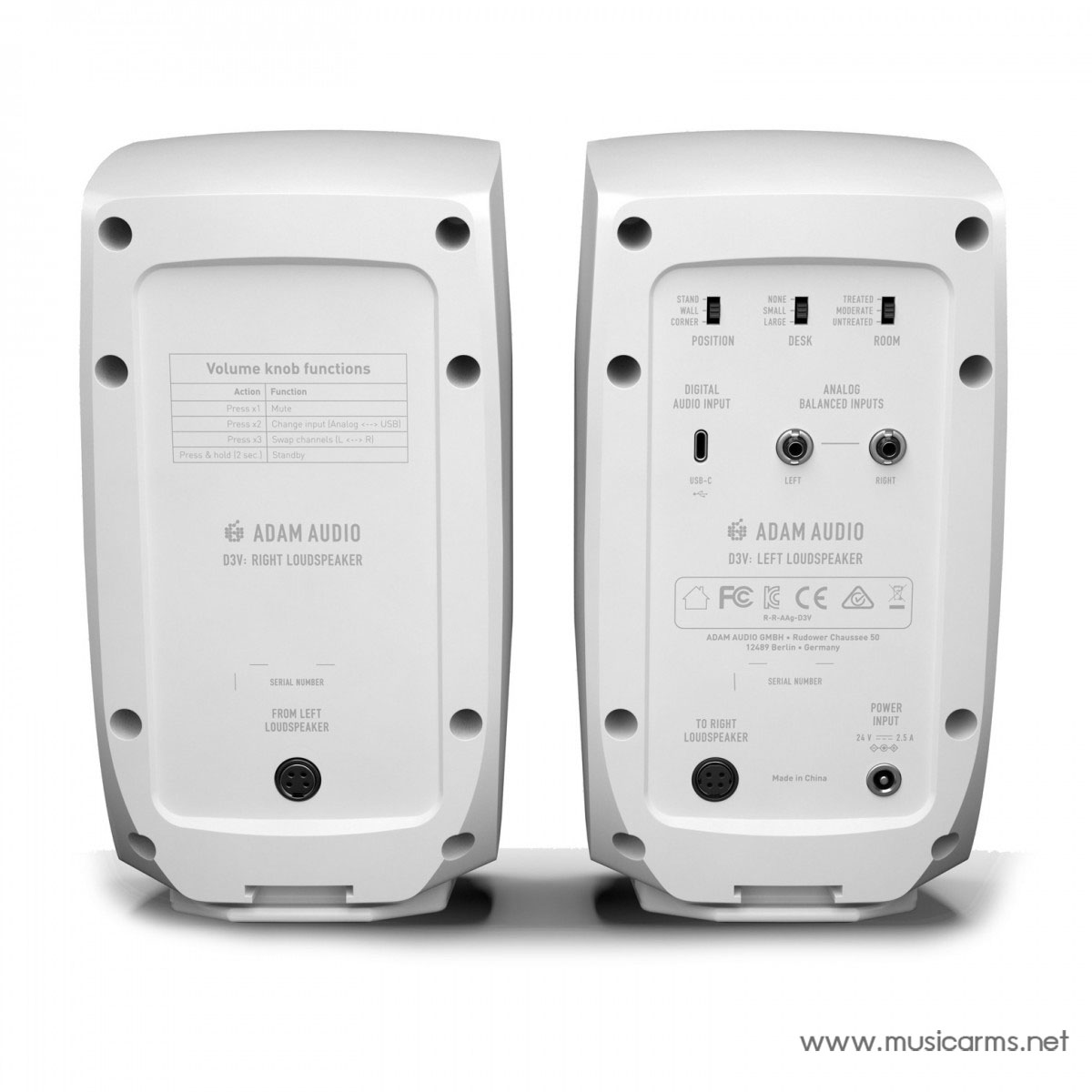

The D3V features a USB-C input, allowing the system to function as a digital output device for direct audio from computers and mobile devices, negating the need for an audio interface. The D3V also offers balanced ¼” TRS inputs for traditional analogue connections, perfect for connecting to audio interfaces or external hardware like synthesizers, drum machines, or DJ mixers.

Key Features:

• High-Fidelity Audio:
  3.5” aluminium woofers, 1.5” D-ART tweeters, and dual passive radiators deliver clear sound across all frequencies.
• USB-C Digital Input:
  Direct connection to computers and mobile devices eliminates the need for an additional interface for playback.
• Room Adaptation Controls:
  DSP-controlled switches adjust for speaker placement, desk size, and room acoustics for optimal sound.

• Frequency Response: 45 Hz – 23.2 kHz
• Amplifiers: Woofer (2 x 80W peak), Tweeter (2 x 40W peak)
• Inputs: USB-C, 2x Balanced ¼” TRS
• Max SPL: 92/96 dB SPL (rms/peak)
• Dimensions (H x W x D): 240 mm x 115 mm x 150 mm with stand
• Weight: 1.85 kg (Left speaker), 1.73 kg (Right speaker)

• การตอบสนองความถี่: 45 Hz – 23.2 kHz
• แอมพลิฟายเออร์: วูฟเฟอร์ (2 x 80W พีค), ทวีตเตอร์ (2 x 40W พีค)
• การเชื่อมต่อ: USB-C, 2x อินพุตบาลานซ์ ¼” TRS
• SPL สูงสุด: 92/96 dB SPL (rms/peak)
• ขนาด (สูง x กว้าง x ลึก): 240 มม. x 115 มม. x 150 มม. พร้อมขาตั้ง
• น้ำหนัก: 1.85 กก. (ลำโพงซ้าย), 1.73 กก. (ลำโพงขวา)
