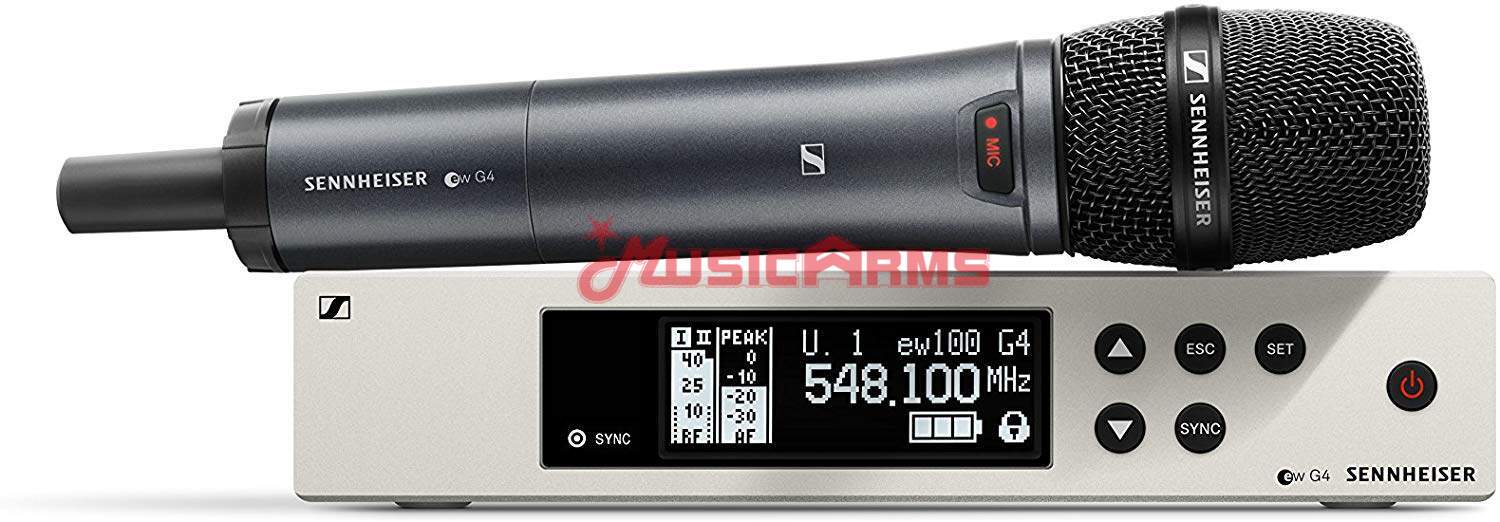

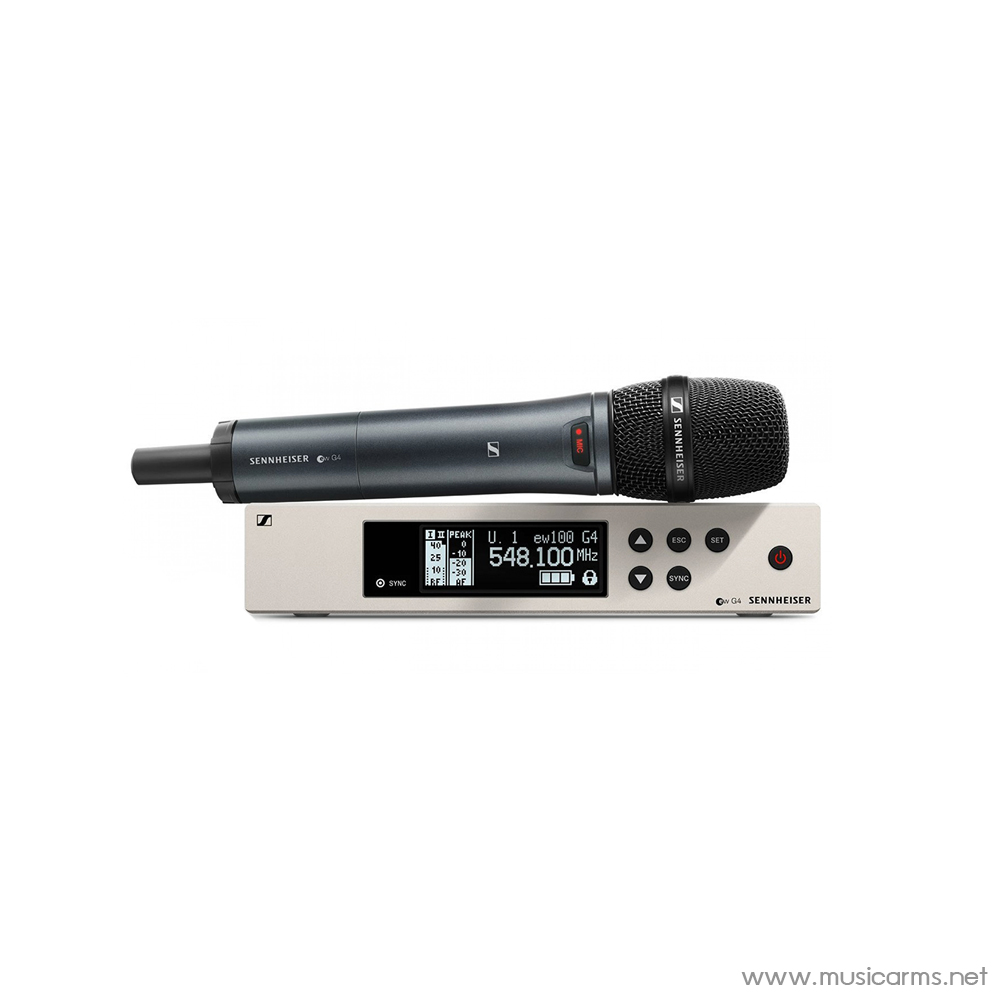

Sennheiser EW100 G4-865-S Wireless Microphone System ชุดไมค์ลอยเดี่ยวแบบมือถือ ย่าน UHF

Perfect Wireless System for Vocal Performances

Achieve great-sounding vocals with Sennheiser’s ew 865 G4. This wireless system’s SKM 100 G4-S handheld transmitter features a condenser capsule with a tight supercardioid pattern, so it picks up the vocalist while eliminating feedback. The ew 865 G4 also includes an EM 100 G4 rackmount receiver, which offers 1,680 tunable UHF frequencies across a 42MHz bandwidth for interference-free reception. This system is highly expandable — you can link up to twelve receivers for simultaneous setup. And you’ll benefit from a 330-foot transmission range and up to eight hours of operation. Beyond that, the ew 865 G4 is backward-compatible with previous evolution systems, ensuring that your past investment continues to pay off into the future.

Pro-quality sound at a great price

The stage is yours — no matter how big, no matter how small. No matter what, when, or where you’re presenting, the ew 865 G4 gives you pro-standard sound support. Sennheiser’s evolution wireless G4 series delivers the same advanced technology used on concert stages all over the world, at an amazing price.

Rugged, powerful, and lightweight transmitter

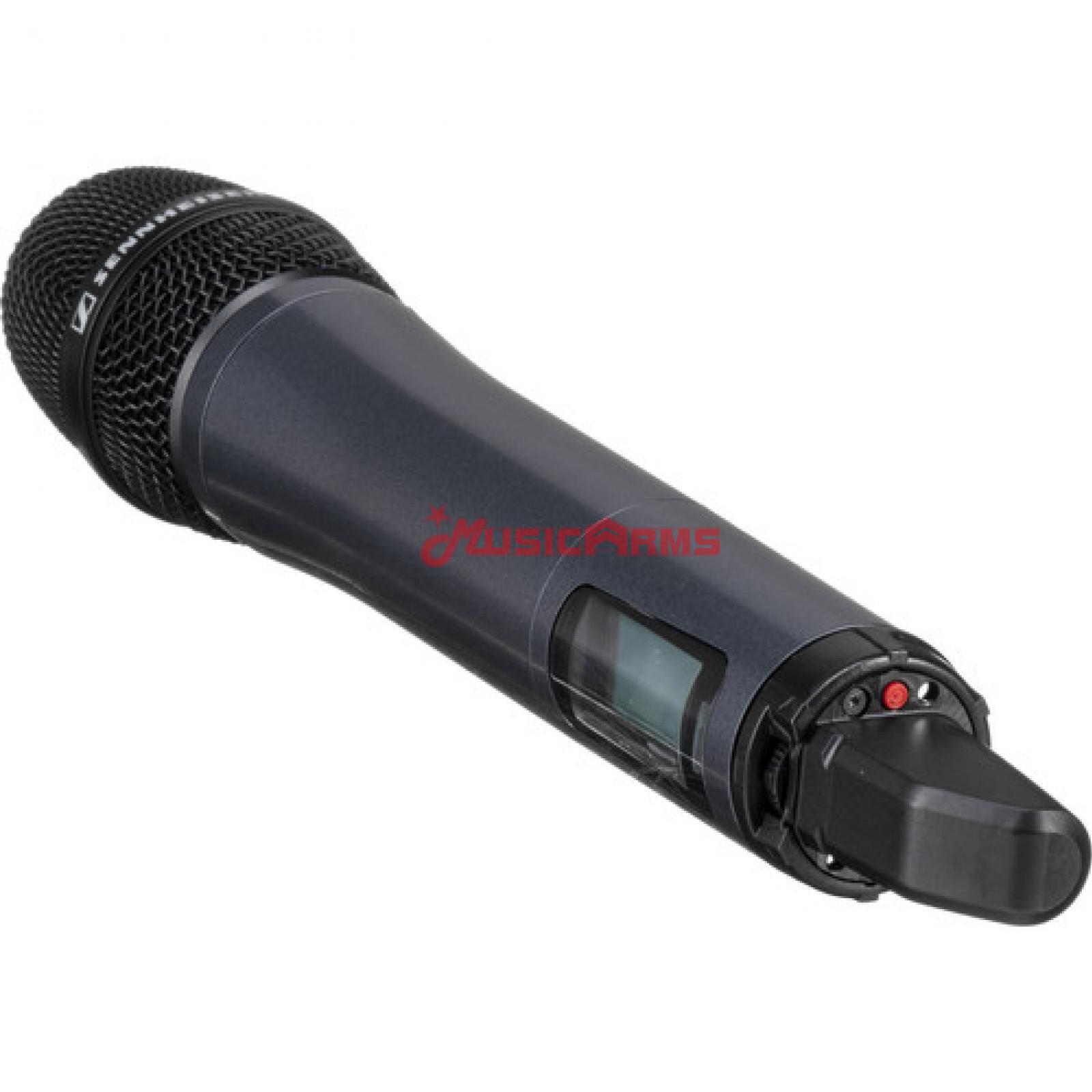

The SKM 100 G4-S handheld transmitter includes an infrared sync function, which tunes it to the EM 100 G4 receiver with a simple push of a button. Its mute switch eliminates unwanted sounds when it’s not in use, and its e865 capsule utilizes the very best in condenser microphone technology to achieve new standards of quality and sound. The e865’s supercardioid pickup pattern yields superior feedback and off-axis rejection, while it exhibits extended dynamic response, pronounced presence, and vocal punch.

Complete with the extras you need

The ew 865 G4 comes complete with a microphone clip, a rack kit, a linking cable, and two AA batteries. You don’t need additional components. Sweetwater knows you want a hassle-free wireless experience, with pro performance and ease of use. With the Sennheiser ew 865 G4, you get it.

Sennheiser ew 865 G4 Features:

• Rugged aluminum housing can withstand the rigors of stage use
• e865 capsule exhibits extended dynamic response, pronounced presence, and vocal punch
• Mute switch eliminates unwanted sounds when mic is not in use
• 1680 frequencies within a 42MHz switching bandwidth for greater tuning flexibility
• Enhanced frequency bank system with up to 12 compatible frequencies
• High-quality true diversity reception
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Automatic frequency scan feature searches for available frequencies
• Enhanced AF frequency range
• Increased range for audio sensitivity
• Wireless synchronization of transmitters via infrared interface
• User-friendly menu operation with more control options
• High-contrast LCD display with blue sync LED and dedicated Escape button
• Auto-Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Transmitter feature battery indication in 4 steps, also shown on receiver display
• Handheld transmitter with easy-exchangeable microphone modules from evolution series
• Integrated Equalizer and Soundcheck mode
• Contacts for recharging BA 2015 accupack directly in the transmitter
• Benefit from a transmission range of up to 330 feet and up to 8 hours of operation time
• Link up to 12 receivers for simultaneous easy setup
• Backwards-compatible with previous evolution G1, G2, and G3 systems

Sennheiser ew 165 G4 Includes:

• 1 EM 100 G4 rackmount receiver
• 1 SKM 100 G4-S handheld transmitter
• 1 MZQ 1 microphone clip
• 1 NT 2 power supply unit
• 2 antennas
• 2 stacking elements
• 2 AA batteries
• 1 GA3 rack kit
• 1 RJ10 linking cable
• Operating instructions

EM 100 G4

• Frequency range

  1G8: 1785 – 1800 MHz

  A: 516 – 558 MHz

  A1: 470 – 516 MHz

  AS: 520 – 558 MHz

  B: 626 – 668 MHz

  C: 734 – 776 MHz

  D: 780 – 822 MHz

  E: 823 – 865 MHz

  G: 566 – 608 MHz

  GB: 606 – 648 MHz

  K+: 925 – 937,5 MHz

• Dimensions Approx. 190 x 212 x 43 mm

• Compander Sennheiser HDX

• THD, total harmonic distortion ≤ 0.9 %

• Weight Approx. 980 g

• Audio output

  6.3 mm jack socket (unbalanced): +12 dBu

  XLR socket (balanced): +18 dBu

• Signal-to-noise ratio ≥ 110 dBA

• Switching bandwidth up to 42 MHz

• Peak deviation ±48 kHz

• Nominal deviation ±24 kHz

• Modulation Wideband FM

• Power supply 12 V DC

• Antenna connector 2 BNC sockets

• Current consumption 300 mA

• Adjacent channel rejection Typically ≥ 65 dB

• Intermodulation attenuation Typically ≥ 65 dB

• Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

• RF sensitivity < 2.5 μV for 52 dBA eff S/N

• Squelch low: 5 dBµV middle: 15 dBµV high: 25 dBμV

• Equalizer

  Preset 1: Flat

  Preset 2: Low Cut (-3 dB at 180 Hz)

  Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

  Preset 4: High Boost (+6 dB at 10 kHz)

• Temperature Range -10 °C to +55 °C

• Receiver Principle True diversity

• Blocking ≥ 70 dB

SKM 100 G4-S

• Dimensions Approx. Ø 50 x 265 mm

• Compander Sennheiser HDX

• THD, total harmonic distortion ≤ 0.9 %

• Weight (incl. batteries) approx. 450 g

• Signal-to-noise ratio ≥ 110 dBA

• RF output power Max. 30 mW

• Switching bandwidth up to 42 MHz

• Peak deviation ±48 kHz

• Nominal deviation ±24 kHz

• Operating time Typically 8 h

• Modulation Wideband FM

• Power supply 2 AA batteries, 1.5 V or BA 2015 accupack

• Current consumption

  at nominal voltage: typ. 180 mA

  with transmitter switched off: ≤ 25 µA

• Input impedance 40 kΩ

• Max. Input voltage 3 Veff

• Powering 3 V battery / 2.4 V rechargeable battery

• Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

• AF frequency response 80 – 18,000 Hz

• Temperature Range -10 °C to +55 °C

• Frequency stability ≤ ±15 ppm

MME 865-1

• Sound pressure level (SPL) 152 dB SPL

• Transducer principle pre-polarized condensor microphone

• Pick-up pattern supercardioid

• Sensitivity 1.6 mV/Pa
