VOX AC30HW2X

A Classic, Handwired Vox Amp Loaded with Alnico Blues!

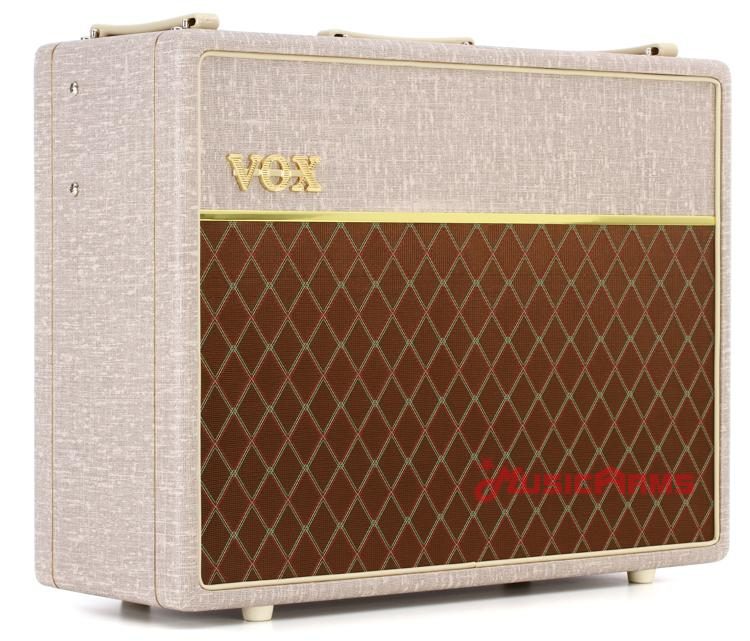

The 30-watt Vox AC30HW2X handwired combo guitar amplifier transports you to the golden age of Vox tone. A retro ox blood grill cover and Vintage fawn-colored vinyl over a birch ply cabinet gives the AC30HW2X classic style and sound. It’s a traditional 2-channel design with both a top boost channel that has a hot/cool switch and a normal channel that has a bright switch. At its heart, the AC30HW2X sports a painstakingly handwired turret board assembly, containing three ECC83/12AX7 preamp tubes, four EL84 power tubes, and a GZ34 rectifier tube – all of which are matched Ruby Tubes, which provide impeccable tone and extended dynamic range. And, although a pair of 12″ Celestion Alnico Blue speakers add another vintage touch, the AC30HW2X’s OP mode switch, which cuts the output power level in half, is a brilliantly modern feature that lets you get the classic tone you want at a lower level.

Vox AC30HW2X Combo Guitar Amplifier Features at a Glance:

• 30-watt power output (8 and 16 ohms)
• Handwired turret board construction
• Birch ply cabinet features solid bracing and a natural high-frequency diffuser
  All-tube design
• 2 x 12″ Celestion Alnico Blue speakers
• 3 x ECC83/12AX7 preamp tubes, 4 x EL84 power tubes, and 1 x GZ34 rectifier tube
• Fitted with matched Ruby Tubes for extended dynamic range
• Traditional Vox 2-channel design (top boost and normal)
• High and low inputs for each channel
• Normal channel provides an additional bright switch
• Top boost channel provides a hot/cool switch to achieve even more gain
• Master volume/bypass switch completely bypasses the master volume section
• OP mode switch cuts the output power level in half
• Vintage fawn-colored vinyl, reminiscent of the 1960 classic AC30
• 2 x 1/4″ output jacks for extension cabinets
• Included VFS1 footswitch controls the top boost channel’s hot/cool switch
• Premium, custom-fit dust cover included

Tech Specs

• Type: Tube
• Number of Channels: 2
• Total Power: 30W
• Speaker Size: 2 x 12″
• Preamp Tubes: 3 x ECC83/12AX7
• Power Tubes: 4 x EL84, 1 x GZ34 (Rectifier)
• EQ: 2-band
• Inputs: 4 x 1/4″
• Outputs: 2 x 1/4″ (internal/external speaker)
• Footswitch I/O: 1 x 1/4″ (boost hot/cool)
• Footswitch Included: Yes, 1-button footswitch
• Power Source: Standard IEC AC cable
• Height: 21.65″
• Width: 27.76″
• Depth: 10.24″
• Weight: 70.6 lbs.
