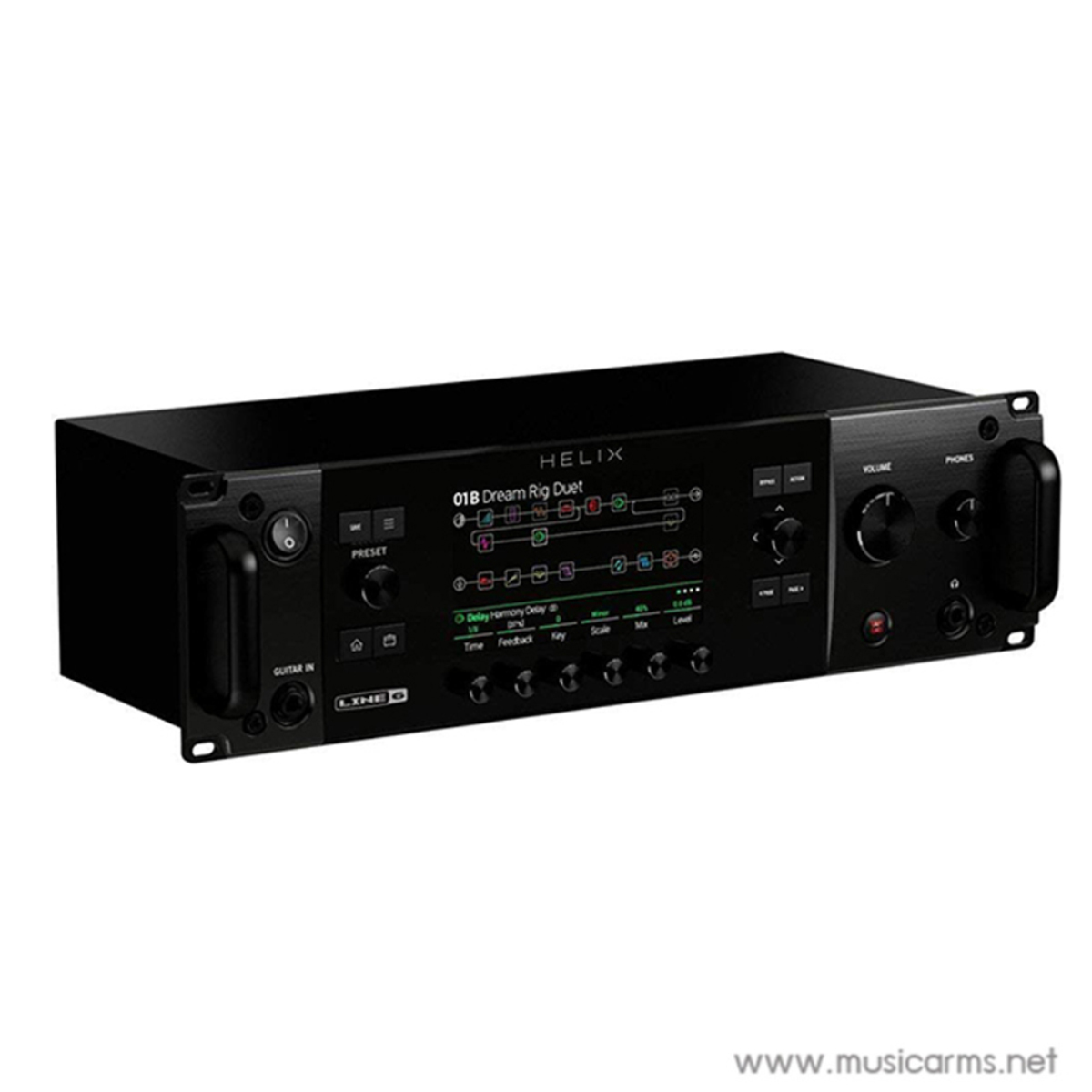

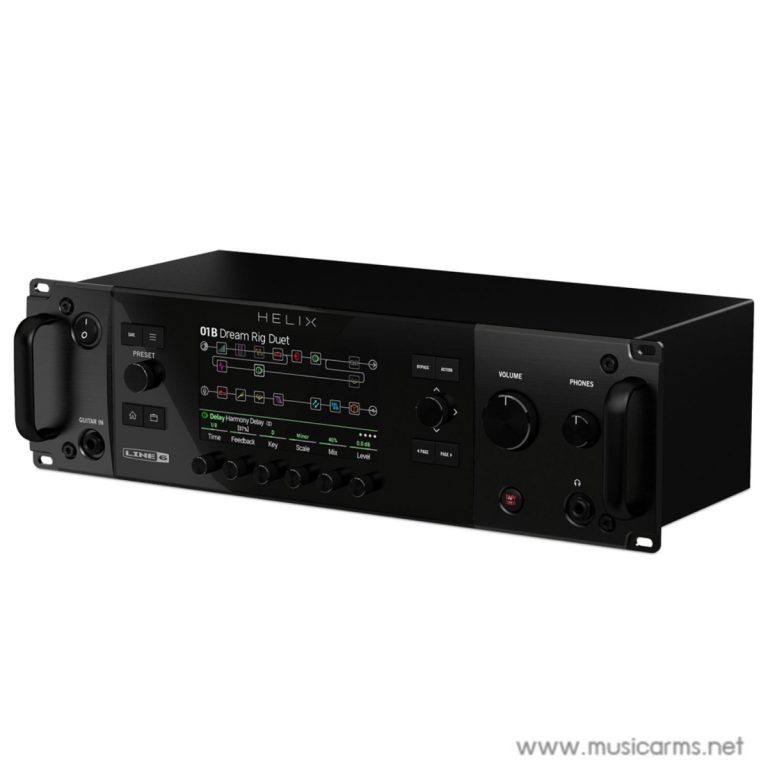

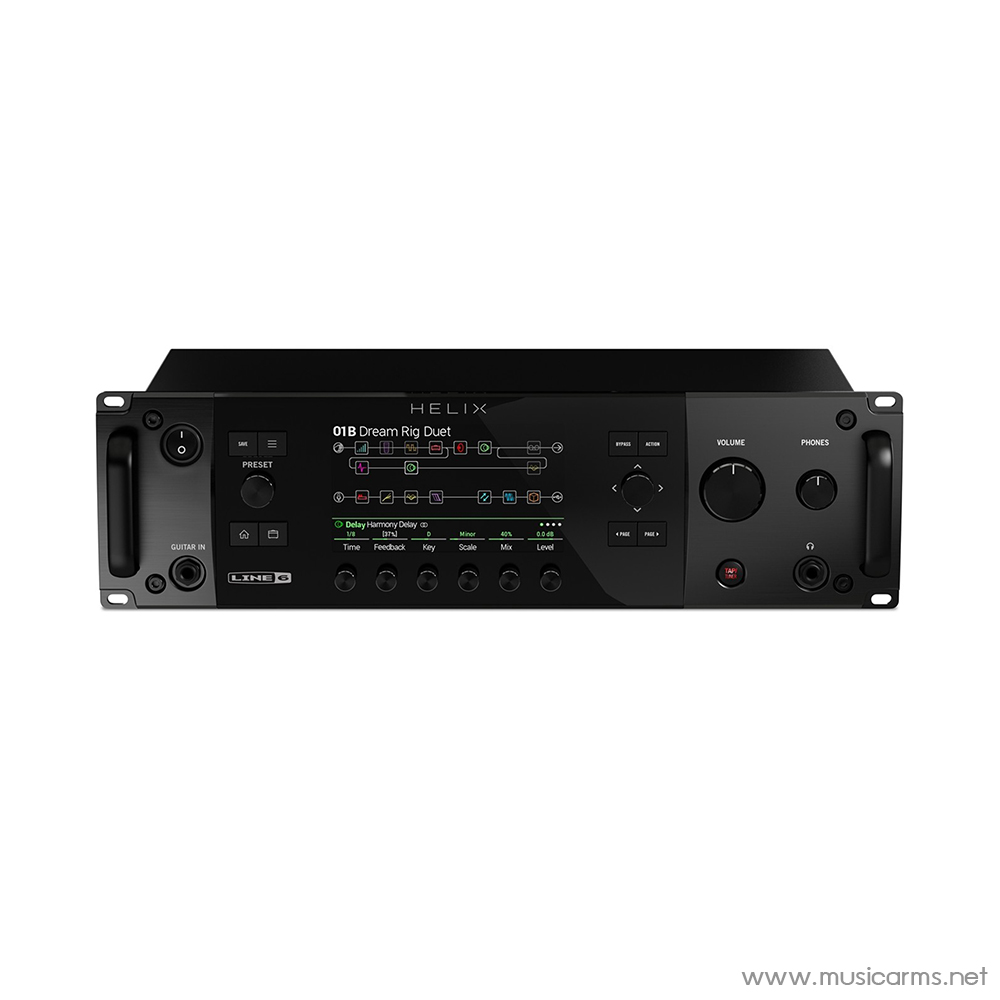

Line 6 Helix Rack มัลติเอฟเฟค

Helix Power in Rack Form

The Line 6 Helix Rack multi-effects processor reaches far beyond anything you’ve ever experienced. It can be a great addition to your rig, a streamlined controller for your existing system, or an incredible-sounding guitar interface for recording in the studio. It can even replace your entire effects setup! Equipped with Line 6’s new HX modeling engine, Helix Rack will let you hear brand-new models of modern and vintage amps, cabs, mics, and effects, all designed to sound and feel amazing. And your rig-integration options are limitless, with Helix Rack’s astoundingly comprehensive I/O and routing capabilities. Line 6 has long been at the front of the modeling revolution, and Helix Rack is the professional guitar processor Line 6 was destined to make.

Tech Specs

• Type:3U Multi-effects Guitar rack
• Number of Effects:70 (104 with firmware updates)
• Amp Modeling:Yes
• Number of Models:62 amps, 37 cabs, 16 mics (with firmware updates)

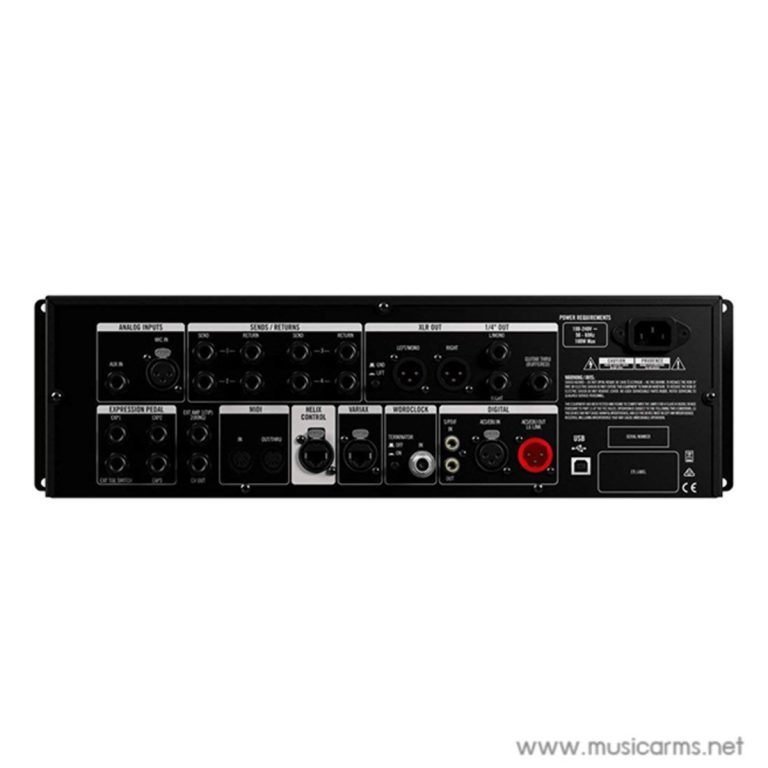

• Analog Inputs:1 x XLR, 1 x 1/4″ (Guitar), 1 x 1/4″ (Aux), 4 x 1/4″ (Expression Control), 4 x 1/4″ (Return)
• Analog Outputs:2 x XLR, 2 x 1/4″, 1 x 1/4″ (Thru), 1 x 1/4″ (Headphones), 4 x 1/4″ (Send)
• Digital Inputs:1 x XLR (AES/EBU), 1 x Coax (S/PDIF)
• Digital Outputs:1 x XLR (AES/EBU, L6 Link), 1 x Coax (S/PDIF)
• MIDI I/O:In, Out/Thru
• USB:1 x Type B
• Other I/O:2 x 1/4″ (Ext amp switching, CV out), 2 x Ethernet (Helix control, Variax in)
• Clock I/O:1 x BNC (Word Clock in)
• Rack Spaces:3U
• Height:5.25″
• Depth:9.5″
• Width:19″
• Weight:11.8 lbs.
• Manufacturer Part Number:99-050-2005
