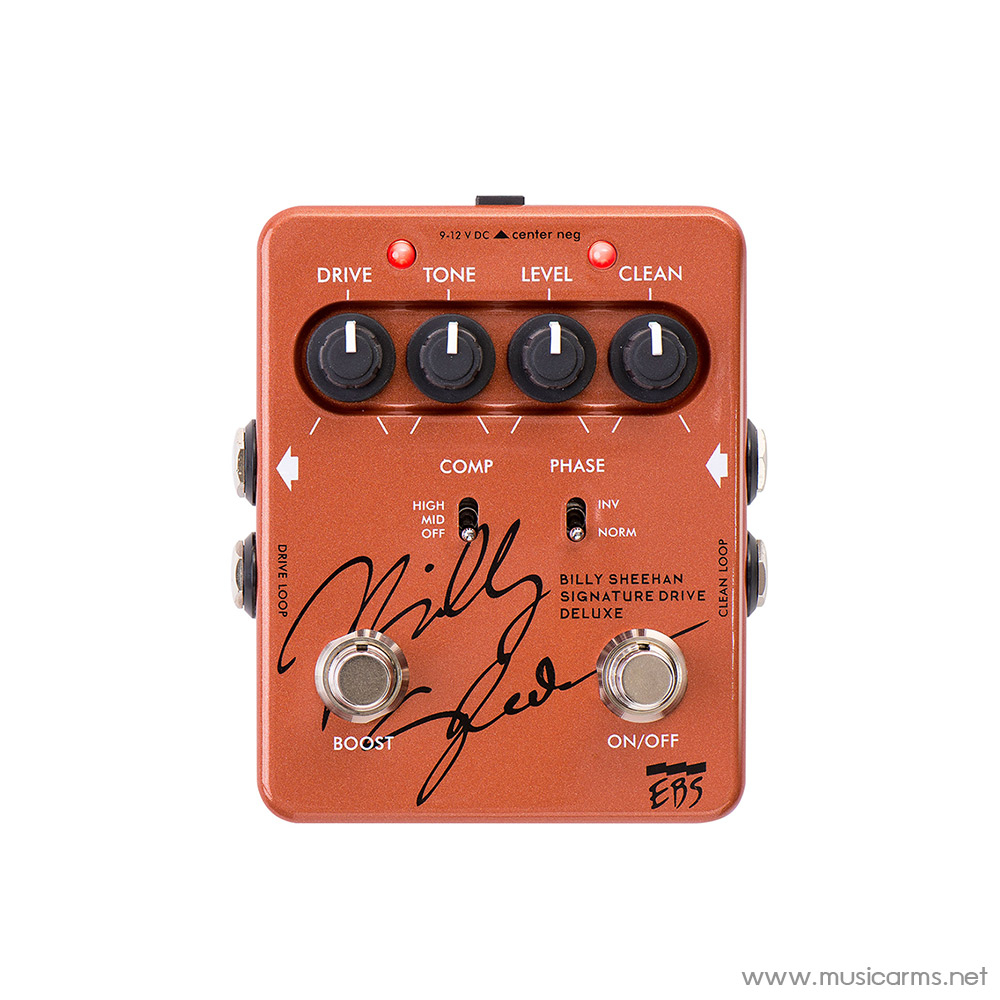

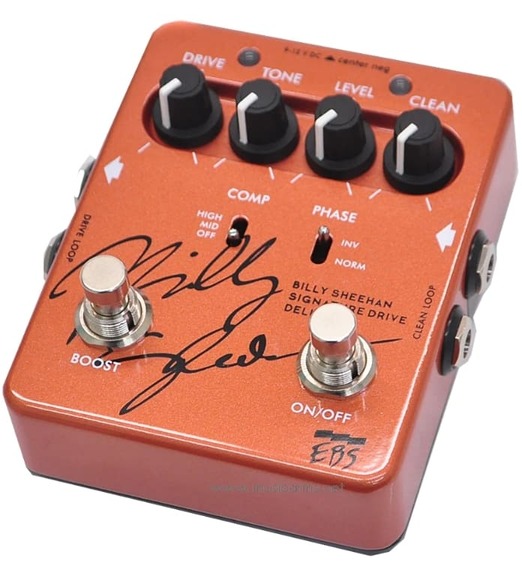

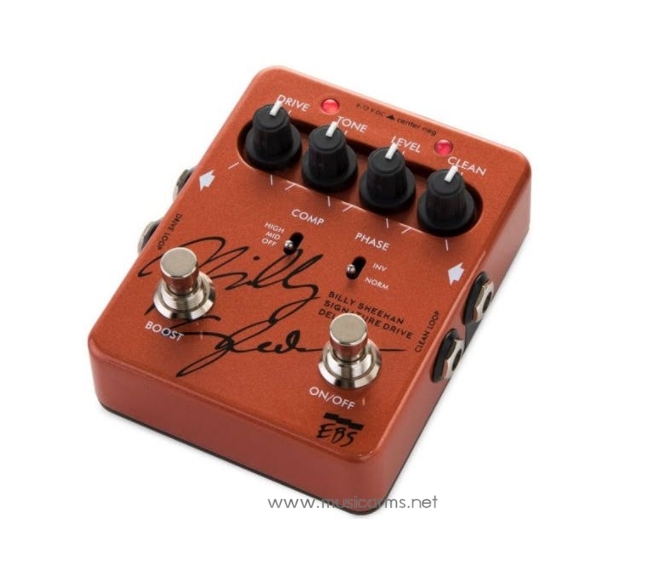

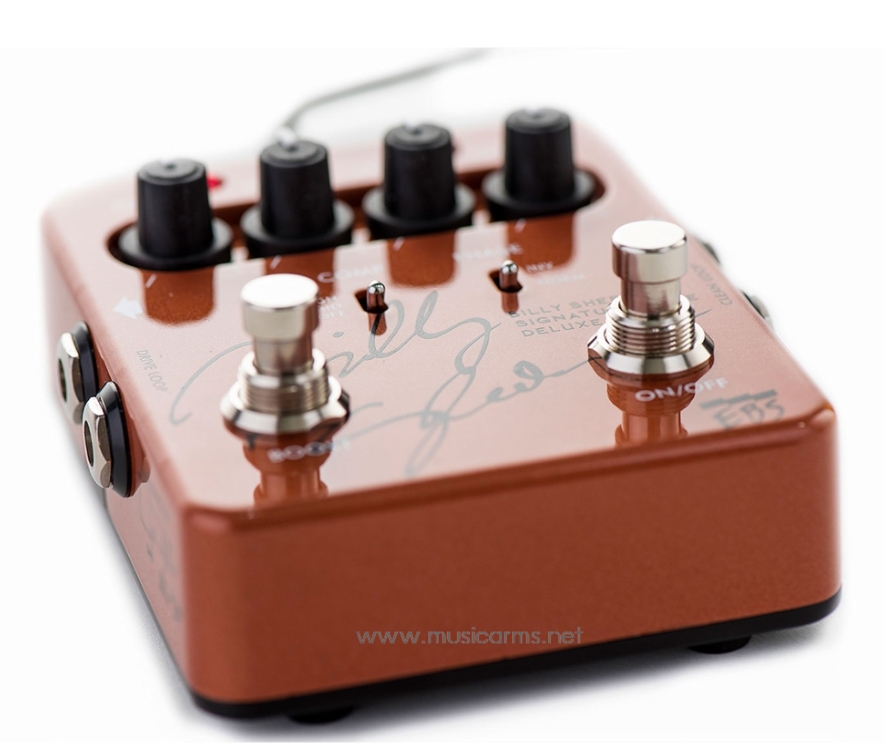

เอฟเฟคเบส EBS Billy Sheehan Signature Drive Deluxe

The Billy Sheehan signature drive deluxe is the new extended version of the previous signature model. It is a complete analog design with exceptional features to turn it into your own signature pedal. It was developed by EBS in close cooperation with Billy himself.

Features

• Boost Drive Footswitch. NEW!
• Phase Inverter Switch. NEW!
• Drive, Tone, Level and Clean controls.
• Three Compressor Modes – High, Mid, Off.

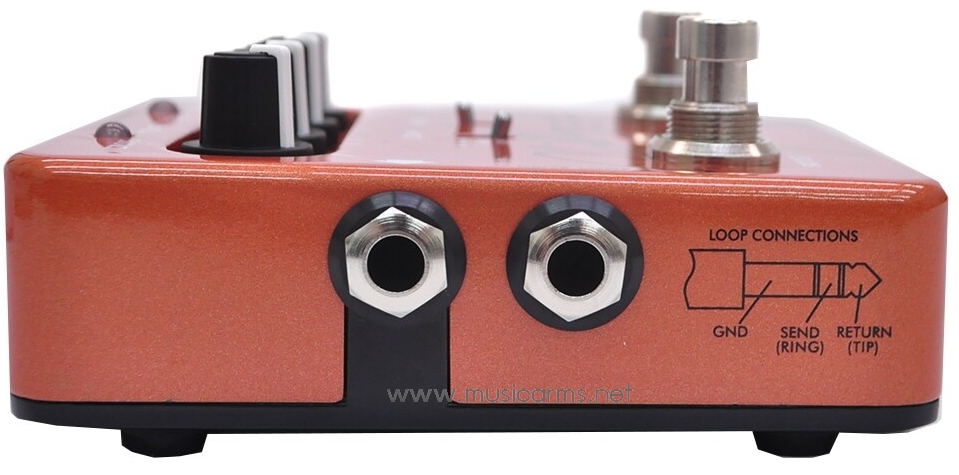

• Clean Loop and Drive Loop (use an insert cable, such as the EBS ICY-30 to separate send and return).
• Low Noise Relay Type Footswitches. NEW!

Advanced Features Inside

• Replaceable Drive Circuit. NEW!*
• Fine tuning trimmers to adjust Threshold level of compressor (THR.) and the level of Compression when mode switch is set to MID (COMP).
• Trim pot to set the BOOST switch level inside.
• Power options 9V DC battery or EBS AD-9+ Power Supply (not included).
• * 8-pin Dual Inline Op-Amp Controlling Drive Circuit.

Billy’s words about the EBS Billy Sheehan Signature Drive Deluxe:

” My new Deluxe pedal has more gain! It really screams. Much more than the first version, but you can always tone it down if you like. Also, one very unique feature that I think will appeal to a lot of people is the “swappable” 8 pin dual inline op amp. You can basically make it your own signature drive by replacing the main drive chip with another of your choice! Also, there’s a phase reverse switch for the drive channel that gives tones a very different dimension. And a “boost” switch to kick the drive into a much higher gain. All exciting new features that will make it easier for players to fine tune this device to their own personal needs.”

Specification

• Nominal Input Level – 8 dBv
• Input Impedance 700 kohms
• Gain Range*
  Drive 20 – 50 dB
  Boost +3- 10 dB adjustable
• Tone Filter Range 175 – 4500 Hz Q 0.7-0.9
• Nominal Loop Level -8 dB
• Output Impedance Loops 2 kohms
• Input Impedance Loops 47 kohms
• Mix Level
  Drive Channel +3 dB max
  Clean Channel +6 dB max
• Compressor
  Ratio 5:1 (max)
  Threshold -25 +6 dB
  Attack Time (80%) < 7 ms
  Release Time (80%) 75 ms typ
  Makeup gain 0, +3, +6 dB
• Output Impedance < 100 ohms
• Dimensions W x H x D 3.5″ x 4.5″ x 1.4″ (90 x 115 x 35 mm)
• Weight 480g (1.07 lb.)
• Type Analog Effect, Relay type Switching

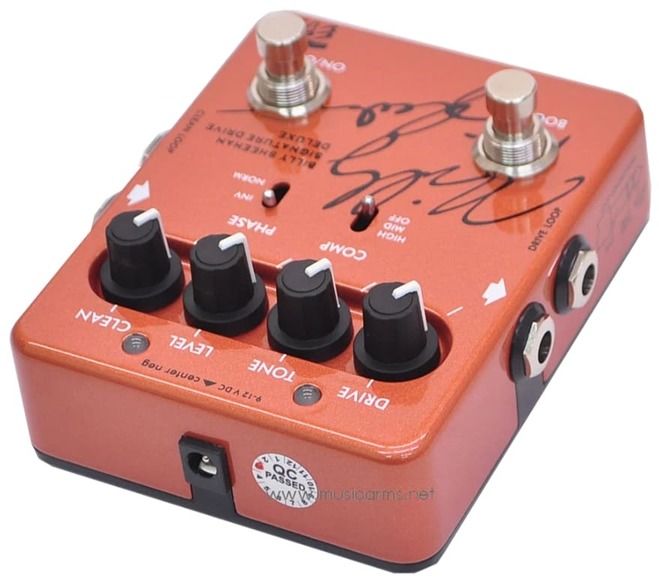

• Power Requirements 9 – 12 V DC Regulated, 35 mA max
