เครื่องส่งสัญญาณ SHURE AD3=-P55 เครื่องส่งสัญญาณไร้สาย แบบ Plug-On
ราคา : 37,900 บาท
ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com
วีดีโอ
Description
The SHURE AD3 = -P55 Wireless Transmitter is Plug-On (without microphone), lightweight, durable and designed to resist sweat, moisture from the SHURE brand.
PRODUCT DETAILS
The Axient Digital AD3 plug-on transmitter transforms any microphone into an advanced, portable Axient Digital AD Series wireless microphone, delivering impeccable audio quality and RF performance, wide-tuning, and encryption features. Compatible with Axient Digital AD4D and AD4Q receivers in Standard or High Density modes, AD3 features a custom, fast, and secure XLR connector design, support for both AA and Shure SB900-series rechargeable battery options, and simple, user-friendly controls and menus. The AD3 is housed in a lightweight, rugged, metal chassis and is designed to resist sweat, moisture, and debris.
- Patent-pending locking XLR connector for secure, wobble-free connection

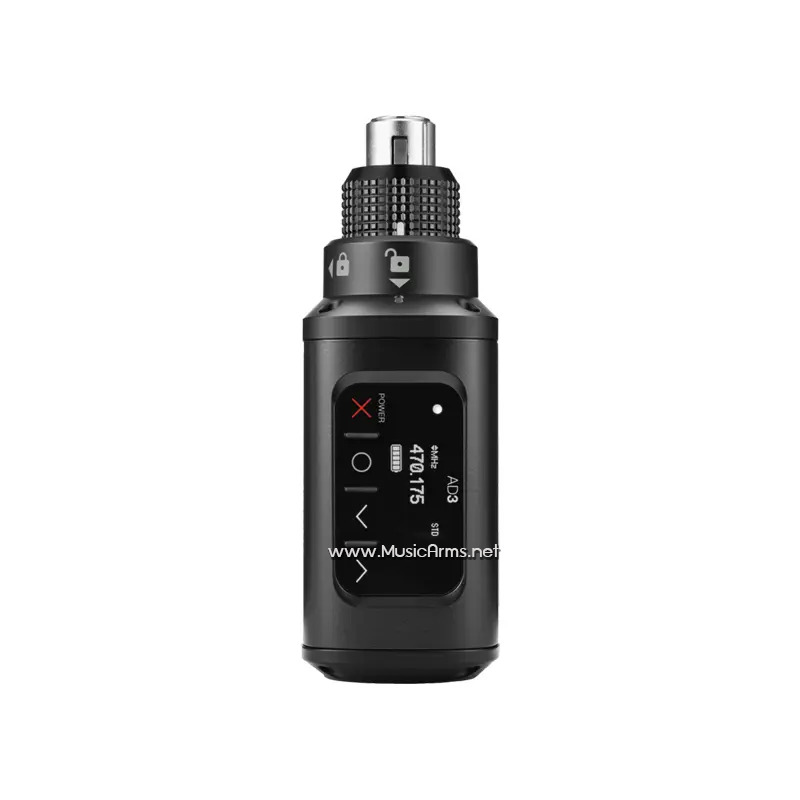

- OLED display with easy-to-navigate menu and controls
- Rugged metal construction that is resistant to dust and moisture
- Automatic input staging optimizes gain setting
- AES 256-bit encryption-enabled for secure transmission
- 300 feet (100 meter) line-of-sight operating range
- Selectable modulation modes optimize performance for spectral efficiency
- Standard – Optimal coverage, low latency
- High density – Dramatic increase in max system channel count
- Switchable power levels (2/10/35 mW, region dependent)

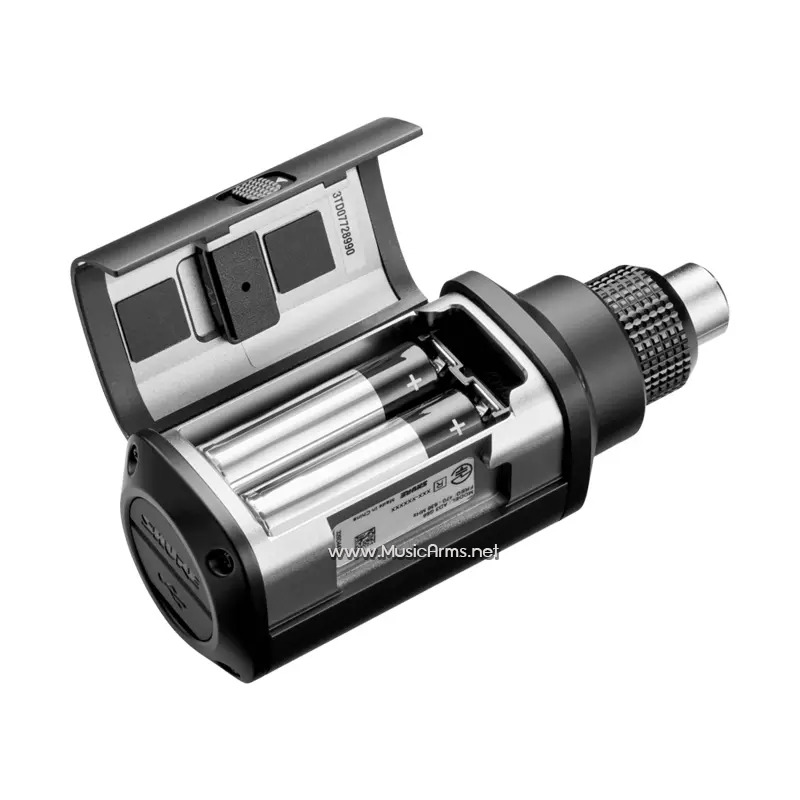

- AA battery (included) or Shure SB900A rechargeable battery (sold separately) options

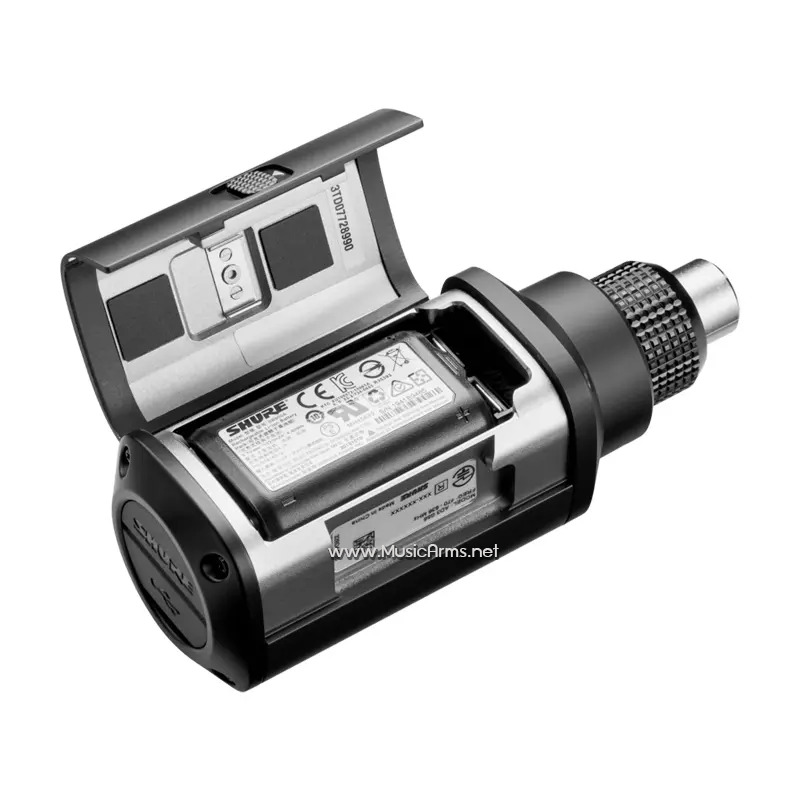

- Optional Shure SB900A lithium-ion rechargeable battery option provides up to 8 hours of continuous use, precision metering, and zero memory effect
- External power and charging option over USB-C port
- Switchable phantom power (off, +12V, +48V)

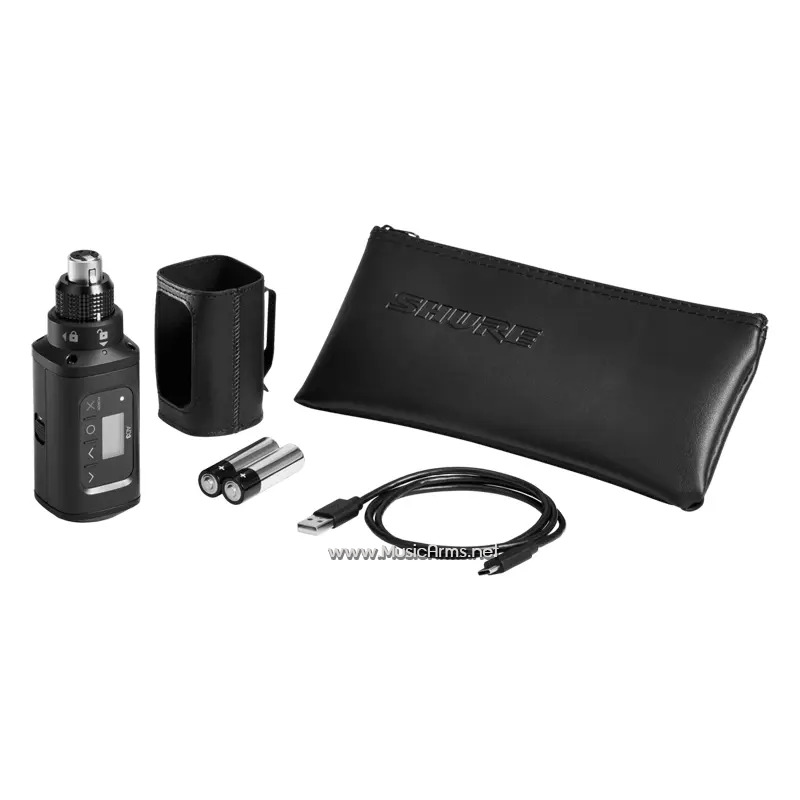

- Included: 2 x AA alkaline batteries, USB-A to USB-C cable, belt clip/pouch, and zippered bag for storage
Specification
S P E C I F I C A T I O N S
(SUBJECT TO CHANGE)
- Mic Offset Range
–12 to 21 dB (in 1 dB steps) - Battery Type
Shure SB900 series rechargeable
li-ion or AA batteries 1.5 V - Battery Runtime @ 10 mW
Shure SB900A: over 8 hours
Alkaline: over 7 hours
See Battery Runtime Chart - Dimensions
126 × 44.5 × 44.5 mm (5.0 × 1.8 × 1.8 in.) - Weight
240 g (8.0 oz), without batteries - Housing
Cast metal - Operating Temperature Range
–14 to 122 °F (–10 to 50 °C) - Storage Temperature Range
–40 to 165 °F (–40 to 74 °C)
AUDIO INPUT
- Connector
3-pin female XLR - Configuration
balanced - Impedance
Pad (–12 dB): 26.64 kΩ
0 dB: 6.64 kΩ
Boost (12 dB): 6.64 kΩ - Maximum input Level 1 kHz at 1% THD
Pad (–12 dB): 21 dBV
0 dB: 9 dBV
Boost (12 dB): –3 dBV - Preamplifier Equivalent Input Noise System Gain Setting ≥+20
–115 dBV
Typical, A-weighted - Phantom Power
+48 V (7 mA maximum)
+12 V (15 mA maximum) - High Pass Filter
Two-pole (12 dB per octave), cutoff
frequency selectable from 40 to 240
Hz in 20 Hz increments
RF OUTPUT
- Antenna Type
Dipole - Impedance
50 Ω - Occupied Bandwidth
< 200 kHz - Channel-to-Channel Spacing
Standard Mode: 350 kHz
High Density Mode: 125 kHz - Modulation Type
Shure Axient Digital Propietary - Power
2 mW, 10 mW, 35 mW
Varies by region. See Frequency Range and
Output Power Table. - Specific Absorption Rate (SAR)
<0.24 W/kg
