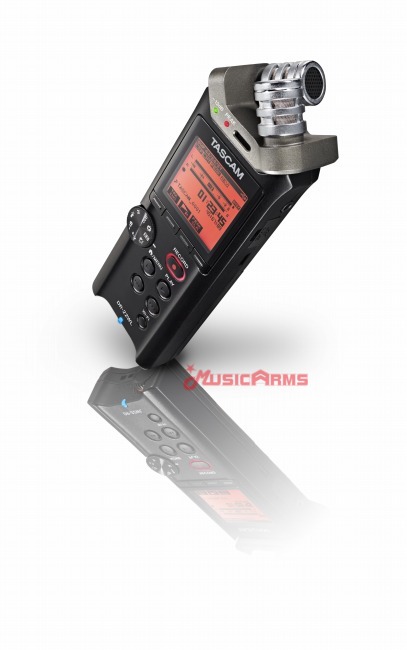

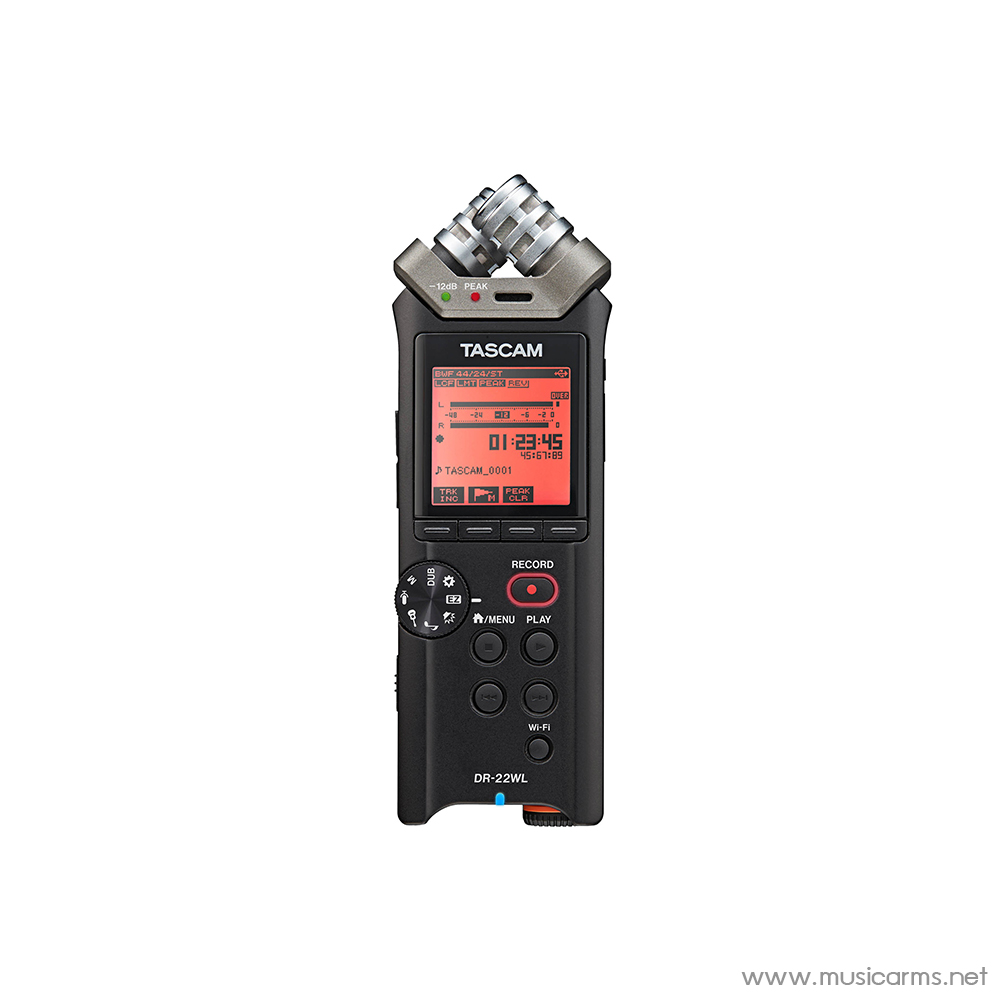

เครื่องบันทึกเสียง Tascam DR-22WL

DR-22WL

An easy-to-use Portable Recorder with all new Mics and breakthrough Wi-Fi technology

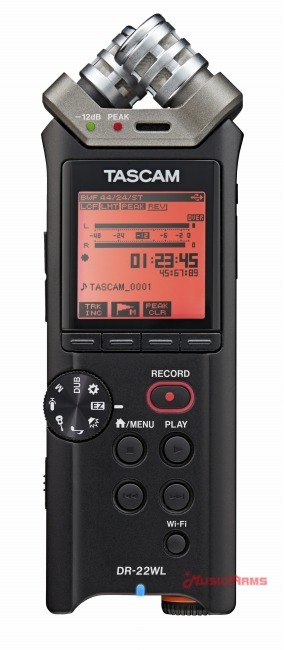

The groundbreaking DR-22WL from TASCAM is the first portable recorder to include Wi-Fi for transport control, file transfer, and audio streaming to your smartphone or PC. Other innovations like the new Scene Dial make it easier than ever to capture great-sounding recordings and share them online. A set of stereo condenser microphones is arranged in true XY pattern for ideal stereo imaging. The eight-position Scene Dial selects recording settings for typical situations, or can be set to full manual for greater control.

Included in the DR-22WL is a Wi-Fi function for controlling its transport and transferring files to a smartphone or computer. A free app for iOS and Android controls the transport and transfers files for instant upload. For a recording beginner or experienced user looking for a great-sounding, portable recorder with Wi-Fi, the DR-22WL is the only choice.

Spec description

• Recording media microSD card (64MB to 2GB),
• microSDHC card (4GB to 32GB),
• microSDXC card (48GB to 128GB)
• Recording format

WAV, BWF

• Sampling frequency 44.1k/48k/96k Hz
• Quantization bit rate 16/24-bit

MP3

• Sampling frequency 44.1k/48k Hz
• Recording bit rate 32k/64k/96k/128k/192k/256k/320k bps
• Playback bit rate 32k to 320k bps
• Number of channels 2-channels (Stereo)

EXT MIC/LINE IN

• Connector 1/8″ (3.5mm) stereo mini jack,
• Plug-in power Compatible
• Input Impendance 10kΩ or more
• Nominal Input Level –20dBV
• Maximum Input Level –4dBV

PHONES/LINE OUT

• Connector 1/8″ (3.5mm) stereo mini jack

LINE OUT

• Nominal Output Level –14dBV(10kΩ load)
• Maximum Output Level +2dBV(10kΩ load)

PHONES

• Maximum Output 20mW + 20mW (32Ω load)

USB

• Connector Micro-B type 4pin
• Format USB2.0 HIGH SPEED mass storage class

Wi-Fi

• Compliant IEEE 802.11b/g/n (2.4GHz only))
• Communication mode Simple access point (Limited AP)
• Security WPA2-PSK (WPS2.0-supported)

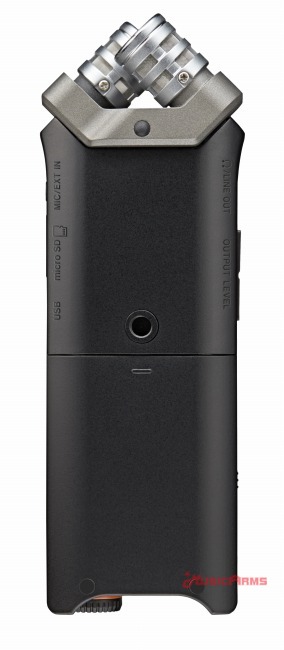

• Tripod attachment screw-hole 1/4″ Tripod attachment screw-hole
• Power Supply 2 AA batteries (alkaline or NiMH),
• USB bus power from a computer,
• AC adapter (TASCAM PS-P515U, sold separately)
• Power consumption 1.7W (maximum)
• Dimensions (W×H×D) 2.1″ × 6.1″ × 1.4″ / 52.5 x 155 x 36.6 mm
• Weight 6.0 oz. / 170 g (including batteries)
• 4.3 oz. / 123 g (excluding batteries)
• Accessories 4GB microSD card (in the unit), USB cable, 2 AA batteries for confirming operation, Owner’s Manual (including warranty)
