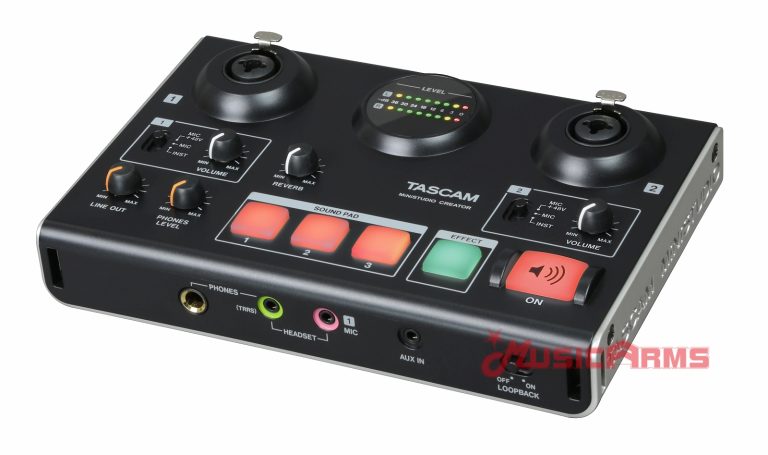

อินเตอร์เฟส TASCAM MiNiSTUDIO Creator US-42B

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Tascam

ราคา : 5,790 บาท

รุ่น :  Tascam US-42B ออดิโอ อินเตอร์เฟส Audio Interface
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
การชำระเงิน : จ่ายหน้าร้าน 11 สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

ลูกค้าองค์กร/ใบเสนอราคา
E-mail
: musicarmsproject@gmail.com

สั่งซื้อ อินเตอร์เฟส TASCAM MiNiSTUDIO Creator US-42Bผ่านline สั่งซื้อ อินเตอร์เฟส TASCAM MiNiSTUDIO Creator US-42Bผ่าน messenger

Description

Features at a glance

  • Richly equipped audio interface for personal broadcasting, live gaming, film dubbing and other situations requiring two audio inputs and processing capabilities

Audio interface features

  • Supports Windows (ASIO/WDM) and Mac (Core Audio)
  • Audio resolution up to 96 kHz / 24 bit
  • Can be connected to an iOS device using an Apple Lightning-USB camera adapter (sold separately)
  • USB Audio Compliance 2.0 for iOS connection
  • Can be powered by USB when connected to a computer
  • Operation confirmed with major DAW software including Sonar, ProTools, Cubase, Live, Studio One and GarageBand
  • Operation confirmed with major streaming and calling software

Hardware features

  • Two HDDA (High Definition Discrete Architecture) mic preamps
  • Two XLR/TRS input jacks support balanced input and can provide +48V phantom power
  • Mini-jack mic input (for a headset, for example)
  • 4-pole earphones with mic can be connected
  • Stereo mini-jack AUX input to connect portable audio players and game devices
  • Support for direct guitar input
  • Support for low-level dynamic mic input signals
  • DSP effects (equalizer, compressor and reverb)
  • Input monitoring function allows input sounds to always be heard before they are transmitted
  • Stereo analogue RCA output jacks suitable for connection to powered monitors
  • Three illuminated and velocity-sensitive pads for triggering sound snippets
  • Dedicated knob to adjust the amount of reverb effect
  • Dedicated button to switch voice effect on/off
  • Dedicated button to start transmission to the computer (“on air”)
  • Stereo mini-jack headphones output
  • 6.3-mm standard headphones output
  • Separate controls for line and headphones output volumes
  • Broadcast/Creator mode switch (live operation / production mode)

Software features

  • Dedicated software has Easy and Expert tabs for simple and quick setup or more detailed settings options
  • Trigger pad settings:
    • Audio files can be assigned by dragging and dropping
    • Velocity can be turned on/off
    • Volume is adjustable
    • Repeat can be switched on/off
    • Fade in/out can be set
    • Start time can be set
  • Mode presets for different operation scenarios (Windows only):
    • Creator: The default setting for usual operation using DAW software
    • Karaoke: A preset suitable for internet karaoke
    • Talking: A preset for talking using ordinary Internet audio/video communication applications, for example, while using the trigger pads or playing background music from an audio application
    • Gaming: Ideal setting for live streaming of game play while talking to other players in games that support voice chat
    • Multi-channel podcast: Offering six ASIO input channels, this preset can be used with DAW software where different audio signals can be recorded to separate tracks, and adjustments can be made independently, allowing you to easily create sophisticated podcast materials
  • Four instant sound presets with equalizer and compressor settings (on “Easy” page)
  • Five voice effect presets, each with one adjustable parameter
  • Five reverb presets (Hall, Room, Live, Studio, Plate) with one adjustable parameter each
  • Mic input can be switched mono/stereo (mono in Broadcast mode, stereo in Creator mode)
  • ASIO on/off switch allows mic audio to be transmitted after effect processing (Windows only)
  • Loopback function mixes the audio signal supplied by the computer with the input signal and sends it back to the computer (automatically off in Creator mode)
  • Volume adjustment for PC output sound and audio transmitted to PC
  • Transmitted signal can be switched mono/stereo
  • A ducking function can automatically lower the volume of background music, for example, in response to mic input
  • Buffer size can be set (64/128/256/512/1024, Windows only)

Other features

  • Lightweight design convenient for mobile use
  • Two strap attachment points allow commercially-available camera straps to be used

Restrictions when using with iOS devices

  • External power supply is necessary
  • This unit will not provide power to the iOS device
  • An Apple Lightning-to-USB Camera Adapter (sold separately) is required for connection
  • Sound trigger pads cannot be used
  • Effect type cannot be changed
  • Supported Operating Systems

    Windows

    • Windows 10 (October 2020, Version 20H2)
    • Windows 10 (May 2020 Update 2004)
    • Windows 10 (November 2019 Update 1909)
    • Windows 8.1
    • Windows 7

    Mac

    • macOS Big Sur (11.0)
    • macOS Catalina (10.15)
    • macOS Mojave (10.14)
    • macOS High Sierra (10.13)

    iOS

    • iOS 14 / iPadOS 14
    • iOS 13 / iPadOS 13
    • iOS 12
    • iOS 11

Specification

Specifications

Audio specifications
Sampling frequencies 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Quantization bit depth 16/24 bit
Analogue audio inputs
Mic inputs 1/2 (balanced) XLR-3-31 (1: GND, 2: HOT, 3: COLD)
6.3-mm standard TRS stereo jack (Tip: HOT, Ring: COLD, Sleeve: GND)
  Input impedance 2.4 kΩ
  Nominal input level (VOLUME at MAX) −65 dBu (0.0004 Vrms)
  Nominal input level (VOLUME at MAX) −20 dBu (0.0775 Vrms)
  Maximum gain 45 dB
Instrument inputs 1/2 (unbalanced) 6.3mm standard TS jacks (Tip: HOT, Sleeve: GND)
  Input impedance 1 MΩ or higher
  Maximum gain 45 dB
External mic inputs (can provide plug-in power) 3.5-mm 4-pole mini jack
3.5-mm mini jack
  Input impedance 5 kΩ or higher
  Maximum gain 45 dB
External input jack 3.5-mm stereo mini jack
  Input impedance 5 kΩ or higher
  Maximum input level +7.7 dBV (2.427 Vrms)
Analogue audio outputs
Line outputs (unbalanced, LINE OUT R/L) RCA pin jacks
  Output impedance 200 Ω or higher
  Nominal output level –10 dBu (0.316 Vrms)
  Maximum output level +6 dBu (1.995 Vrms)
Headphones outputs Standard 6.3-mm stereo jack
3.5-mm 4-pole mini jack
3.5-mm stereo mini jack
  Maximum output power 15 mW + 15 mW or higher (THD+N 0.1% or less, 32 Ω)
Other inputs and outputs
USB 4-pin USB B-type
  Transfer rate USB 2.0 Hi-speed (480 Mbit/s)
Power supply (DC IN 5V) USB Micro B type
Audio performance
Mic preamp EIN (equivalent input noise) −120 dBu or less (150 Ω termination, VOLUME at MAX)
Frequency response (IN 1 / IN 2 to LINE OUT/headphones output (6.3-mm stereo jack))
  44.1/48 kHz 20 Hz: +0/−1 dB (JEITA)
20 kHz: +0/−1 dB (JEITA)
20 kHz: +0 /−3 dB (headphones output, JEITA)
  88.2/96 kHz 20 Hz: +0/−1 dB (JEITA)
40 kHz: +0/−1 dB (JEITA)
40 kHz: +0 /−3 dB (headphones output, JEITA)
S/N ratio 100 dB or higher (IN 1 / IN 2 to LINE OUT, VOLUME at MIN, JEITA)
Distortion 0.005 % or less (IN 1 / IN 2 to LINE OUT, 1 kHz sine wave, nominal input level, maximum output level, JEITA)
Crosstalk attenuation 95 dB or more (IN 1 / IN 2 to LINE OUT, 1 kHz sine wave, JEITA)
Operation requirements
Windows
  Computer hardware requirements Windows-compatible computer with a USB 2.0 (or higher) port
  CPU/processor speed 2 GHz or faster dual core processor (x86)
  Memory 2 GB or more
  Supported audio driver ASIO 2.0, WDM
Mac
  Computer hardware requirements Mac with a USB 2.0 (or higher) port
  CPU/processor speed 2 GHz or faster dual core processor
  Memory 2 GB or more
  Supported audio driver Core Audio
Power supply and other specifications
Power supply
  Used with a computer USB bus power
  Used with an iOS device USB power adapter (that can supply 5 V and a current of at least 700 mA)1
External battery pack (that can supply 5 V and a current of at least 700 mA)2
1 We strongly recommend using the USB power adapter included with the iPad/iPhone. No USB power adapter is included with an iPod Touch. To use it with an iPod Touch, purchase a genuine Apple USB power adapter (that can supply 5 V and a current of at least 700 mA) separately.
2 We strongly recommend using  external battery pack. If using another external battery pack or mobile battery, purchase one that can supply 5 V and a current of at least 700 mA.
Power consumption 2.5 W
Dimensions (H × W × D, without protrusions) 40 mm × 200 mm × 130 mm
Weight 500 g
Operating temperature range 5–35 °C
