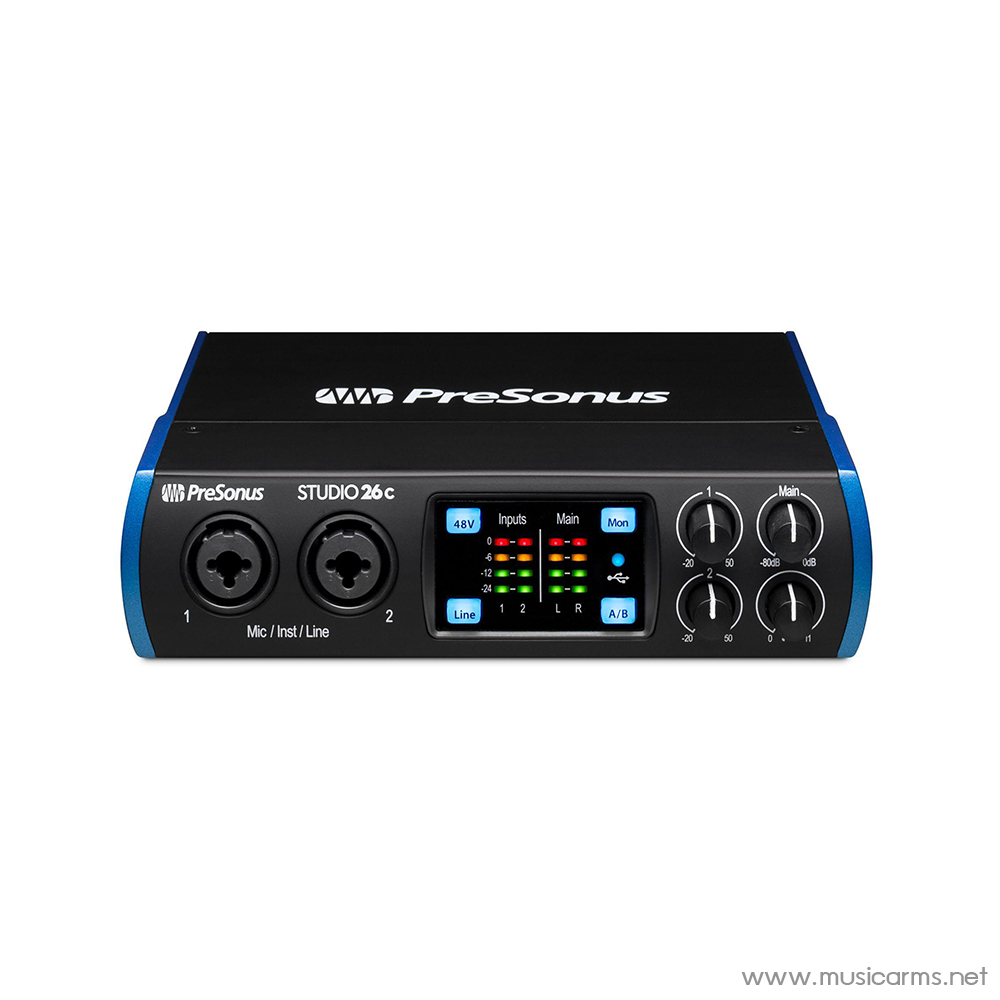

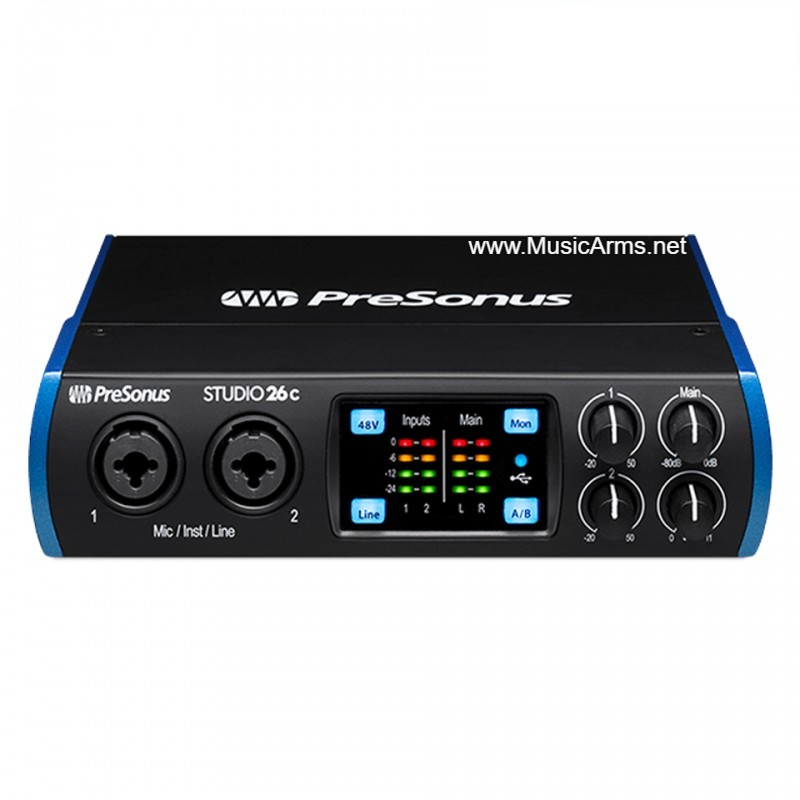

ออดิโออินเตอร์เฟส PreSonus Studio 26C

Studio 26c

Professional tools. Professional results.

Created with the needs of DJs and electronic musicians in mind, the Studio 26c delivers excellent audio quality with professional metering and flexible monitoring options. With two of PreSonus’ pristine XMAX-L mic preamps for recording vocals and custom samples; both MIDI I/O and line inputs for your favorite synths; plus professional input and output metering so you can keep track of your recording and performance levels, the Studio 26c delivers amazing sound quality in a rugged, compact form factor. A complete recording studio right out of the box, the Studio 26c audio interface comes with a complimentary license of PreSonus’ award-winning Studio One® Artist music production software, so you can get creating right away.

World-class recording software included.

Seamlessly integrated with the included PreSonus Studio One Artist music production software, the Studio 26c interface works with virtually all macOS and Windows recording software. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools or hemmed in with track limitations. Need a new loop or sample for your latest production? Studio One lets you shop, audition, and purchase new content right from your production environment. And when you’re ready for more features, you can purchase add-ons or even an upgrade to Studio One Professional to add mastering, Mix Engine FX, and much more.

Superior sound.

The Studio 26c operates at up to 192 kHz for ultra-high-definition recording and mixing. High-quality converters on every input and output and PreSonus’ professional-grade XMAX-L mic preamps enable you to capture complex musical harmonics smoothly and naturally, with no audible distortion. XMAX-L mic preamps are designed to perform optimally on bus-powered audio interfaces, allowing you to take great sound with you wherever you record.

Stress-free recording.

Professional tools make any job easier. That’s why we included professional input and output metering on the Studio 26c, allowing you to keep an eye on your input and mix levels when you’re recording by yourself. An easy to use direct monitor control blends the analog input signals with playback from your computer, simplifying monitoring. Two pairs of outputs afford two different stereo mixes. The Cue A/B button allows you to toggle between each mix while listening in on headphones, great for live performance and studio alike.

Wherever sound is made.

Whether you’re just getting into music production or looking to upgrade your DJ rig, the Studio 26c will give you clear, clean, ultra-high-def sound in a bus-powered, rugged unit. While it’s a perfect companion for any recording software, the Studio 26c and included Studio One Artist provide you with a complete, affordable recording solution that will make you sound great.

Make your own magic.

At PreSonus, we want to make sure that our audio interfaces come with everything you need to craft your own mesmerizing spells in the studio. That’s why we include Studio One Artist with every audio interface product we make. But here in Louisiana, we have a word: lagniappe. It means “a little something extra,” and it’s in that spirit that we also include the Studio Magic Suite of software with our audio interface products.

The 2020 Studio Magic is a major step up from the 2019 edition, and includes Ableton Live Lite, tutorials from Melodics, 6 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats… all unlocked for use inside Studio One Artist with a retail value of over $1000 (US).

Features

Input/Output

• Simultaneous I/O up to 2 inputs/4 outputs
• 2 mic/instrument/line inputs with XMAX-L mic preamps
• 2 balanced ¼” TRS main outputs
• DC coupled for sending control voltages*
• 2 balanced ¼” TRS line outputs for monitor mixing
• DC coupled for sending control voltages*
• 1 stereo headphone output
• MIDI In/Out
• 1 USB-C™ compatible 2.0 port
• USB-C™ to USB-C™ and USB-C™ to USB-A cables included for compatibility with most computers

Meters, Controls, and Features

• Direct monitoring
• Cue mix A/B (for headphone output)
• Front-panel level controls for main outputs
• True +48V phantom power for condenser microphones (global)
• 4 ladder-style LED level meters (2 input, 2 main output)

Integrated Software

• Studio One Artist®
• Studio Magic Plug-in Suite

Digital

• USB-C™ compatible port (USB 2.0)
• 24-bit resolution
• 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates

Physical

• Road-rugged construction with all-metal chassis and metal knobs
• USB bus-powered

Technical Specifications

General

• Sample Rates 44.1, 48, 88.2, 96, 176.4, or 192 kHz
• Converter Resolution 24 bit
• Converter Dynamic Range 114 dB
• Converter Dynamic Range 114 dB

Microphone Inputs

• Maximum Level +4.5 dBu (balanced, min gain)
• Gain Range 70 dB
• Frequency Response 20 Hz – 20 kHz (±0.1 dB, min gain, 48 kHz)
• Dynamic Range 110 dB (A-wtd, min gain)
• THD + N 0.004% (1 kHz, -1 dBFS, unity gain)
• EIN -125 dBu (max gain, 150Ω, A-wtd)
• Input Impedance 1.6 kΩ
• Phantom Power +48 VDC (10 mA total)

Line Inputs

• Maximum Level +19.5 dBu (balanced, min gain)
• Gain Range 70 dB
• Frequency Response 20 Hz – 20 kHz (±0.1 dB, min gain, 48 kHz)
• Dynamic Range 110 dB (A-wtd, min gain)
• THD + N 0.007% (1 kHz, -1 dBFS, min gain)
• Input Impedance 10 kΩ

Instrument Inputs

• Maximum Level +14 dBu (unbalanced, min gain)
• Gain Range 70 dB
• Frequency Response 20 Hz – 20 kHz (±0.15 dB, 48 kHz, min gain)
• Dynamic Range 110 dB (A-wtd, min gain)
• THD + N 0.008% (1 kHz, -1 dBFS, min gain)
• Input Impedance 1 MΩ

Line Outputs (Mains)

• Type ¼” TRS Female, DC Coupled*
• Maximum Level +10 dBu (balanced)
• Frequency Response 20 Hz – 20 kHz (±0.1 dB, unity gain, 48 kHz)
• Dynamic Range 108 dB (A-wtd)
• THD + N 0.0015% (1 kHz, -1 dBFS)

Line Outputs (3/4)

• Type ¼” TRS Female, DC Coupled*
• Maximum Level +10 dBu (balanced)
• Frequency Response 20 Hz – 20 kHz (±0.1dB, unity gain, 48 kHz)
• Dynamic Range 113 dB (A-wtd)
• THD + N 0.008% (1 kHz, -1 dBFS)

Headphone Outputs

• Maximum Power 30 mW/channel (56Ω load)
• Frequency Response 20 Hz – 20 kHz (±0.2 dB, 56Ω load, 48 kHz)
• Dynamic Range 104 dB (A-wtd, 56Ω load)
• THD + N 0.009% (1 kHz, -1 dBFS, no load)
• Impedance Working Range 32Ω to 300Ω

Physical

• Height 1.75″ (44 mm)
• Width 7″ (180 mm)
• Depth 5.5″ (144 mm)
• Weight 1.6 lbs. (0.7 kg)

Handbook

owner’s Mannual

Warrantey and service Guide

รายละเอียด ออดิโออินเตอร์เฟส PreSonus Studio 26C

• ค่า Sample Rate 44.1, 48, 88.2, 96, 176.4 หรือ 192 kHz
• ความละเอียดของตัวแปลง 24 บิต
• คอนเวอร์เตอร์ไดนามิกเรนจ์ 114 dB
• คอนเวอร์เตอร์ไดนามิกเรนจ์ 114 dB

Input ไมโครโฟน

• ระดับสูงสุด +4.5 dBu (balanced, min gain)
• ระยะ Gain 70 dB
• การตอบสนองความถี่ 20 Hz – 20 kHz (± 0.1 dB, min gain, 48 kHz)
• ไดนามิกเรนจ์ 110 dB (A-wtd, min gain)
• THD + N 0.004% (1 kHz, -1 dBFS, unity gain)
• EIN -125 dBu (อัตราขยายสูงสุด150Ω A-wtd)
• ความต้านทานอินพุต 1.6 kΩ
• Phantom Power +48 VDC (รวม 10 mA)

Input Line

• ระดับสูงสุด +19.5 dBu (balanced, min gain)
• ระยะ Gain 70 dB
• การตอบสนองความถี่ 20 Hz – 20 kHz (± 0.1 dB, min gain, 48 kHz)
• ไดนามิกเรนจ์ 110 dB (A-wtd, min gain)
• THD + N 0.007% (1 kHz, -1 dBFS, min gain)
• ความต้านทานอินพุต 10 kΩ

Input เครื่องดนตรี

• ระดับสูงสุด +14 dBu (unbalanced, min gain)
• ระยะ Gain 70 dB
• การตอบสนองความถี่ 20 Hz – 20 kHz (± 0.15 dB, 48 kHz, min gain)
• ไดนามิกเรนจ์ 110 dB (A-wtd, min gain)
• THD + N 0.008% (1 kHz, -1 dBFS, min gain)
• ความต้านทานอินพุต 1 MΩ

Output Line (Main)

• แบบ TRS Female, DC Coupled 1/4 นิ้ว
• ระดับสูงสุด +10 dBu (balanced)
• การตอบสนองความถี่ 20 Hz – 20 kHz (±0.15 dB, 48 kHz, min gain)
• ไดนามิกเรนจ์ 108 dB (A-wtd)
• THD + N 0.0015% (1 kHz, -1 dBFS)

Output Line 3/4

• แบบ TRS Female, DC Coupled 1/4 นิ้ว
• ระดับสูงสุด +10 dBu (balanced)
• การตอบสนองความถี่ 20 Hz – 20 kHz (±0.15 dB, 48 kHz, min gain)
• ไดนามิกเรนจ์ 113 dB (A-wtd)
• THD + N 0.008% (1 kHz, -1 dBFS)

Output หูฟัง

• กำลังสูงสุด 30 mW / ช่อง (โหลด56Ω)
• การตอบสนองความถี่ 20 Hz – 20 kHz (± 0.2 dB, โหลด56Ω, 48 kHz)
• ไดนามิกเรนจ์ 104 dB (A-wtd, โหลด56Ω)
• THD + N 0.009% (1 kHz, -1 dBFS, ไม่โหลด)
• ช่วงการทำงานของความต้านทาน32Ωถึง300Ω
