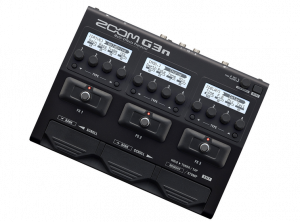

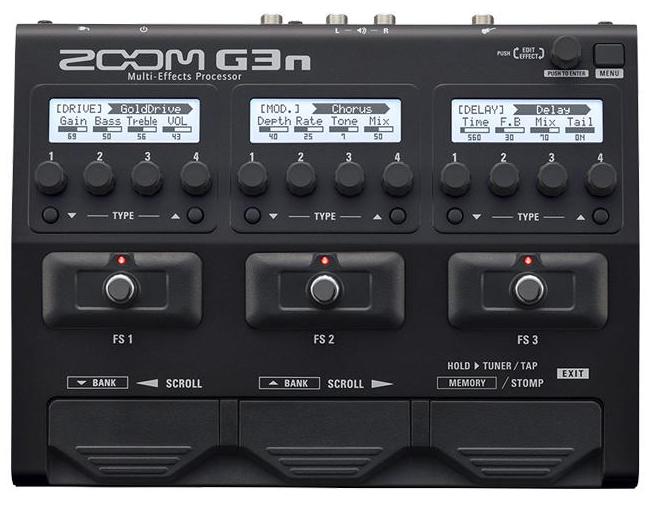

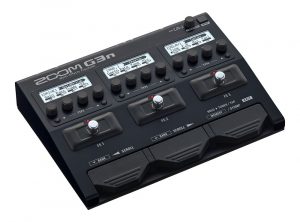

เอฟเฟคมัลติ ZOOM G3n Multi-Effects Processors

INTUITIVE MULTI-EFFECTS PROCESSORS FOR GUITARISTS

If you’re a guitarist, you know how important it is to have the freedom and flexibility to create your own sound. The Zoom G3n / G3Xn Multi-Effects Processors remove any barriers in your way.

The G3n is a genre-defying multi-effects processor that gives you the versatility you need to experiment with new sounds and playing styles. Its built-in expression pedal(G3Xn), 80 second Looper, faithful amp and cabinet emulators, and extensive selection of effects and patches make it an essential addition to any pedalboard. With the G3Xn, breaking boundaries and achieving great sound has never been easier.

FAST AND INTUITIVE EDITING

The G3n/G3Xn’s switches and knobs give you enhanced control and have the responsive, hands-on feel of a standard stompbox. The G3n/G3Xn combines three LCD displays to show whole effect-chains at a glance, making it easy to add, delete, or change the order of effects quickly. Plus, you can store up to 150 of your custom effects-chains as patches.

75 CUSTOM-CRAFTED PATCHES AND COUNTING

Recreate essential guitar tones and pioneer new territory with 75 custom-designed patches created exclusively by Zoom guitarists. Use these patches to emulate the iconic sounds of Eddie Van Halen, Jimi Hendrix, Jimmy Page, Carlos Santana, Michael Schenker, and Brian May or explore something completely brand new.

With our free ZOOM Guitar Lab software, you can look for new effects and amp/cabinet emulators, and add new, exclusive patches from our diverse and growing list of creators, including:

• Kyle Bolden (Stevie Wonder)
• Eric Struthers (Aaron Neville)
• Allen Epley (The Life and Times, Shiner)
• Richard Patrick (Filter)
• Jeff Schroeder (Smashing Pumpkins)
• Andrew Elstner (Torche, Tilts, Riddle of Steel)
• Christophe Godin (Mörglbl)
• Luca Colombo
• Vinny Valentino (Steve Smith & Vital Information)
• Kiko Loureiro (Megadeth)
• Tommy Bolan (NYC, Banzai, Warlock)
• Ozielzinho
• Paul Reid
• Ludovico Vagnone
• Chris Rosenau (Volcano Choir)
• Mark Waldrop (The Digital Age)
• Errol Cooney (Christina Aguilera, Stevie Wonder)
• Wes Geer (Korn, hed PE)
• Adam Hawley (Joss Stone)
• Chuck Loeb (Fourplay)
• Dan Spack (Volcano Choir)
• Craig Wedren (Shudder To Think)

FEATURES AT A GLANCE

• EFFECT TYPES: 80 (70 DSP effects, 5 amp emulators, 5 cabinet emulators)
• NUMBER OF SIMULTANEOUS EFFECTS: 7
• NUMBER OF USER BANKS/PATCHES: 150
• SAMPLING FREQUENCY: 44.1 kHz
• A/D CONVERSION: 24-bit with 128x oversampling
• D/A CONVERSION: 24-bit with 128x oversampling
• SIGNAL PROCESSING: 32-bit
• FREQUENCY CHARACTERISTICS: 20 – 20 kHz +1 dB, -3 dB (10 kΩ load)
• DISPLAY: 128 x 32 dot-matrix LCD (x3)
• INPUT: Standard monaural phone jack Rated input level: -20 dBu Input impedance (line): 470 kΩ
• AUX IN: Stereo mini jack (3.5 mm) Rated input level: -10 dBu Input impedance (line) :
• 10 kΩ

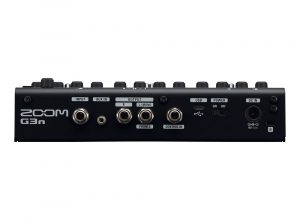

• OUTPUT R: Standard monaural phone jack
• OUTPUT R, MAXIMUM OUTPUT LEVEL: Line +5 dBm (with output load impedance of 10 kΩ or more)
• L/MONO/PHONE: Standard stereo phone jack (combined line/headphone)
• L/MONO/PHONE, MAXIMUM OUTPUT LEVEL: Line +5 dBm (with output load impedance of 10 kΩ or more) Headphones 15 mW + 15 mW (into 32 Ω load)
  Additional Specifications
• EQUIVALENT INPUT NOISE: -119 dBu
• NOISE FLOOR (RESIDUAL NOISE): -100 dBu
• POWER: AC adapter DC9V (center minus plug), 500 mA (ZOOM AD-16)
• USB: USB MIDI, USB Micro-B
• DIMENSIONS: 181 mm (D) X 318 mm (W) X 64 mm (H) 7.13″ (D) X 12.52″ (W) X 2.52″ (H)
• WEIGHT: 1.84 kg / 4.0 lbs
