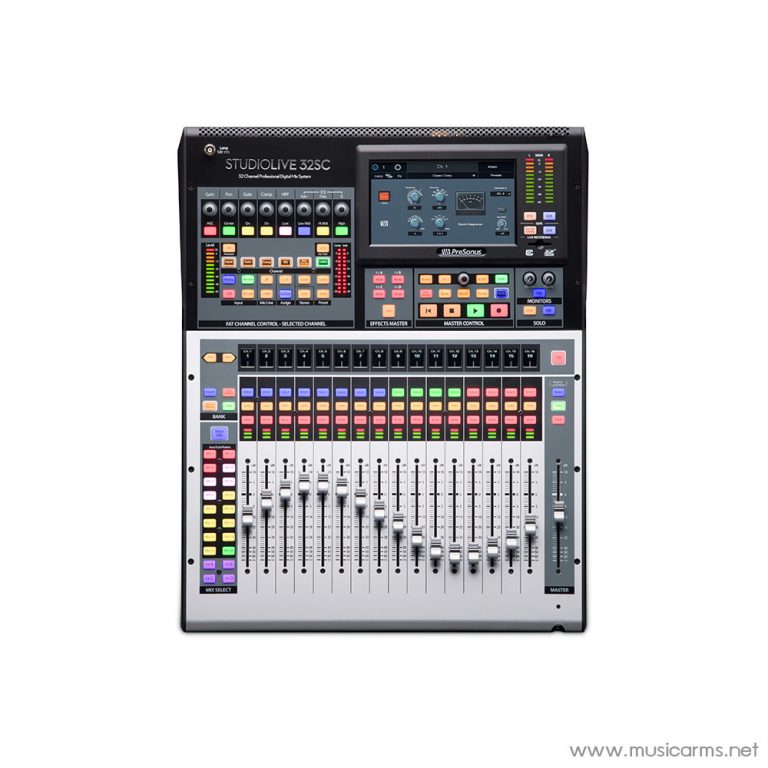

PreSonus StudioLive 32SC ดิจิตอลมิกเซอร์

StudioLive 32SC

Small digital mixer. Big power.

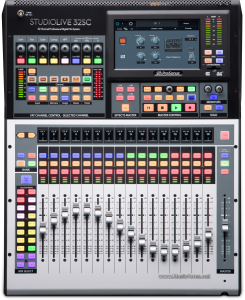

The StudioLive 32SC is a compact, rack-mountable 32-channel digital mixer that can be quickly and easily scaled for 16-, 24-, and 32-channel applications. Don’t let the road-ready size fool you; the StudioLive 32SC sports a dual-core PreSonus FLEX DSP Engine powering 40 mixing channels, 26 mix buses, and 286 simultaneous processors—including 4 stereo reverberation systems and Fat Channel plug-in models on every input channel and mix bus. With 128 (64×64) channels of USB recording and AVB network audio I/O, flexible routing options, and studio-grade audio quality, the StudioLive 32SC provides all the tools you need—whether you’re building your dream studio or putting together a pro touring rig.

The scalable digital mixer.

The StudioLive 32SC digital mixer and the complete PreSonus® StudioLive Series III ecosystem of AVB networking products allow you to create a system that is truly customized for your needs. Connect NSB-series stage boxes to add remote analog inputs and outputs wherever they’re required and complete your 32-channel, 16-bus StudioLive 32SC. Add EarMix 16M personal monitor mixers to give your musicians their own customizable 16-channel monitor mixes. Multiple StudioLive Series III digital mixers can be networked, allowing you to route audio to and from any device on the audio network thanks to the flexibility of Digital Patching on your StudioLive 32SC digital mixer and in UC Surface remote mixer software.

Superior sound.

We built our reputation designing great-sounding analog circuits for critical studio recording environments, and we put all of that experience into designing the StudioLive 32SC digital mixer. In 1995, PreSonus patented digital control over analog circuits with our first studio product. Building on this legacy, we created a separate digital volume-control circuit ahead of our lauded analog XMAX mic preamp design, providing the convenience of digital recall without sacrificing fidelity. This allows the StudioLive 32SC mic preamps to be remote-controlled with UC Surface software or Studio One®, and when you load a StudioLive 32SC mixer scene, the mic preamp trim values can also be recalled along with the other settings.

The mobile music recording studio.

PreSonus Capture® recording software is an intuitive multitrack recording application with a fully integrated Virtual Soundcheck mode that runs directly on your StudioLive 32SC digital mixer or on your Mac or Windows computer. Record all 32 channels plus a stereo mix of your choosing via USB, to an SD Card, or both for the ultimate redundant live recording rig. StudioLive mix scenes can be stored with your recordings to speed up virtual soundchecks. Best of all, Capture sessions open natively in Studio One with the entire StudioLive mix scene re-created in the Studio One console, complete with fader levels, Fat Channel settings, mutes, solos, and more. No other multitrack software makes recording as fast, simple, and hassle-free so you can focus on mixing the show.

The best music recording software… included.

Studio One revolutionized music recording, making common mixing and production tasks as easy as drag-and-drop. Tight integration with StudioLive 32SC digital mixers allows you to control preamp levels and more right from the Studio One software console. Press the DAW button on your StudioLive 32SC, and your Studio One controls are right under your fingertips on your digital mixer. Studio One control can be toggled on and off, allowing you to quickly switch between your live mix and your production mix with the press of a button. Studio One Artist is included with the StudioLive 32SC, so you can start recording right out of the box.

Remote control your digital mixer from anywhere—on any device.

PreSonus StudioLive Series III digital mixers are tightly integrated with an entire suite of state-of-the-art software. Mix wirelessly using UC Surface touch-control software for macOS®, Windows, iPad® and Android™. Control your monitor mixes with QMix®-UC for iPhone®, iPod® touch, and Android devices. Whether you’re adjusting monitor mixes on stage, moving around the room to dial in your mix, or using your mobile device as a second screen for your StudioLive 32SC digital mixer, remotely controlling your mix from anywhere just got easier.

The bus that takes you everywhere.

Everyone has a unique mixing style, so PreSonus designed the StudioLive 32SC to be configured to work the way you like to mix. The 16 FlexMixes in the StudioLive 32SC digital mixer can be individually configured to function as aux buses, subgroups, or matrix mixes. Four designated effects buses provide a total of 24 mix buses plus an independent solo bus and the main mix. We also provided 24 DCAs so you can more easily and flexibly control groups of channels. Inputs and buses can be freely routed internally, out to your AVB network, and over the USB bus, allowing you to customize your StudioLive 32SC to fit your needs—even when those needs change.

The digital mixer built to record music.

With 128 (64×64) channels of recording over USB, you can record every input channel and bus on your StudioLive 32SC for the ultimate recording rig. Each channel can independently access its analog input or its dedicated digital return from your computer. Six pre-installed vintage EQ and classic compressor Fat Channel plug-in models can be used onboard your mixer as well as within Studio One. And you also get Fat Channel Collection Vol. 1… which includes 15 additional vintage-modeled EQs and Compressors—a $149 (USD) value if purchased separately. Fat Channel plug-ins can be inserted on every input channel and output bus, giving you extensive, studio-style processing while mixing and recording.

A complete networked solution.

StudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance each other, these products are at the forefront of AVB networking technology. The StudioLive 32SC’s integrated AVB networking allows you to expand your mixer as your needs grow. Add NSB-series stage boxes to add analog inputs and outputs. Route audio to EarMix 16M personal monitor mixers for customized mixes on stage. With powerful plug-in processing, advanced recording features, and flexible mix buses, the StudioLive 32SC is the best digital mixer for mobile live sound and recording music.

Features

• Powered by the new dual-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
• 40 input-channel digital mixer with 17 touch-sensitive motorized faders
• 16 local digitally controlled XMAX mic/line inputs
• 16 digital channels (AVB, USB, or SD)
• 2 balanced stereo aux inputs
• 1 stereo tape input (RCA, USB, AVB or SD)
• 4 FLEX FX returns
• 1 Talkback
• 26 mix buses
• 16 FlexMixes (Aux, Subgroup, Matrix)
• 4 dedicated FLEX FX buses
• 4 dedicated subgroups
• Stereo Main bus
• 286 simultaneous processors
• HPF
• Gate / Expander
• Compressor with Fat Channel plug-in models
• 4-band/6-band parametric EQ with Fat Channel plug-in models
• Limiter
• 31-band Graphic EQ
• 4 FLEX FX slots featuring legendary classic reverb emulations and delays
• State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
• FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
• 24 DCAs to control groups of channels
• 128-channel (64×64) recording over USB
• Onboard multi-channel SD recorder (34×34) with true Virtual Soundcheck mode
• AVB Networking onboard (64×64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
• User Profiles for managing multiple operators with custom permissions
• Per channel digital patching from any analog, AVB, USB, or SD Card source
• DAW Control
• Advanced Studio One control integration
• MCU emulation mode optimized for Logic
• HUI emulation mode optimized for ProTools
• Remote control every mix function from your computer, iPad, or Android tablet with UC Surface (included)
• Put your musicians’ monitor mix under their fingers with QMix-UC (included) for iOS or Android
• Capture 3.0 multitrack software included
• Automated Virtual Soundcheck
• Store StudioLive mix scenes with your audio
• Advanced Studio One integration (Studio One Artist Included)
• XMAX mic preamp control from Studio One
• Control Fat Channel parameters from Studio One mixing console
• Fits in a standard 19-inch rack with optional rack mount kit

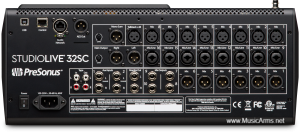

Technical Specifications

Mi crophone preamplifier

• Input Type
• XLR Female, balanced
• Frequency Response to Main Output (at unity gain)  20-20 kHz, ± 0.5 dBu
• Input Impedance  1 kΩ
• THD to Main Output  <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
• S / N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)  94 dB
• Common Mode Rejection Ratio (1 kHz at unity gain)  65 dB
• Gain Control Range (± 1 dB)  0 dB to +60 dB
• Maximum Input Level (unity gain)  +12 dBu
• Phantom Power (± 2 VDC)  48 VDC, switchable per channel

Line Inputs

• grade  ¼ “TRS Female, balanced
• Frequency Response to Main Output (at unity gain)  20-20 kHz, ± 0.5 dBu
• Input Impedance  10 kΩ
• THD to Main Output  <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
• S / N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)  94 dB
• Maximum Input Level  +18 dBu

Tape Inputs

• grade  RCA Female, unbalanced (stereo pair)
• Maximum Input Level  +12 dBu, ± 0.5 dBu

XLR Outputs

• grade  XLR Male, balanced
• Maximum Output Level  +24 dBu, ± 0.5 dBu
• Output Impedance  100Ω

Line Outputs

• grade  ¼ “TRS Female, balanced
• Maximum Output Level  + 18 dBu, ± 0.5 dBu
• Output Impedance  100Ω

Tape Outputs

• grade  RCA Female, unbalanced (stereo pair)
• Maximum Output Level  + 18 dBu, ± 0.5 dBu
• Output Impedance  100Ω

Headphone Output

• grade  ¼ “TRS Female, active stereo
• Maximum Output  100 mW / ch. @ 60Ω load
• Frequency Response  20 Hz – 20 kHz (± 0.5 dB)
• THD + N  0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
• S / N ratio  96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

System Crosstalk

• Input to Output   -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
• Adjacent Channels   -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)

Digital Audio and Control

• ADC Dynamic Range  115 dB (A-wtd, 48 kHz)
• DAC Dynamic Range  115 dB (A-wtd, 48 kHz)
• USB Recording Port  USB 2.0, Type-B
• AES / EBU output   XLR Male
• Network Control Port   RJ-45
• AVB Audio Network Port  Locking XLR Ethernet
• Internal Processing  32-bit, fl oating point
• Sampling rate   48 kHz, 44.1 kHz
• A / D / A Bit Depth  24
• Reference Level for 0 dBFS   +18 dBu
• Total System Latency   1.9 ms (local routing, analog in-analog out, all processing active)

Clock

• jitter   <20 ps RMS (20 Hz – 20 kHz)
• Jitter Attenuation  > 60 dB (1 ns in, 1 ps out)

Power / Environmental

• Connector   IEC
• Input-Voltage Range   90 to 230 VAC (± 10%)
• Power Requirements (continuous)   85W
• Recommended Ambient Operating Temperature   0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit

Physical

• height  6.51” (165.36 mm)
• Width   17.59” (446.66 mm)
• Depth   22.97” (583.48 mm)
• Weight   23.15 lbs. (10.5 kg)

Software Reference Manual

Owner’s Manual

Manual

ปรีแอมป์ไมโครโฟน

• Input แบบ XLR ตัวเมีย Balance
• การตอบสนองความถี่ต่อเอาต์พุตหลัก (ที่ unity gain) 20-20 kHz, ± 0.5 dBu
• ความต้านทานอินพุต 1 kΩ
• THD ไปยังเอาต์พุตหลัก <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
  S / N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)  94 dB
  Common Mod
• อัตราส่วนโหมด Rejection (1 kHz ที่ unity gain) 65 dB
• ระยะ Gain (± 1 dB) 0 dB ถึง +60 dB
• ระดับอินพุตสูงสุด (unity gain)  +12 dBu
• Phantom Power (± 2 VDC) 48 VDC สลับได้ต่อช่องสัญญาณ

Input Line

• แบบ TRS ตัวเมีย 1/4 นิ้ว balanced
• การตอบสนองความถี่ต่อเอาต์พุตหลัก (ที่ unity gain) 20-20 kHz, ± 0.5 dBu
• ความต้านทานอินพุต 10 kΩ
• THD ไปยังเอาต์พุตหลัก <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
• อัตราส่วน S / N ต่อเอาต์พุตหลัก (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)  94 dB
• ระดับอินพุตสูงสุด +18 dBu

Input Tape

• แบบ RCA ตัวเมีย unbalanced
• ระดับอินพุตสูงสุด +12 dBu, ± 0.5 dBu

Output XLR

• แบบ XLR ตัวผู้ balanced
• ระดับเอาต์พุตสูงสุด +24 dBu, ± 0.5 dBu
• ความต้านทานขาออก100Ω

Output Line

• แบบ TRS ตัวเมีย 1/4 นิ้ว balanced
• ระดับเอาต์พุตสูงสุด + 18 dBu, ± 0.5 dBu
• ความต้านทานขาออก100Ω

Output Tape

• แบบ RCA ตัวเมีย unbalanced
• ระดับเอาต์พุตสูงสุด + 18 dBu, ± 0.5 dBu
• ความต้านทานขาออก100Ω

Output หูฟัง

• แบบ TRS ตัวเมีย 1/4 นิ้ว active stereo
• เอาต์พุตสูงสุด 100 mW / ch. โหลด @ 60Ω
• การตอบสนองความถี่ 20 Hz – 20 kHz (± 0.5 dB)
• THD + N 0.01%, 1 kHz, อัตราขยายสูงสุด, 20 Hz BW, unwtd
• อัตราส่วน S / N 96 dB, 1 kHz, อัตราขยายสูงสุด, 20 Hz BW, unwtd

Crosstalk ของระบบ

• อินพุตไปยังเอาต์พุต -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, untd)
• ช่องสัญญาณที่อยู่ติดกัน -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, untd)

เสียงดิจิตอลและการควบคุม

• ADC ไดนามิกเรนจ์ 115 dB (A-wtd, 48 kHz)
• DAC ไดนามิกเรนจ์ 115 dB (A-wtd, 48 kHz)
• พอร์ตการบันทึก USB USB 2.0, Type-B
• AES / EBU เอาต์พุต XLR ตัวผู้
• พอร์ตควบคุมเครือข่าย RJ-45
• AVB Audio Network Port Locking XLR Ethernet
• Internal Processing 32-bit
• อัตราการสุ่มตัวอย่าง 48 kHz, 44.1 kHz
• A / D / A Bit Depth 24
• ระดับอ้างอิงสำหรับ 0 dBFS +18 dBu
• เวลาแฝงของระบบทั้งหมด 1.9 ms (การกำหนดเส้นทางในพื้นที่, อนาล็อกในอนาล็อก, การประมวลผลทั้งหมดทำงานอยู่)
