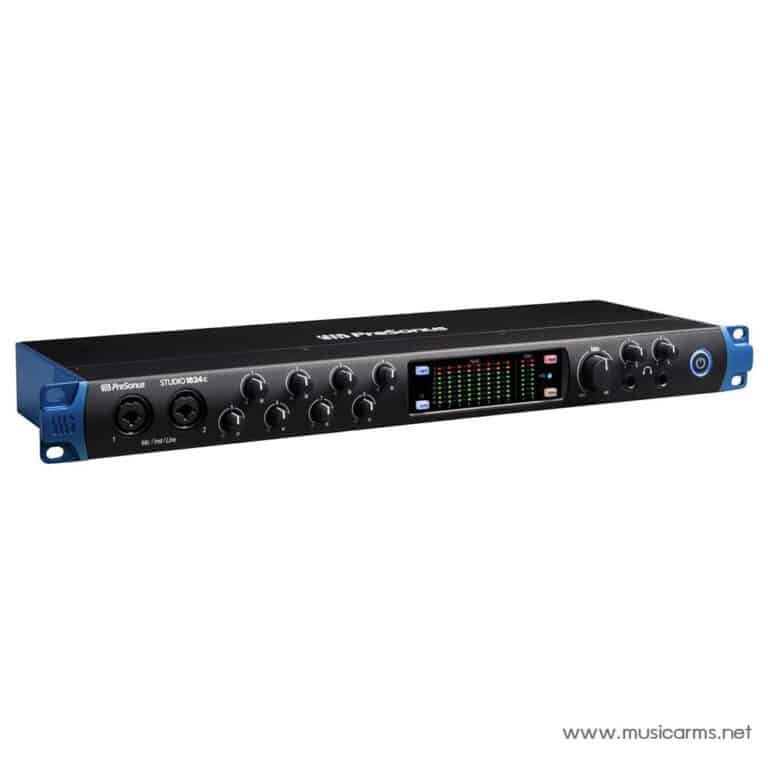

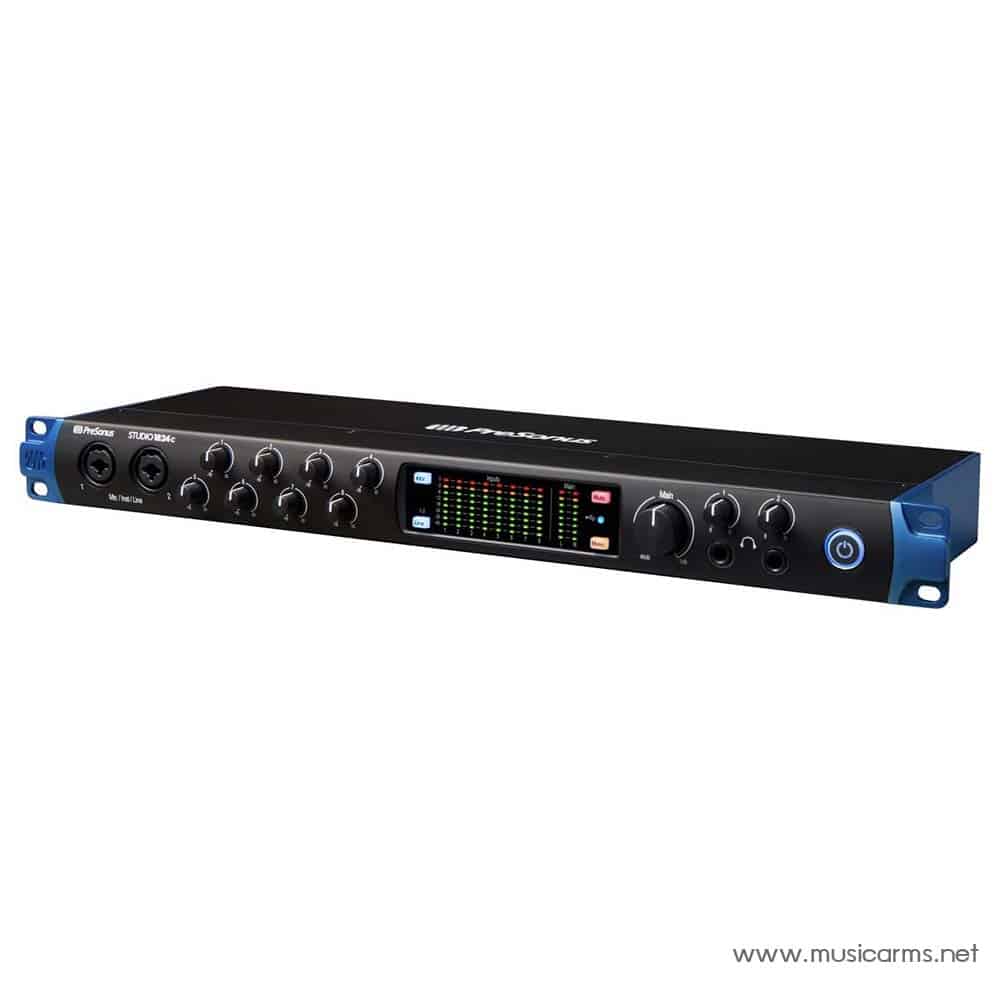

PreSonus Studio 1824C Audio Interface

Studio 1824c

Record the entire band.

PreSonus was a pioneer in high-channel-count audio interfaces and has spent the last 20 years listening to our customers and creating the best audio interfaces for recording large sessions. The Studio 1824c provides amazing sound-quality with eight of PreSonus’ lauded XMAX analog mic preamps onboard and pristine 24-bit 192 kHz conversion. Add two low-noise instrument preamps, balanced line level inputs, and an ADAT input to add 8 more channels whenever you need them and you have an audio interface ready to record just about any session. A complete, all-in-one recording package, Studio One® Artist music production software is included with the Studio 1824c, offering unlimited tracking with tight control-room integration.

Superior sound.

The Studio 1824c operates at up to 192 kHz for ultra-high-definition recording and mixing. High-quality converters on every input and output and eight of PreSonus’ professional-grade XMAX mic preamps enable you to capture complex musical harmonics smoothly and naturally, with no audible distortion. XMAX mic preamps are known the world over for their ability to deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound so you’ll hear every breath, transient, and detail in your recordings.

World-class recording software included.

Seamlessly integrated with the included PreSonus UC Surface control software for macOS®, Windows®, iPad®, and Android™ tablet and Studio One Artist music production software, the Studio 1824c audio interface works with virtually all macOS and Windows recording software. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools. Need a new loop or sample for your latest production? Studio One lets you shop, audition, and purchase new content right from your production environment!

Stress-free recording.

Professional tools make any job easier. That’s why we included professional input and output metering on the Studio 1824c, allowing you to keep an eye on your input and mix levels while running your session. Easy-to-use DSP monitor mixing lets you create four discrete near-zero latency monitor mixes, enough for even the largest ensembles. All line-level outputs are also DC coupled, enabling them to send control voltages. Front-panel Mute, Mono, and level controls let you keep a hold of your main mix.

Wherever the sound takes you.

Whether you’re upgrading your studio or building a new space for your band to record, the Studio 1824c has you covered with superior mic preamps, expandable inputs, and powerful, easy-to-use onboard monitor mixing to give you the world-class results you want. While it’s a perfect companion for any recording software, the Studio 1824c and included Studio One Artist provide you with a complete, affordable recording solution that will make you sound great.

Make your own magic.

At PreSonus, we want to make sure that our audio interfaces come with everything you need to craft your own mesmerizing spells in the studio. That’s why we include Studio One Artist with every audio interface product we make. But here in Louisiana, we have a word: lagniappe. It means “a little something extra,” and it’s in that spirit that we also include the Studio Magic Suite of software with our audio interface products.

The 2020 Studio Magic is a major step up from the 2019 edition, and includes Ableton Live Lite, tutorials from Melodics, 6 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats… all unlocked for use inside Studio One Artist with a retail value of over $1000 (US).

Features

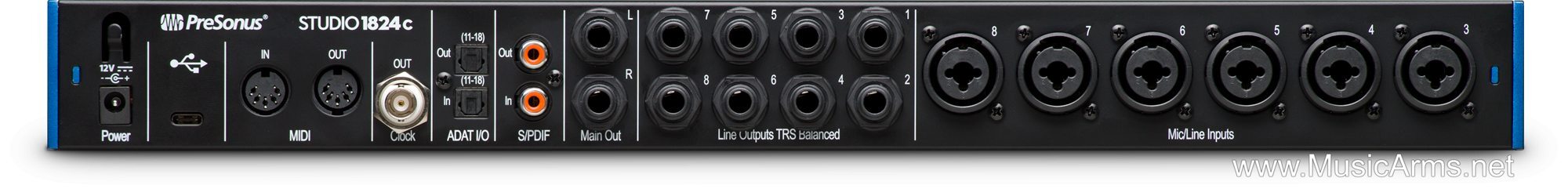

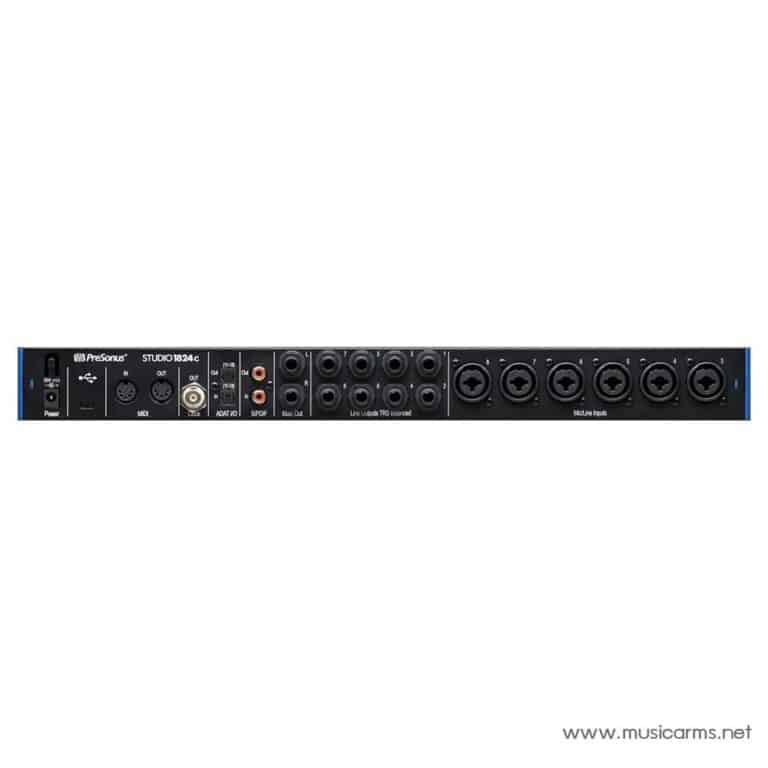

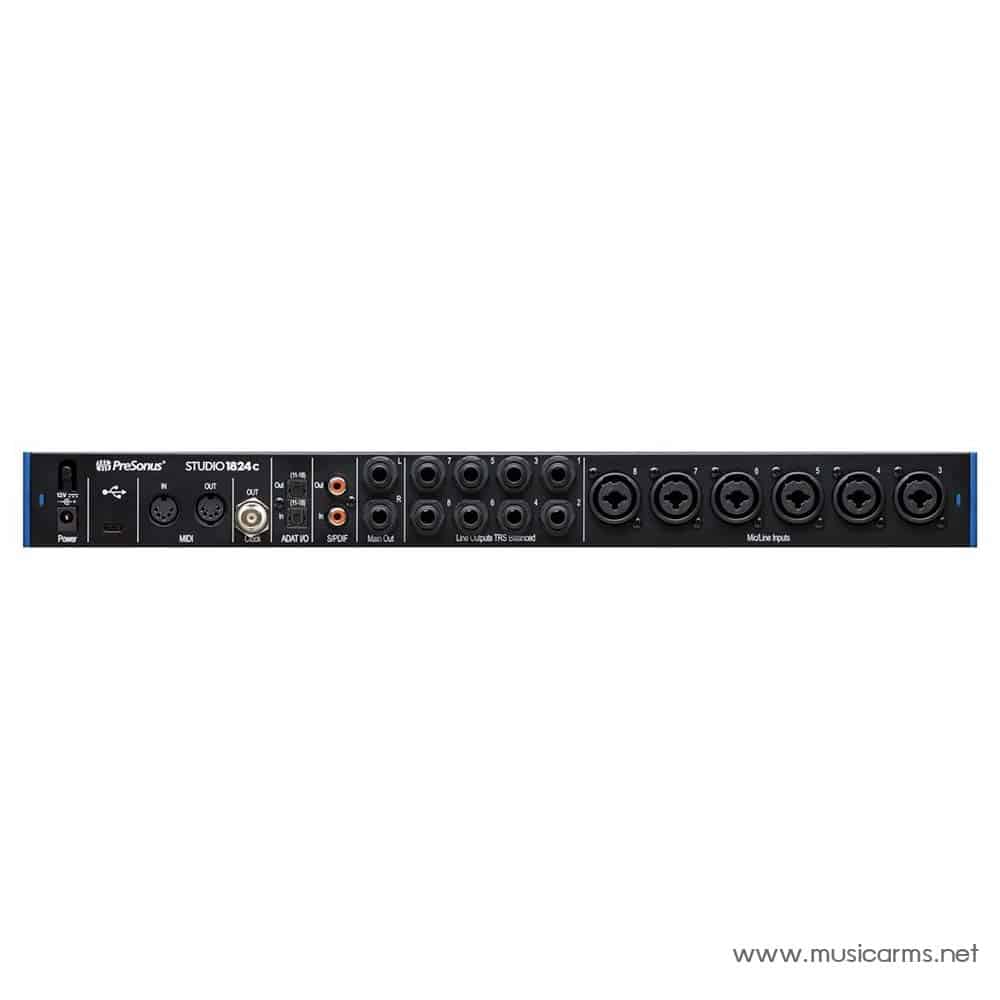

Input/Output

• Up to 18 inputs/20 outputs simultaneously (8×8 at 192 kHz)
• 2 mic/instrument/line inputs with XMAX Class A mic preamps
• 6 mic/line inputs with XMAX Class A mic preamps
• 8 channels of ADAT Optical I/O (4 channels at 96 kHz)
• 2 balanced ¼” TRS main outputs
• DC coupled for sending control voltages
• 8 balanced ¼” TRS line outputs for monitor mixing
• DC coupled for sending control voltages
• 2 stereo headphone outputs with individual level controls
• MIDI In/Out
• Stereo S/PDIF digital I/O
• 1 USB-C™ compatible 2.0 port
• USB-C™ to USB-C™ and USB-C™ to USB-A cables included for compatibility with most computers
• BNC word clock output

Integrated Software

• Studio One® Artist for Mac® and Windows®
• UC Surface control software for Mac, Windows, iPad®, and Android™
  Studio Magic Plug-in Suite

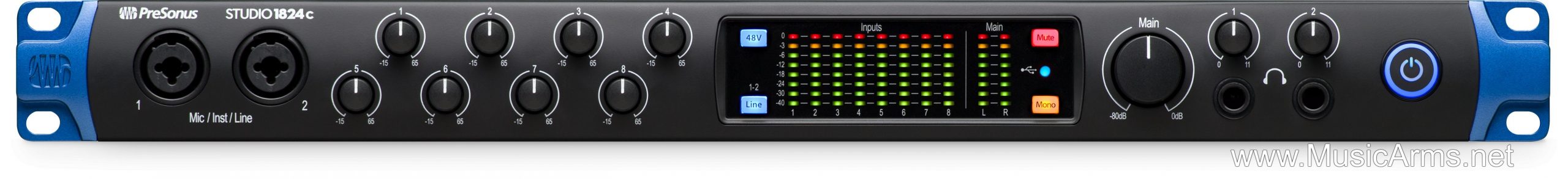

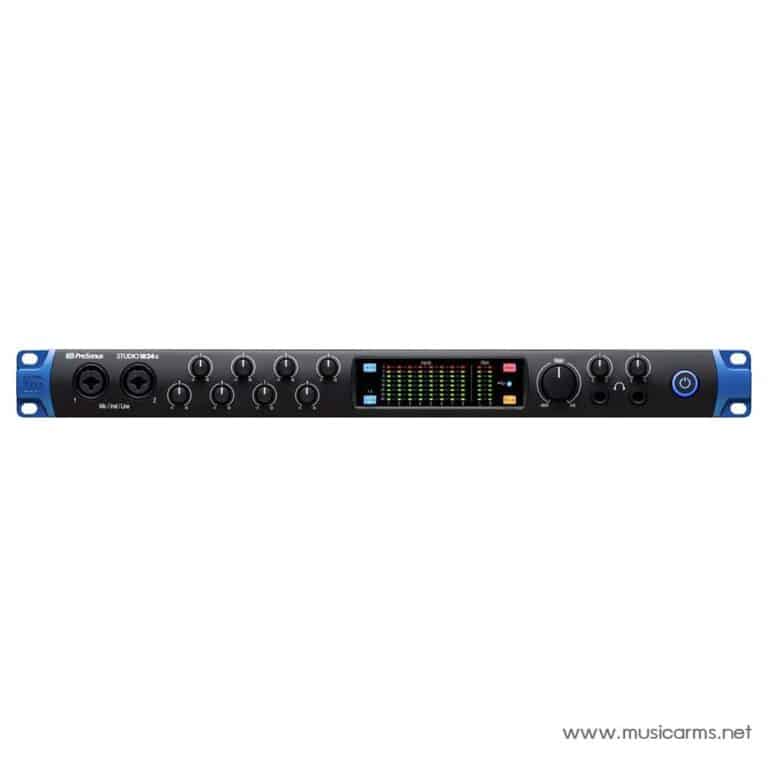

Meters, Controls, and Features

• 18×8 onboard DSP monitor mixer
• Front-panel level controls for main outputs
• Mono and Mute buttons for the main outputs
• True +48V phantom power for condenser microphones (global)
• 10 ladder-style 8-LED level meters (8 input, 2 main output)

Digital

• USB-C™ compatible port (USB 2.0)
• 24-bit resolution
• 44.1, 48, 88.2, 96, 176.4, and 192 kHz sampling rates

Physical

• 1U rack-mountable
• Road-rugged construction with all-metal chassis and metal knobs

Technical Specifications

General

• Sample Rates 44.1, 48, 88.2, 96, 176.4, 192 kHz
• Converter Resolution 24-bit
• Converter Dynamic Range 114 dB
• Converter Dynamic Range 114 dB

Microphone Inputs

• Maximum Level +16 dBu, min gain
• Gain Range 80 dB
• Frequency Response 20 Hz – 20 kHz (unity gain)
• Dynamic Range 110 dB (A-wtd, min gain)
• THD + N 0.005% (1 kHz, 0dBu, unity gain)
• EIN -128 dBu (A-wtd, 20 kHz BW, Rs=150Ω, max gain)
• Input Impedance 1400Ω
• Phantom Power 48V (>10 mA per channel)

Line Inputs

• Maximum Level +21 dBu (balanced, min gain)
• Gain Range 40 dB
• Frequency Response 20 Hz-20 kHz (unity gain)
• Dynamic Range 112 dB (A-wtd, min gain)
• THD + N 0.005% (1 kHz, +18 dBu, min gain)
• Input Impedance 10 kΩ

Instrument Inputs

• Maximum Level +15 dBu (unbalanced, min gain)
• Gain Range 80 dB
• Frequency Response 20 Hz – 20 kHz (min gain)
• Dynamic Range 112 dB (A-wtd, min gain)
• THD + N 0.020% (1 kHz, +10 dBu, min gain)
• Input Impedance 1M Ω

Main Outputs

• Type ¼” TRS female, DC Coupled
• Maximum Level +18 dBu, balanced
• Frequency Response 20Hz – 20kHz (unity gain)
• Dynamic Range 108 dB (A-wtd, unity gain)
• THD + N 0.004% (1 kHz, -1 dBFS, unity gain)

Line Outputs

• Type ¼” TRS female, DC coupled
• Maximum Level +18 dBu, balanced
• Frequency Response 20 Hz – 20 kHz
• Dynamic Range 108 dB (A-wtd, -60 dBFS)
• THD + N 0.004% (1 kHz, -1 dBFS, unity gain)

Headphone Outputs

• Maximum Power 150 mW/channel (60Ω load)
• Frequency Response 20 Hz – 20 kHz (unity gain)
• Dynamic Range 103 dB (A-weighted, 1 kHz, unity gain)
• THD + N 0.250% (1 kHz, 150 mW, unity gain)
• Impedance Working Range 32Ω to 600Ω

Physical

• Height 1.75″ (44 mm)
• Width 19″ (483 mm)
• Depth 5.5″ (140 mm)
• Weight 4.8 lbs (2.2 kg)

Handbook

owner’s Mannual

Getting start

Warrantey and service Guide

รายละเอียด ออดิโออินเตอร์เฟส PreSonus Studio 1824C EU

• ค่า Sample Rate 44.1, 48, 88.2, 96, 176.4 192 kHz
• ความละเอียดของตัวแปลง 24 บิต
• คอนเวอร์เตอร์ไดนามิกเรนจ์ 114 dB
• คอนเวอร์เตอร์ไดนามิกเรนจ์ 114 dB

Input ไมโครโฟน

• ระดับสูงสุด +16 dBu (balanced, min gain)
• ระยะ Gain 80 dB
• การตอบสนองความถี่ 20 Hz – 20 kHz (unity gain)
• ไดนามิกเรนจ์ 110 dB (A-wtd, min gain)
• THD + N 0.005% (1 kHz, 0dBu, unity gain)
• EIN -128 dBu (A-wtd, 20 kHz BW, Rs=150Ω, max gain)
• ความต้านทานอินพุต 1400 kΩ
• Phantom Power +48 VDC (> 10 mA ต่อช่อง)

Input Line

• ระดับสูงสุด +21 dBu (balanced, min gain)
• ระยะ Gain 40 dB
• การตอบสนองความถี่ 20 Hz – 20 kHz (unity gain)
• ไดนามิกเรนจ์ 112 dB (A-wtd, min gain)
• THD + N 0.005% (1 kHz, +18 dBu, min gain)
• ความต้านทานอินพุต 10 kΩ

Input เครื่องดนตรี

• ระดับสูงสุด +15 dBu (unbalanced, min gain)
• ระยะ Gain 80 dB
• การตอบสนองความถี่ 20 Hz – 20 kHz (min gain)
• ไดนามิกเรนจ์ 112 dB (A-wtd, min gain)
• THD + N 0.020% (1 kHz, +10 dBu, min gain)
• ความต้านทานอินพุต 1 MΩ

Output Main

• แบบ TRS Female, DC Coupled 1/4 นิ้ว
• ระดับสูงสุด +18 dBu (balanced)
• การตอบสนองความถี่ 20 Hz – 20 kHz
• ไดนามิกเรนจ์ 108 dB (A-wtd, -60 dBFS)
• THD + N 0.004% (1 kHz, -1 dBFS, unity gain)

Output Line

• แบบ TRS Female, DC Coupled 1/4 นิ้ว
• ระดับสูงสุด +18 dBu (balanced)
• การตอบสนองความถี่ 20 Hz – 20 kHz
• ไดนามิกเรนจ์ 108 dB (A-wtd, -60 dBFS)
• THD + N 0.004% (1 kHz, -1 dBFS, unity gain)

Output หูฟัง

• กำลังสูงสุด 150 mW / ช่อง (โหลด60Ω)
• การตอบสนองความถี่ 20 Hz – 20 kHz (unity gain)
• ไดนามิกเรนจ์ 103 dB (A-weighted, 1 kHz, unity gain)
• THD + N 0.250% (1 kHz, 150 mW, unity gain)
• ช่วงการทำงานของความต้านทาน32Ωถึง600Ω
